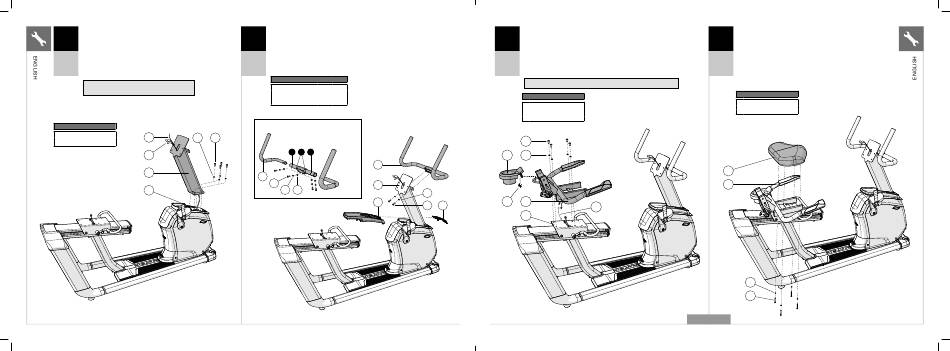

A Open HARDWARE FOR STEP 1.
1
B Carefully pull the CABLES (1) through the CONSOLE MAST (2)
using the LEAD WIRE (3) located inside the CONSOLE MAST
(2). Discard the lead wire.
C Attach the CONSOLE MAST (2) to MAIN FRAME (4) using 4
R30
BOLTS (A) and 4 SPRING WASHERS (B). Torque settings: 23.1
R50
Nm / 17 lb-ft.
Note: Be careful not to pinch any wires while
attaching the console mast.
Hardware For Step 1
Description
Qty
3
B
A
Bolt
4
B
Spring Washer
4
1
2
4
90
MXR20_AG_Bikes_r1_0_B.indd 90-91
MXR20_AG_Bikes_r1_0_B.indd 90-91
A Open HARDWARE FOR STEP 2.
2
B Slide TOP CAP REAR COVER (5) over CONSOLE MAST (2) and snap into place.
C Slide TOP CAP FRONT COVER (6) over CONSOLE MAST (2) and snap into place
D Attach HANDLEBARS (7) to CONSOLE MAST (2) using 2 BOLTS (C) and 2 SPRING
R30
WASHERS (B). Torque settings: 23.1 Nm / 17 lb-ft.
R50
Hardware For Step 2
Description
R30
R50
C
Bolt
2
6
B
Spring Washer
2
6
L
Flat Washer
0
4
R50
Y Use outside holes for XUR console
A
Z Use inside holes for all other consoles
Y
Z
Y
7
7
C
2
B
L
5
A Open HARDWARE FOR STEP 3
3
B Attach the WATER BOTTLE HOLDER (8) to the SEAT FRAME
ASSEMBLY (9) using 2 SCREWS (D).
C Attach the SEAT FRAME ASSEMBLY (9) to the SEAT SLIDE
(10) using 4 BOLTS (E) and 4 SPRING WASHERS (F). Torque
R30
settings: 23.1 Nm / 17 lb-ft.
R50
D Connect the CABLES (11).
Note: Be careful not to pinch any wires while attaching the seat frame.
Hardware For Step 3
Description
Qty
D
Screw
2
E
Bolt
4
F
Spring Washer
4
E
8
F
B
D
9
C
6
11
10
A Open HARDWARE FOR STEP 4
4
B Attach the SEAT BOTTOM (12) to the SEAT FRAME ASSEMBLY
(9) using 4 BOLTS (G) and 4 SPRING WASHERS (H). Torque
settings: 9.5 Nm / 7 lb-ft.
R30
R50
Hardware For Step 4
Description
Qty
G
Bolt
4
H
Spring Washer
4
12
9
H
G
R50 SHOWN
91
