Sensor S2
Sensoren justieren im Anschluss-
kopf
geschlossene Lage des Ventiltellers
– Sprühreiniger nicht angesteuert
HINWEIS
Rechtsdrehung der Stellschraube (1) bewegt den Sensor
nach oben, Linksdrehung nach unten!
VORSICHT
Es besteht die Gefahr des Überdrehens der Stellschraube
(1)! Die Stellschraube (1) deshalb nur mit einem max.
Drehmoment von 0,3 Nm bis an den oberen oder unte-
ren Anschlagpunkt des Sensors bewegen.
Voreinstellung
• Feststellschraube (2) lösen.
• Stellschraube (1) des
Sensors S1 drehen, bis
Leuchtdiode A am
Anschaltmodul grün
leuchtet.
• Sensor mit Stellschraube
(1) in Richtung obere
Schaltkante (4) des
Schaltfensters (3) stellen,
bis die Leuchtdiode
erlischt.
Schaltpunkt einstellen
• Stellschraube (1) nach links
drehen bis Leuchtdiode
grün leuchtet. Dann die
Stell schraube (1) eine
Umdrehung nach links
weiter drehen.
Leuchtdiode A am
Anschalt modul leuchtet
grün.
• Feststellschraube (2)
festziehen.
2015-06 · Sprühreiniger IS / Sprayer IS
S1
S2
1
2
S1
Sensor S1

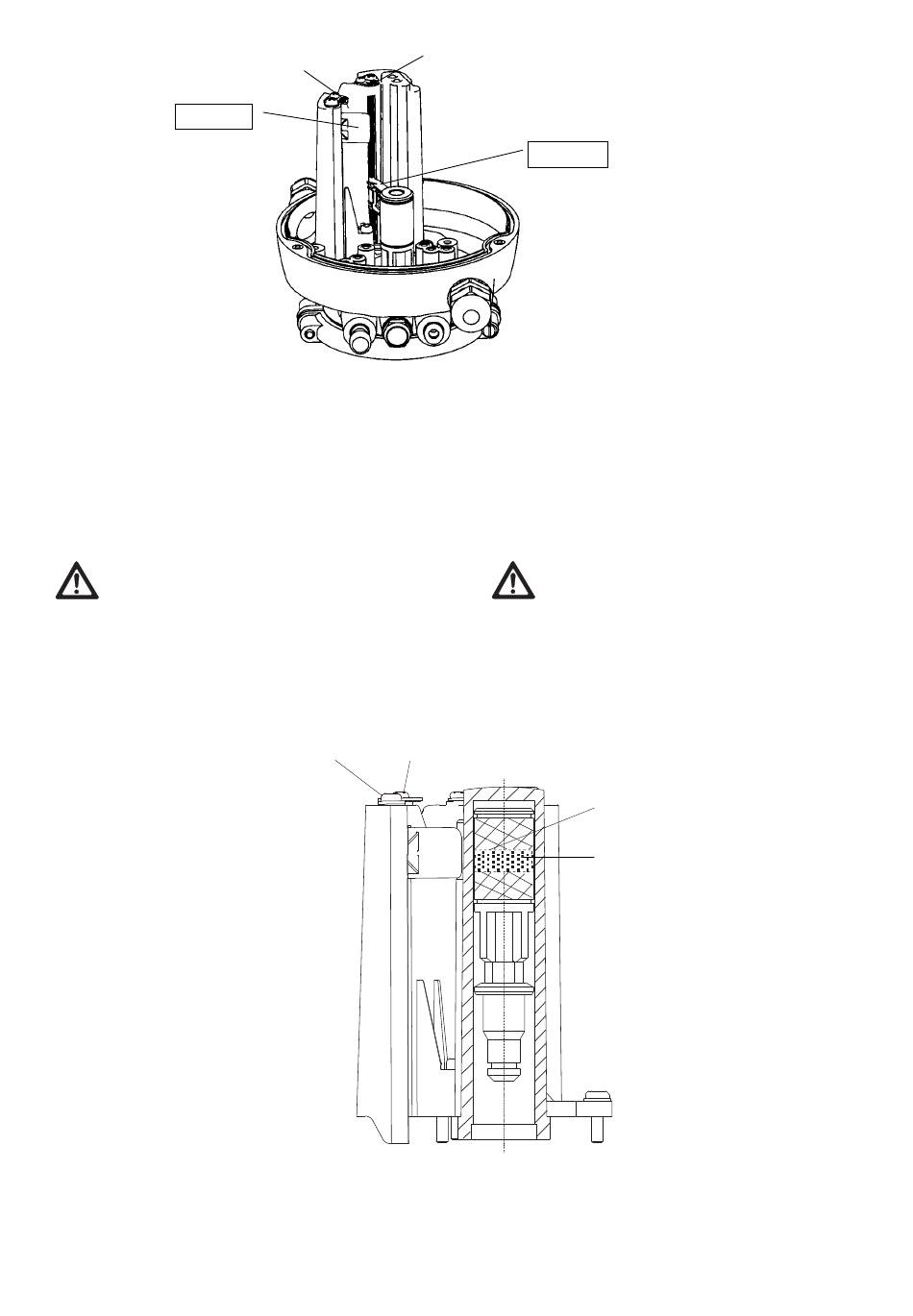

Abb.: Anschlusskopf ohne
Pneumatikblock dargestellt
Ill.:
Control module shown w.o.
pneumatic block
Adjusting the sensors in the con-
trol module
closed position of the valve disk
– Sprayer non-actuated
NOTE
Clockwise rotation of the setting screw (1) moves the
sensor upwards, anti-clockwise rotation downwards. !
CAUTION
There is a risk of overwinding the setting screw (1)!
Therefore turn the setting screw (1) with a torque of
0.3 Nm max. up to the upper or down to the lower limit
stop of the sensor.
4
3
Presetting
• Slacken the locking screw
(2).
• Turn setting screw (1) of
the sensor S1 until light
emitting diode A at the
interface module shines
green
• Move sensor using the set-
ting screw (1) in the direc-
tion of the upper switching
edge (4) of the switching
range (3) until the diode
goes out.
Setting the switch
point
• Turn the adjuster screw (1)
counterclockwise until the
LED lights up green. Then
turn the adjuster screw (1)
counterclockwise another
turn.
Light emitting diode A at
the interface module shines
green.
• Tighten the locking screw
(2).
15
