XTP501 & XTC501 Bedienungsanleitung
ANHANG A
180mm 7.09"
165mm 6.50"
155mm 6.10"
24mm 0.93"
10mm 0.39"
6mm 0.24" Max screw diameter
O
1/8" Tube fitting
25mm 1.00"
69mm 2.71"
99mm 3.89"

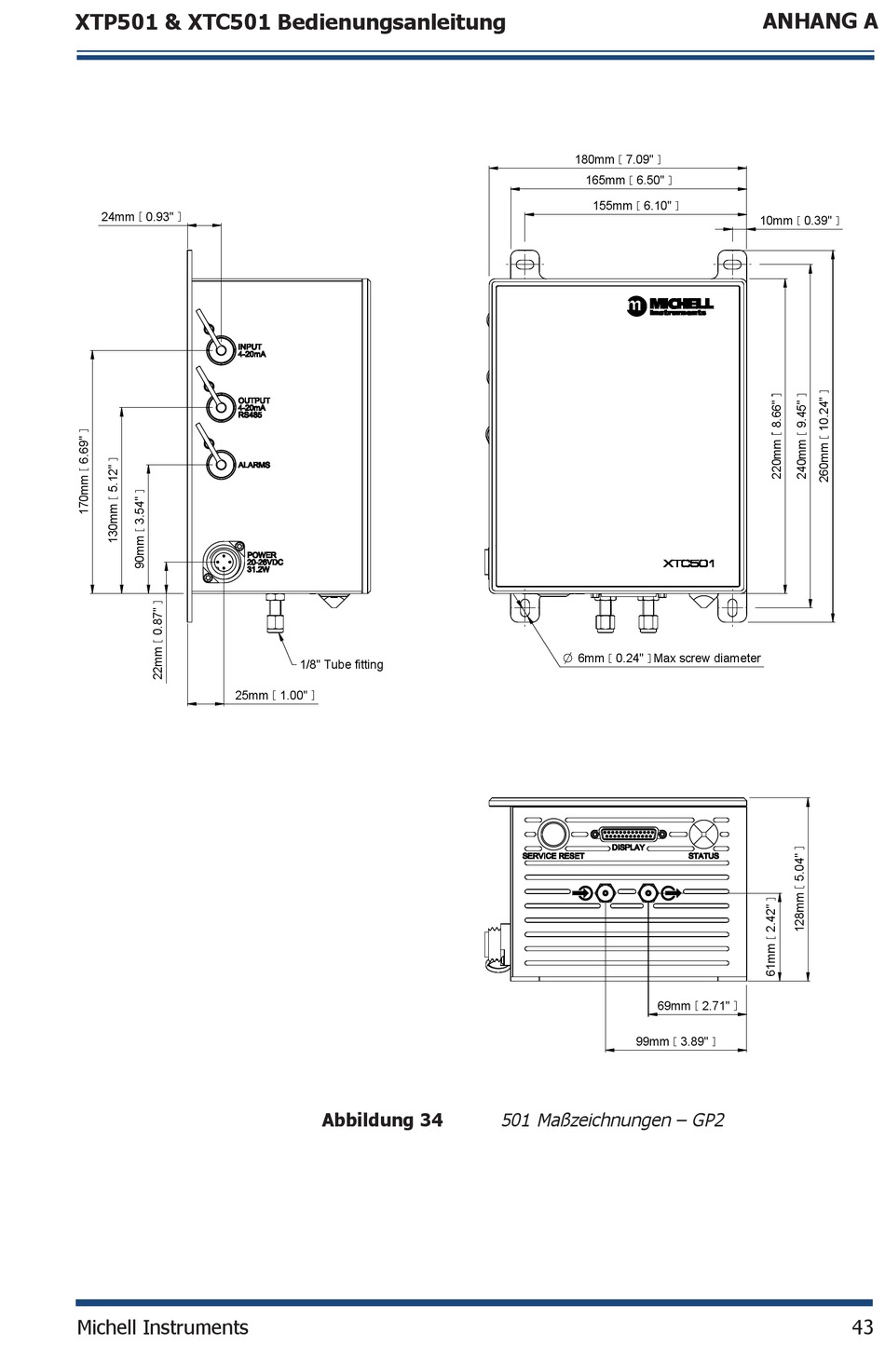

Abbildung 34
501 Maßzeichnungen – GP2
THIS DOCUMENT IS THE PROPERTY OF MICHELL
MATERIAL:
INSTRUMENTS LTD. AND MUST NOT BE COPIED
TOLERANCES & DIMENSIONS
DRAWING TITLE:
NOR DISCLOSED TO A THIRD PARTY WITHOUT
3rd ANGLE
0 DEC. PLACE: ± 0.5
THE CONSENT OF MICHELL INSTRUMENTS.
XTP501 T
PROJECTION
1 DEC. PLACE: ± 0.2
2 DEC. PLACE: ± 0.1
HOLES Ø:± 0.1
JSL
ANGLES:± 0.5°
DESCRIPTION
CREATED
APPROVED
SCALE: 1:2
DRAWING UNITS: mm
PROJECT:
7196
MICHELL INSTRUMENTS LTD. 20/07/2016 F0150
