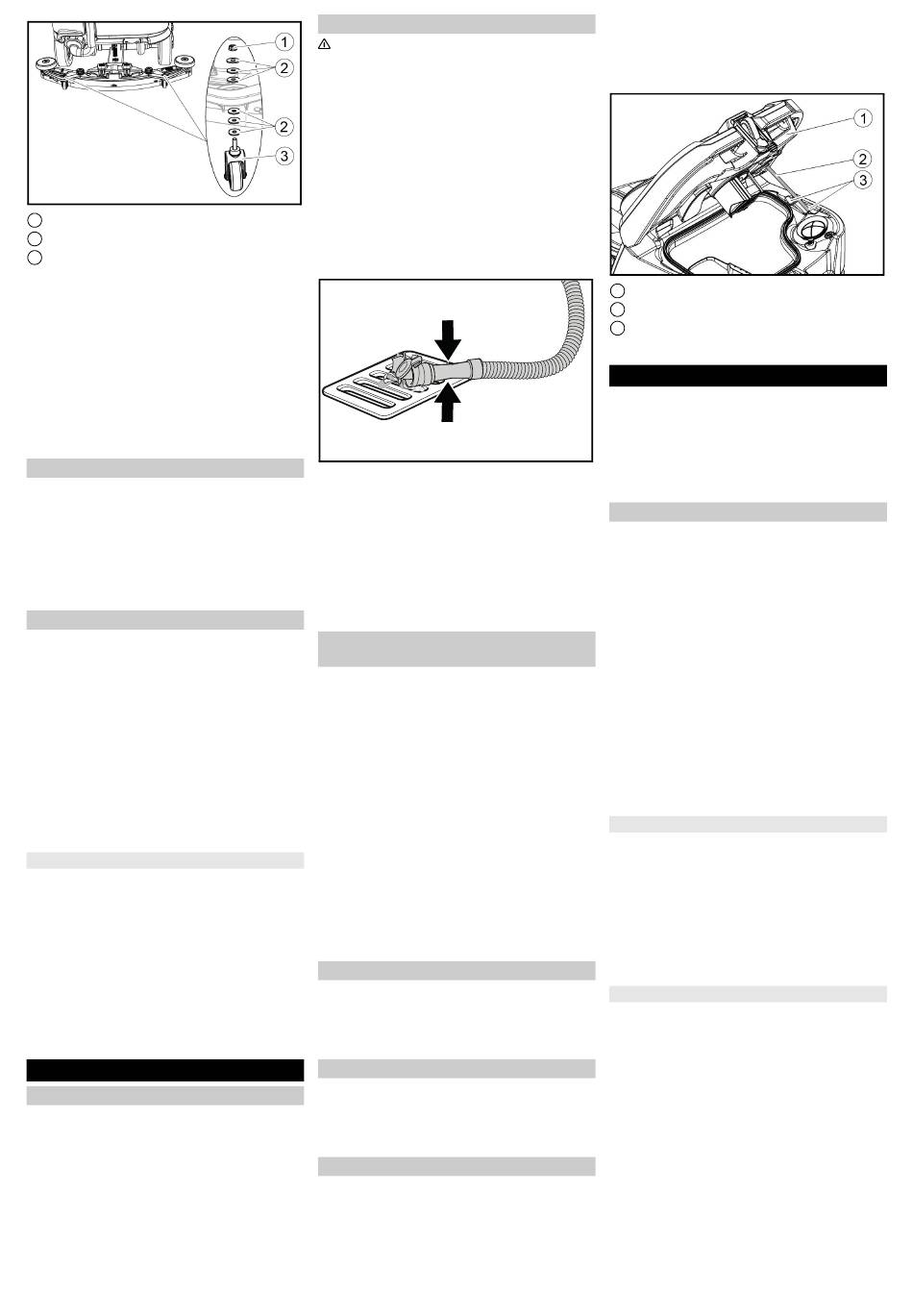

Nut
1
Washer
2
´
Spacer roller with holder
3
2. Place the desired number of washers
between the suction bar and the spacer
roller.
3. Fit the remaining unused washers above
the spacer roller.
4. Screw on the nut and tighten.
5. Repeat the entire procedure at the sec-
ond spacer roller.
Note
Set both spacer rollers to the same height.
Adjusting the squeegee blades
The squeegee blades only need to be ad-
justed on the D cleaning head.
1. Adjust the squeegee blades by turning
the setting wheel so that the squeegee
blade touches the ground.
2. Turn the adjustment wheel an additional
1 rotation down.
Cleaning
1. Sit on the seat.
2. Insert the Intelligent Key.
3. Set the safety switch to "1".
4. Set the travel direction switch to forward
travel.
5. Set the program switch to the desired
cleaning program.
6. Determine the speed with the accelera-
tor pedal.
7. Determine the travel direction with the
steering wheel.
8. Drive over the surface to be cleaned.
Side scrubbing deck (option)
The side scrubbing deck makes working
close to the edge easier.
Note
The side scrubbing deck is not active in the
polish and vacuum cleaning programmes.
1. Operate the side scrubbing deck switch.
The side scrubbing deck is activated.
2. To finish working with the side scrubbing
deck, set the side scrubbing deck switch
to "0" .

Finishing operation

Finishing cleaning
1. Set the programme switch to Drive.
2. Continue moving a short distance.
The residual water is vacuumed up.
3. Turn the key-operated switch to "OFF".
4. Remove the Intelligent Key.
5. Charge the battery if necessary.
Draining the waste water
WARNING
Improper disposal of waste water
Environmental pollution
Observe the local waste water treatment
regulations.
Note
When the waste water tank is full, the suc-
tion flow is interrupted by a float to prevent
the waste water tank from overflowing. In
this case, drain the waste water.
1. Remove the waste water drain hose
from the support and open the drain
hose cover.
2. Squeeze the end of the hose and lower
it over the disposal facility.
3. Adjust the strength of the waste water jet
by squeezing the end of the hose.
4. Rinse the waste water tank with clear
water.
5. Close the drain hose cover.
6. Press the waste water hose into the sup-
port on the device.
Waste water tank rinsing system
(option)
1. Remove the waste water drain hose
from the support and open the drain
hose cover.
2. Close the cover of the waste water tank.
3. Connect a water supply hose to the wa-
ter connection of the waste water tank
flushing system.
4. Open the water inlet and rinse the waste
water tank for about 30 seconds.
5. Repeat the rinsing process 2 to 3 times
if necessary.
6. Close the water inlet.
7. Disconnect the water supply hose from
the device.
8. Close the waste water drain hose and
press it into the support.
Empty the coarse dirt container
1. Lift the coarse dirt container and pull it
out.
2. Empty the coarse dirt container.
3. Reinstall the coarse dirt container.
Draining fresh water
1. Open the fresh water tank cap.
2. Drain the fresh water.
3. Clean the filter.
4. Fit the fresh water tank cap.
Shutting down the unit
1. Turn the key-operated switch to "OFF".
2. Remove the Intelligent Key.
3. Secure the device against rolling away.
4. Open the lid of the waste water tank and
secure it with the support so that the
English
waste water tank can dry out. To do this,
swing the support down and position the
lower end at the desired level when
swinging down the cover.
Waste water tank cap
1
Support
2
level
3
5. Charge the battery if necessary.

Grey Intelligent Key

The grey Intelligent Key grants the supervi-
sory staff extended authorizations and set-
ting options.
1. Insert the Intelligent Key.
2. Select the desired function by turning
the info button.
Transport journey
1. Set the programme switch to "Drive".
2. Press the Info button.
The following functions can be executed
out in the Transport trip menu:
● Set maximum working speed
● Show operating hours counter
● Clearing the maintenance counter
● Show software versions
● Adjust the R or D cleaning head
● Switch speed-dependent water dosage
on / off
● Setting after-running times
● Setting the language
● Key management
● Switch attachment kits on / off
● Activate factory setting
Working speed
The working speed can be limited in the
"Tempo" menu.
1. Turn the info button until "Tempo" is
shown on the display.
2. Press the Info button.
3. Turn the info button until the desired
maximum speed is displayed.
4. Press the Info button.
Resetting the maintenance counter
If maintenance work shown in the display
has been carried out, the corresponding
maintenance counter must then be reset.
1. Turn the Info button until "Maintenance
counter" is displayed.
2. Press the Info button.
The counter readings are displayed.
3. Turn the info button until the counter to
be cleared is highlighted.
4. Press the Info button.
5. Select "YES" by turning the Info button.
6. Press the Info button.
The counter is cleared.
