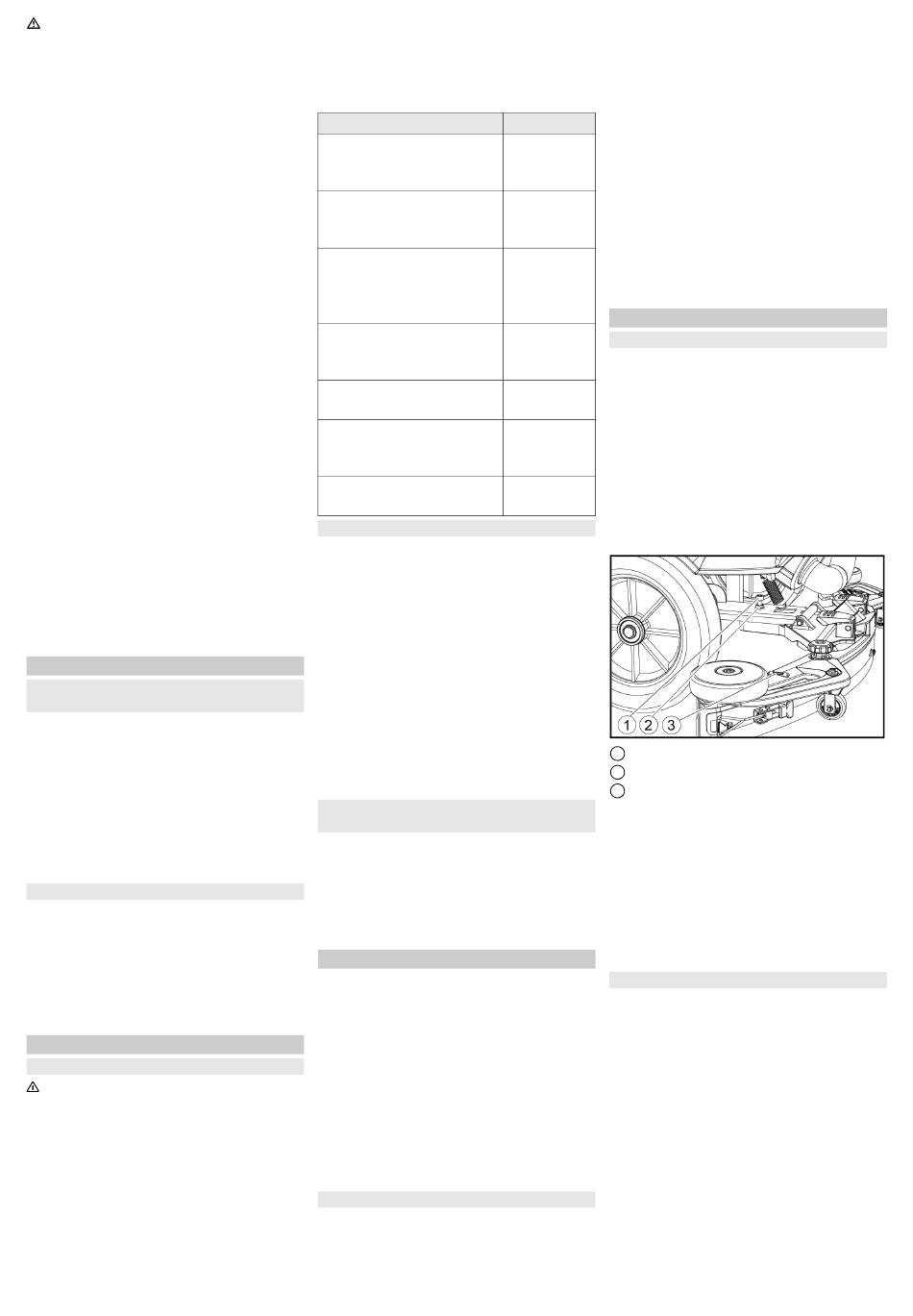

DANGER
Careless driving
Danger of tipping over
Only drive up and up gradients in the direc-
tion of travel and across the direction of
travel 10%.
Do not turn up or down gradients.
Drive slowly in corners and on wet ground.
Only drive the device on stable ground.
Note
The safety assistant supports and brakes
on inclines and during fast cornering.
Note
The travel direction can be changed while
driving. This means that very dull spots can
be polished by moving back and forth sev-
eral times.
1. Assume a seated position.
2. Insert the Intelligent Key.
3. Turn the safety switch to "1".
4. Set the programme switch to "Drive".
5. Set the direction of travel using the drive
direction button on the control panel.
6. Specify the travel speed by pressing the
accelerator pedal.
7. Release the accelerator pedal.
The device stops.
The engine is switched off in the event of an
overload. A fault message appears on the
display. If the control system overheats, the
affected power unit is switched off.
8. Allow the device to cool down for at least
15 minutes.
9. Set the program switch to "OFF", wait
briefly and set to the desired program.
Filling with fresh water
Filling with fresh water via the filling
system
1. Connect the water hose to the connec-
tion nozzle of the filling system (maxi-
mum water temperature 50 °C).
2. Open the water inlet.
3. Monitor the device, the automatic filling
system interrupts the water supply when
the fresh water tank is full.
4. Close the water inlet.
5. Remove the water hose.
Filling with fresh water
1. Open the fresh water tank cap.
2. Fill fresh water (max. 50 °C) to the lower
edge of the filling nozzle.
Note: The fresh water hose can be
clamped with the hose holder during fill-
ing.
3. Close the fresh water tank lock.
Filling with detergent
Notes on detergents
WARNING
Unsuitable detergents
Health risk, damage to the device
Use only recommended detergents. The
operator carries all increased risks relating
to operational safety and increased risk of
accidents if using other detergents.
Use only detergents free of chlorine, sol-
vents, salt and hydrofluoric acid.
24
Adhere to the safety instructions stated on
the detergent packaging.
Note
Do not use heavily foaming detergent.
Recommended detergents
Application
Maintenance cleaning of all
water-resistant floors
Maintenance cleaning of
polished hard surfaces (e.g.
granite)
Maintenance cleaning, in-
termediate cleaning and ba-
sic cleaning of industrial
floors
Maintenance cleaning and
basic cleaning of fine stone
tiles
Maintenance cleaning of
tiles in sanitary areas
Coating removal on all alka-
line-resistant floors (e.g.
PVC)
Coating removal on linole-
um floors
Filling detergent via the dosing device
Only with DOSE variant:
Detergent is added to the fresh water on
the way to the cleaning head by a dosing
device.
1. Unlock the waste water tank and pivot it
up.
2. Fill the detergent canister with deter-
gent.
3. Pivot the waste water tank forwards.
Note
A maximum of 5% detergent can be added
with the dosing device. If the dosage is
higher, the detergent must be added to the
fresh water tank.
Filling the detergent into the fresh water
tank
1. Fill the detergent into the fresh water
tank.
Note: The lid for the filling hole of the
fresh water tank can be used to measure
the detergent. It has a measuring scale
marked on the inner side.

Adjusting parameters

1. Set the program switch to the desired
cleaning program.
2. Turn the Info button until the desired pa-
rameter is displayed.
3. Press the Info button.
The adjusted value flashes.
4. Set the desired value by turning the Info
button.
5. Confirm the changed setting by pressing
the Info button or wait until the set value
is automatically accepted after 10 sec-
onds.
Yellow Intelligent Key
The yellow Intelligent Key authorizes func-
tions that are required for the cleaning task.
English
The parameters for the various cleaning
programs are preset in the device. Individ-
ual parameters can be changed depending
on the authorization of the yellow Intelligent
Key.
The display texts for parameter setting are
Detergent
largely self-explanatory.
RM 746
"FACT" parameters (only available with R
RM 756
cleaning head):
RM 780
● "Fine Clean": Low brush speed for re-
RM 755 es
moving grey film from fine stone.
● "Whisper Clean": Medium brush speed
for maintenance cleaning with reduced
noise level.
RM 69 ASF
● "Power Clean": High brush speed for
polishing, crystallizing and sweeping.
Adjusting the suction bar
RM 753
Adjusting the inclination
The inclination must be adjusted so that the
suction lips of the suction bar make even
RM 751
contact with the floor over the entire length
of the suction bar.
RM 752
1. Park the device on a surface without a
slope.
2. Turn the program switch to the "Vacu-
um" position.
RM 754
3. Drive the device a small distance for-
wards.
4. Read the spirit level.
Screw
1
Nut
2
Spirit level
3
5. Unscrew the nut.
6. Adjust the screw so that the spirit level
indicator is between the two lines.
7. Tighten the nut.
8. To check the new setting, move the de-
vice forward again a short distance. Re-
peat the adjustment process if
necessary.
9. Turn the key-operated switch to "OFF".
Adjusting the height
The height adjustment affects the bending
of the suction lips on contact with the floor.
Note
Standard setting: 3 washers above, 3
washers below the suction bar.
Uneven floor: 5 washers above, 1 washer
below the suction bar.
Very smooth floor: 1 washer above, 5
washers below the suction bar.
1. Unscrew the nuts.
