Operating instructions -- PowerMax cam unit PMU
PowerMax cam unit SN5650-PMU-0330 — SN5650-PMU-1200

15.5 Mounting instructions gas springs

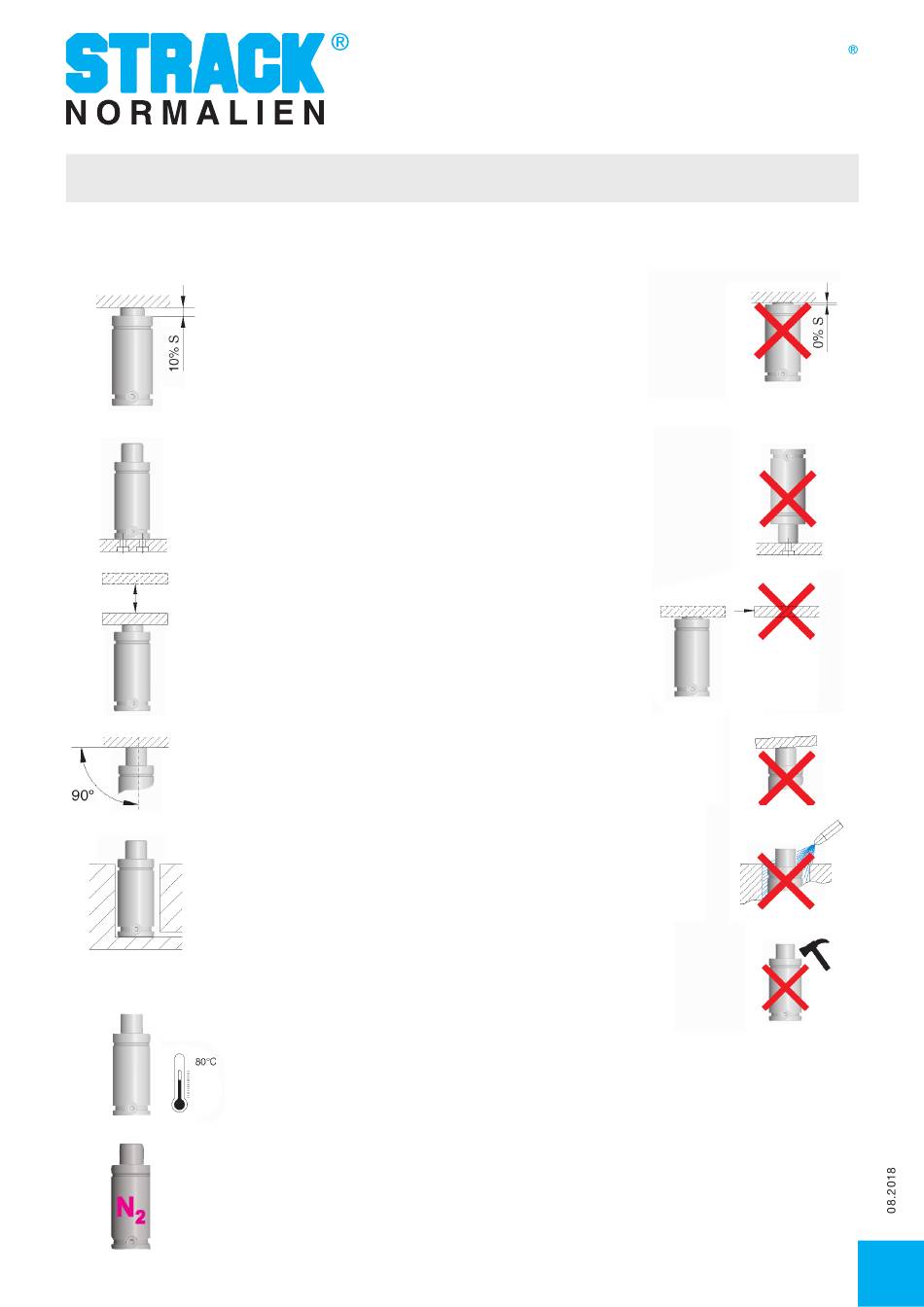

A 10 % nominal stroke reserve should be foreseen to prevent
irrepearable damage in the gas springs and serious safety hazards.
If possible fix the gas spring on the tool using the attachment holes at
the bottom of the body or assembly accesories.
Do not use threaded hole on the stem to fix the gas spring onto the
tool.
Do not install the gas spring onto the tool in such a way it makes
a free stem ejection possible. The installation of a compressed gas
spring is dangerous due to serious safety risks.
The gas spring is to work completely perpendicularly to the contact
surface. Lateral forces reduce the gas spring's service life.
Protect the gas spring from direct contact with liquid pollution:
lubricants, cleaners and so on..
Protect the gas spring against mechanical damage or blows,
especially the stem. Any imperfection may bring about a loss of
pressure.
Service temperature should not exceed 80°C.
Higher temperatures will affect the seals, reducing the gas spring's service life.
Do not excede maximum filling pressures established for each Gas spring.
Higher pressures will reduce both the gas spring service life and endanger its use.
