PowerMax cam unit SN5650-PMU-0330 — SN5650-PMU-1200

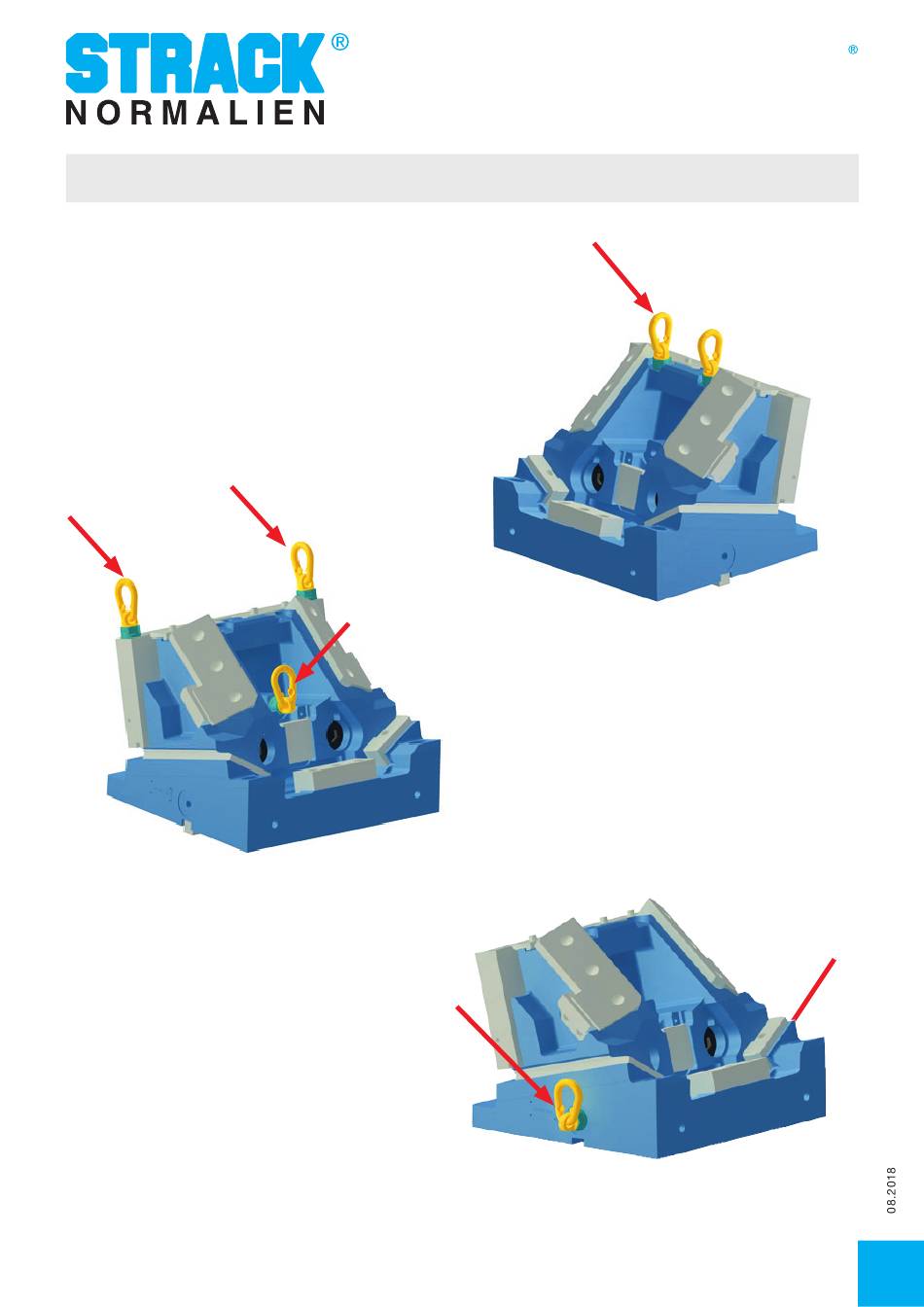

8.1 Handling with safety ring bolt (SN1594)

Beginning from the cam units 330, cam retainers and
slides can simplified be mounted together by means
of the safety ring bolt SN1594, because of the fact
that the different positions of the handling screwing
thread facilitates the mounting of the cam slide in the
slide retainer.
Mounting of the cam retainer with the cam slide
in the tool with lateral thread for the flexible
mounting and turning of the cam.
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de
By changing the position of the safety ring bolt,
the cam retainer and the cam slide can be simpler
mounted together into the tool.
