9. Dismounting of the mounting plate at cam widths 0330-1200 (only Premium)

The PREMIUM version of the PowerMax® is equipped with a demountable mounting plate, which makes
a simpler handling possible.
The high-precision plate can be dismounted easily to be able to carry out further machining.

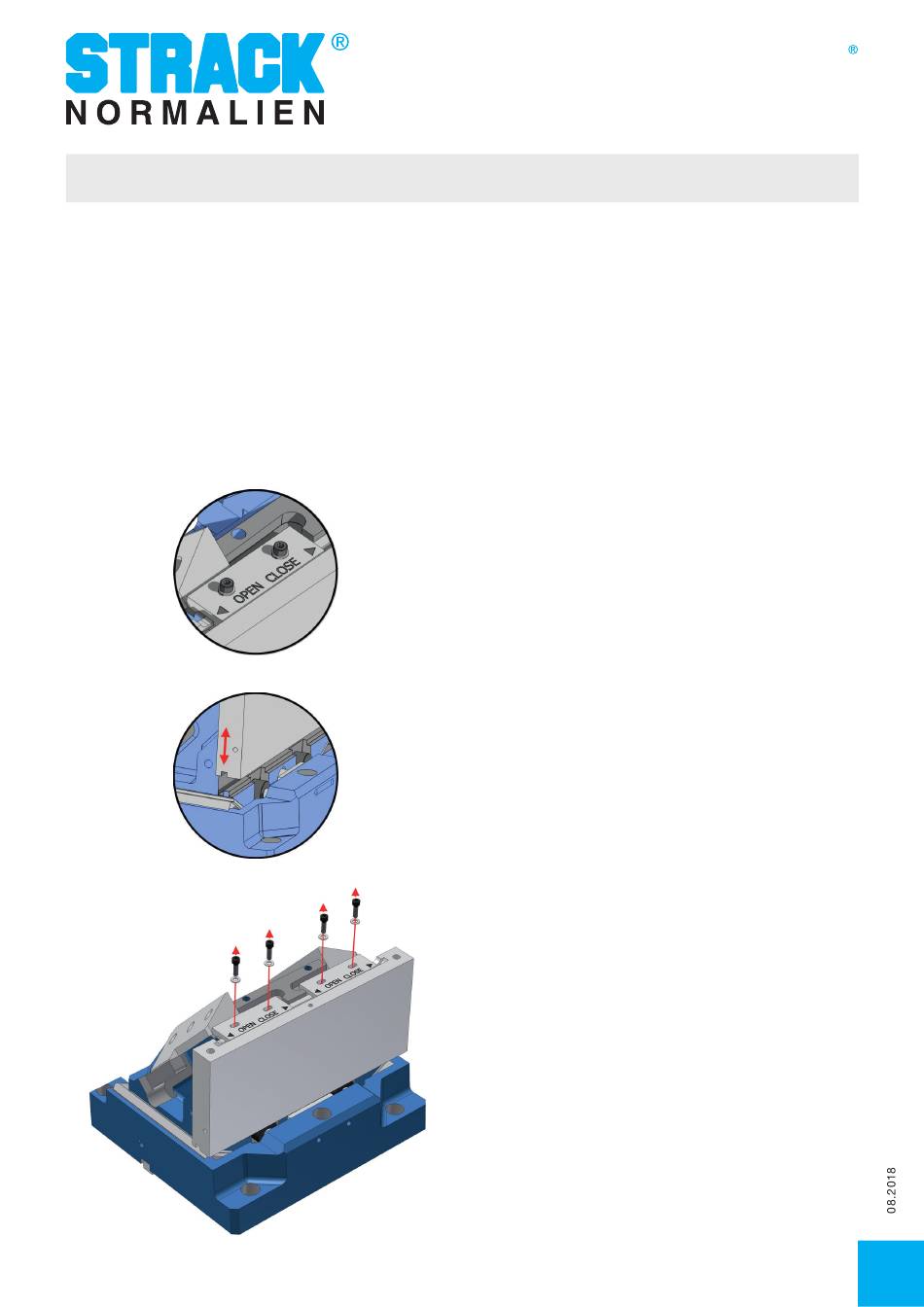

picture 1
picture 2
picture 3
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de
I
Operating instructions -- PowerMax cam unit PMU
The mounting plate is not screwed with the cam
slide to keep the complete working surface free
of screw holes. The plate is fastened form-closed
manner by a fitting groove (picture 2) and one
respectively two clamps over a clamping cone (picture 1).
The mounting plate is centered by a fitting key on the rear
side. It absorbs additionally arising lateral forces in the
production.
Step 1
For demounting the mounting plate, remove at
first the screws with the flat washers (picture 3).
PowerMax
13
