PowerMax
I
Operating instructions -- PowerMax cam unit PMU

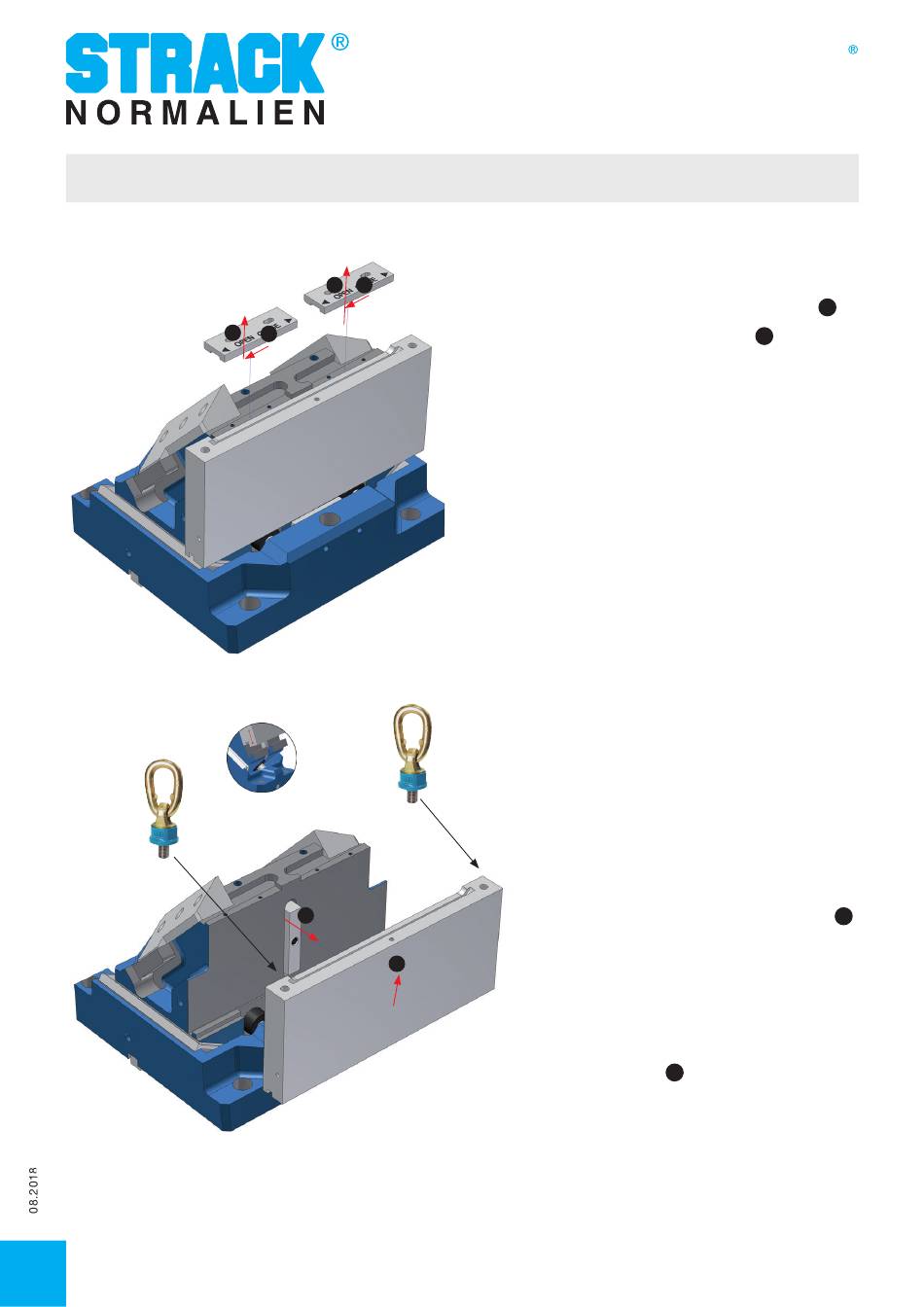

Step 2
To loose the locking, push at first the clamp,
respectively the clamps, in direction OPEN 1 .
Then the clamps can be removed 2
(picture 4).
Step 3
Screw the safety ring bolts (SN1594) in the
plate to be able to lift it with a crane. First lift
the mounting plate out of the centering nut
(picture 2). The fit was produced with high
precision and a close tolerance. If necessary hit
with a plastic hammer in front of the plate and
avoid a canting of the mounting plate. As soon
as the mounting plate is lifted from the nut,
pull the plate ahead (picture 5).
