PowerMax cam unit SN5650-PMU-0330 — SN5650-PMU-1200

8.2 Marking of the cams

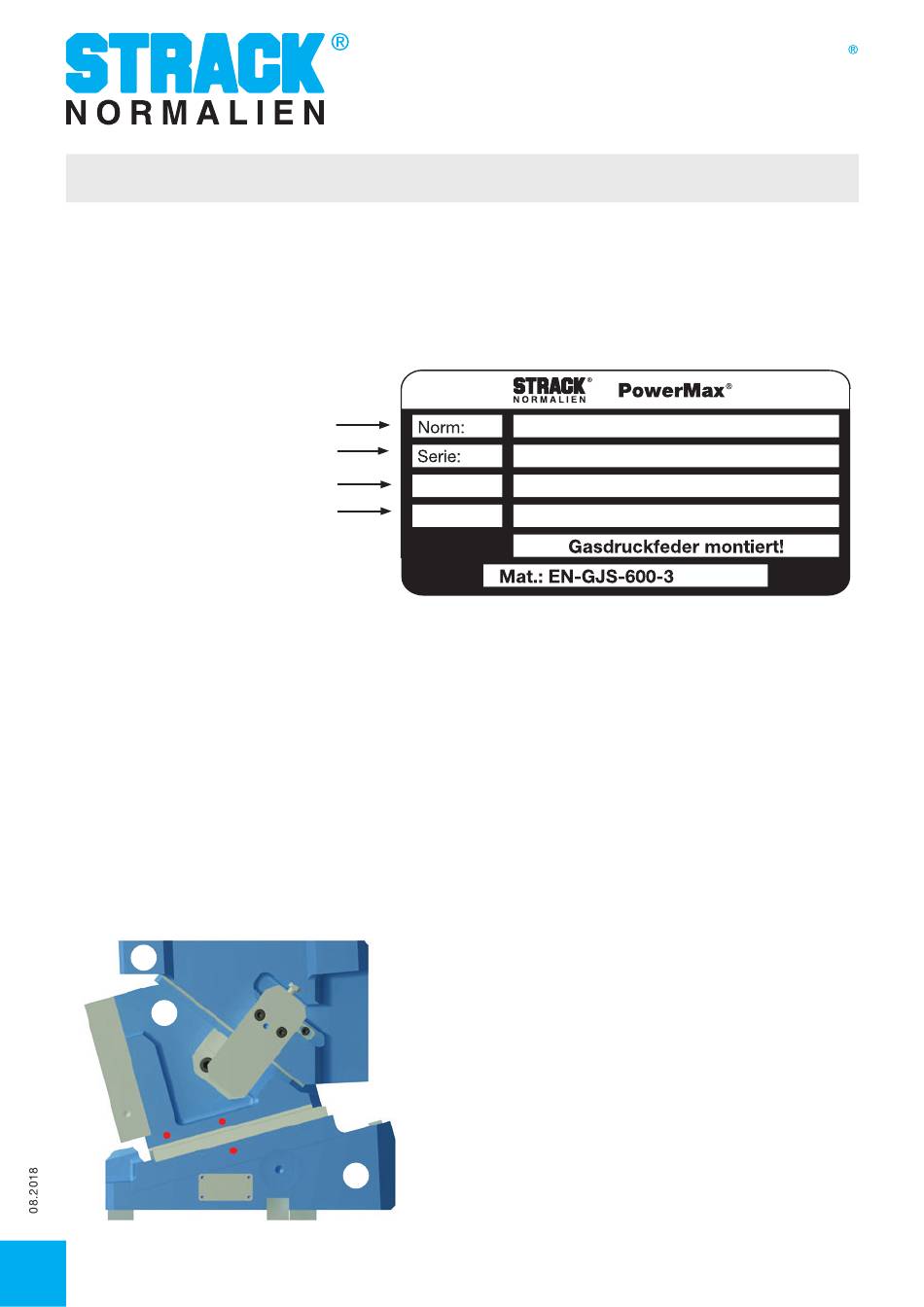

All PowerMax cams are equipped with a type plate.
On this type plate the name and the serial number of the cam are lasered.
Name of the cam
6-digit serial number
For additional information
for customers
The serial number refers to all cams of an order and is different concerning order to order. The Power Max
cams were adjusted in the company STRACK. For this the hardened steel gide strips were ground to the
corresponding dimension. The appropriate screws were additionally secured by the screw locking adhesive
Z9093.
Attention: Don't remove the rails. If this should be inevitable in a case of a crash, the replacement strips
have to be adjusted again.
To avoid confusions within a series the assembly groups of the individual cams are marked within the series
with numbers of 1 to ... (see picture below). During the mounting please absolutely consider the right
coordination of the components to avoid problems.
1
1
12
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de
Additional markings on slide retainer and slide body
make it possible to control the position of the cam in the
tool.
If the cam is moved together, the upper markings
correspond; if the cam is extended the lower markings
correspond.
If the marking on the cam retainer is between the
marking of the body , the whole cam is not driven back
1
in the correct initial position.
PowerMax
I
Operating instructions -- PowerMax cam unit PMU
SN5650-PMU-0065-25-B-N-V01
Sn.-Nr.: 1 2 3 4 5 6
( GGG60 )
