Operating instructions -- PowerMax cam unit PMU
PowerMax cam unit SN5650-PMU-0330 — SN5650-PMU-1200

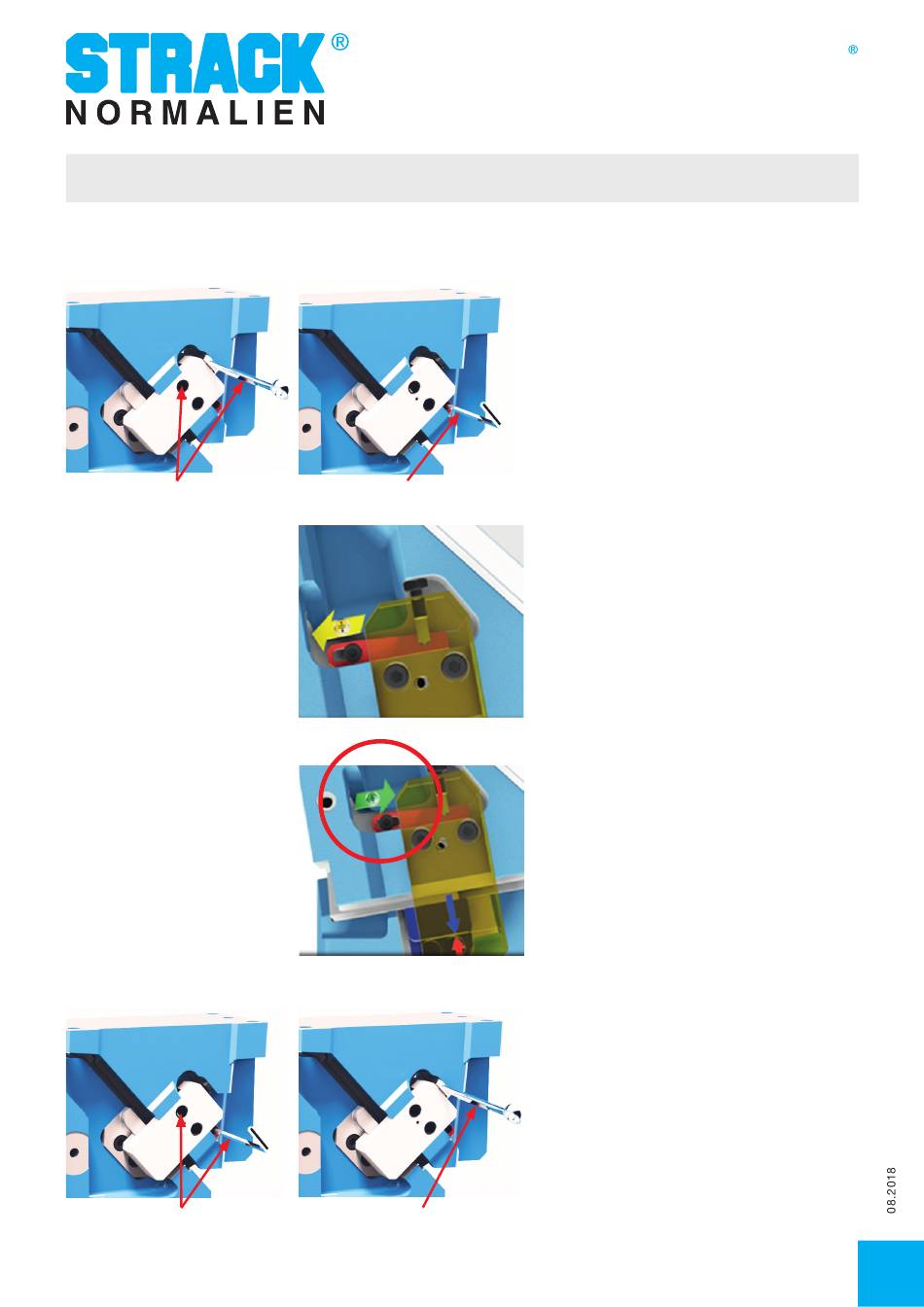

14.1 Adjustment of the active return

Please ensure that the cam has a secure
stand.
Loosen the fixing screws of the active
returns (A) and of the adjusting wedge (B).
A B
Pull the adjusting wedge back and put
the driver on the prism of the cam slide.
After the installation of the driver on the
cam slide push the active returns on the
inserts of the driver and fix them by mov-
ing the adjusting wedges in the direction
of the arrow.
Subsequently fix the screws in the reverse
order.
Fix the fastening screws of the adjusting
wedges and the active returns, subsequently
you secure the active return (A) and control
the guide clearance with a 0.01 mm preci-
sion calibre band. To avoid a tipping of the
driver, both sides should be tightened in the
same way.
B A
31
