PowerMax cam unit SN5650-PMU-0330 — SN5650-PMU-1200
10.1 Mounting of the Lock-Out-System SN5650-PMU-0330
To fasten the cam for the insertion of borings, the fixation of the cam slide by means of a lock-out-system
is necessary. For this purpose please act as following.

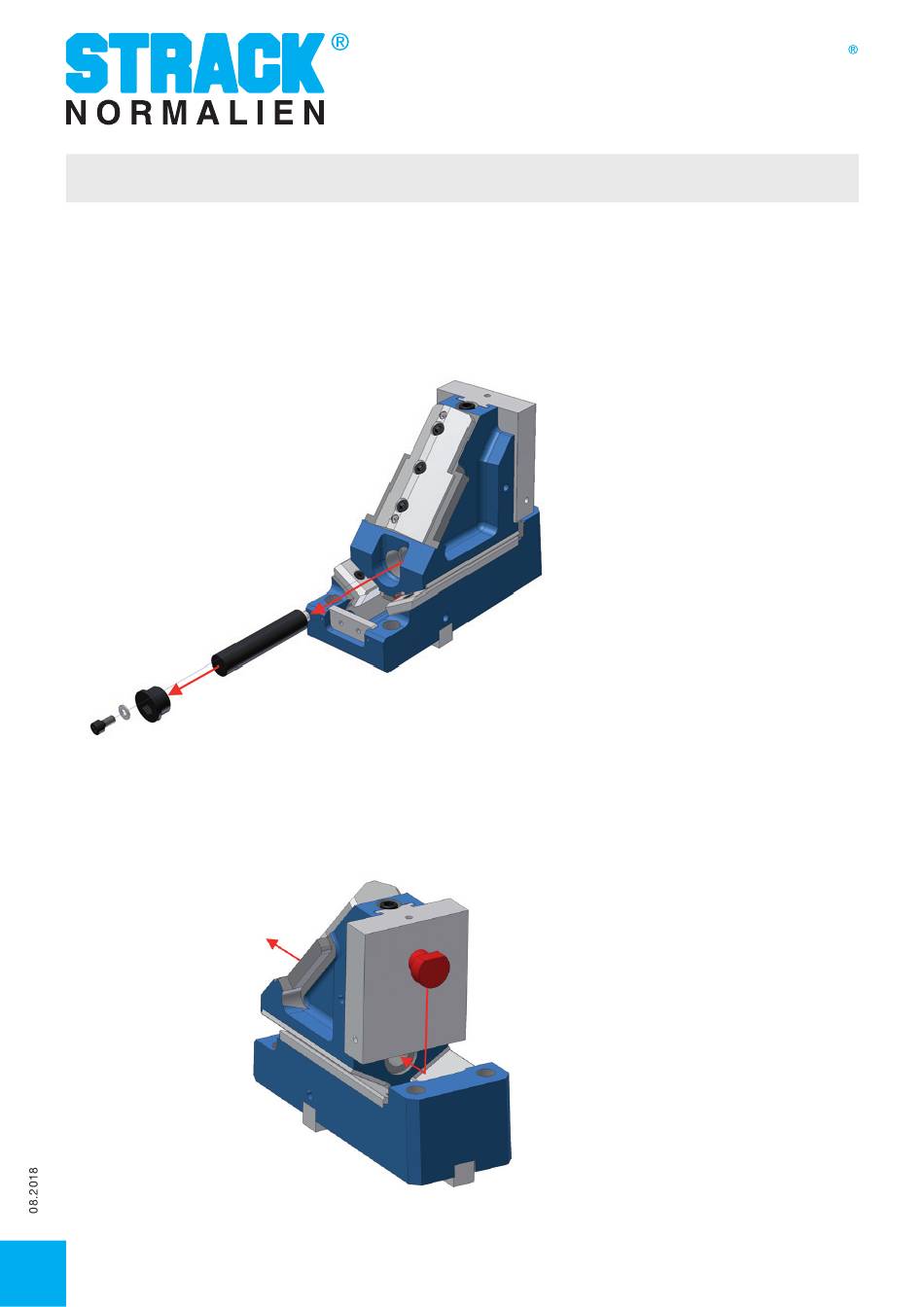

picture 1
2
1
picture 2
18
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de
3
1
I
Operating instructions -- PowerMax cam unit PMU
1. Remove the gas spring by removing
at first the securing screw (step 1);
afterwards remove the plug (step 2).
Now you can remove the gas spring
(step 3) out of the boring.
2. Push the slide in the rear position
(step 1).
Place the distance disc
SN5651-LOS-DS in the boring
2
(step 2).
PowerMax
