Operating instructions -- PowerMax cam unit PMU
PowerMax cam unit SN5650-PMU-0330 — SN5650-PMU-1200
picture 3

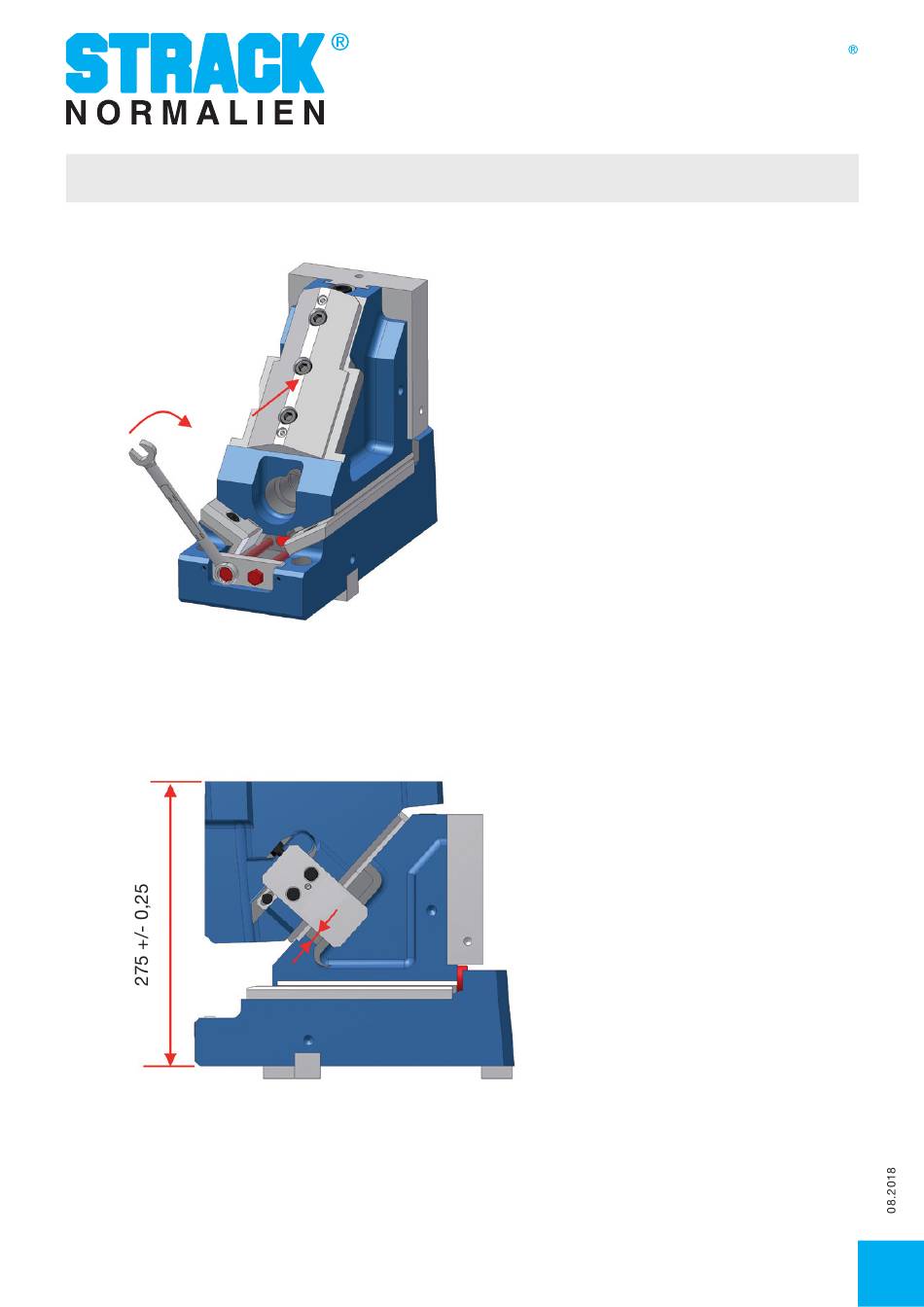

3. Now push the cam slide in the front
position (step 1). Turn the screws
SN5651-LOS-SPS-M8 x 90 in the slide
top (step 2). Tighten the screws
2
1
cautiously to fasten the cam slide
(step 2).
picture 4
4. The slide has an installation height of
275 +/-0.25 mm. Put a final dimension
(10 mm) between the slide stop and the
active return cramp, to get the exact
installation height.
