PowerMax cam unit SN5650-PMU-0330 — SN5650-PMU-1200

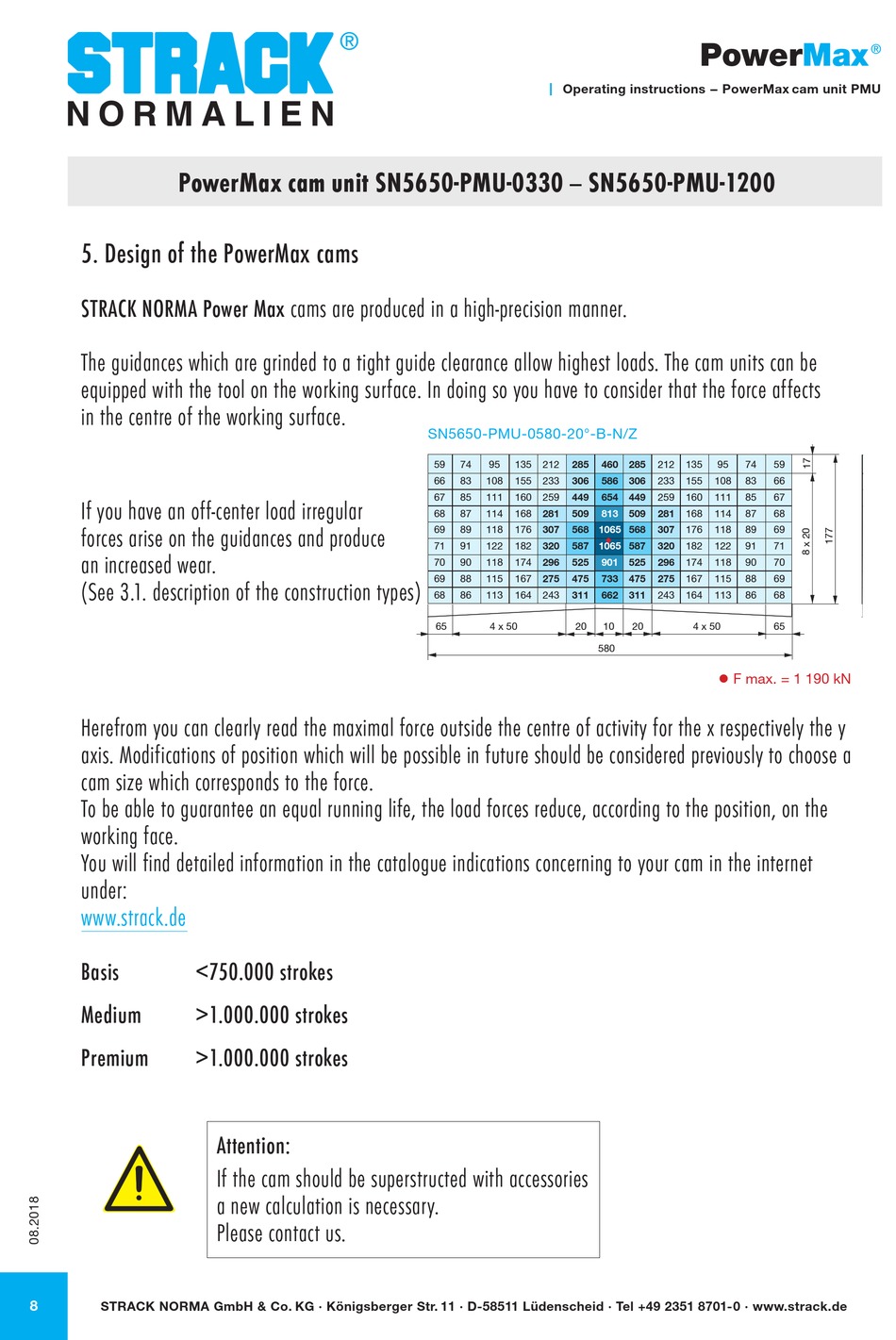

5. Design of the PowerMax cams
STRACK NORMA Power Max cams are produced in a high-precision manner.
The guidances which are grinded to a tight guide clearance allow highest loads. The cam units can be
equipped with the tool on the working surface. In doing so you have to consider that the force affects
in the centre of the working surface.
If you have an off-center load irregular
forces arise on the guidances and produce
an increased wear.
(See 3.1. description of the construction types)
Herefrom you can clearly read the maximal force outside the centre of activity for the x respectively the y
axis. Modifications of position which will be possible in future should be considered previously to choose a
cam size which corresponds to the force.
To be able to guarantee an equal running life, the load forces reduce, according to the position, on the
working face.
You will find detailed information in the catalogue indications concerning to your cam in the internet
under:
www.strack.de
Basis <750.000 strokes
Medium >1.000.000 strokes
Premium >1.000.000 strokes
8
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de
Attention:
If the cam should be superstructed with accessories
a new calculation is necessary.
Please contact us.
I
Operating instructions -- PowerMax cam unit PMU
SN5650-PMU-0580-20°-B-N/Z
285 460
59 74 95 135 212
66 83 108 155 233 306 586
67 85 111 160 259 449 654
281 509 813
68 87 114 168
69 89 118 176 307 568 1065
71 91 122 182 320 587 1065
296 525 901
70 90 118 174
69 88 115 167 275 475 733
68 86 113 164 243 311 662
65 4 x 50 20 10
580
PowerMax
285
212 135 95 74 59
306 233 155 108 83 66
449 259 160 111 85 67
509 281
168 114 87 68
568 307 176 118 89 69
587 320 182 122 91 71
525 296
174 118 90 70
475 275 167 115 88 69
311 243 164 113 86 68
20 4 x 50 65
 F max. = 1 190 kN
59 74 95
66 83 107
67 85 107
68 87 107
69 89 107
71 89 107
70 89 107
69 88 107
68 86 107
