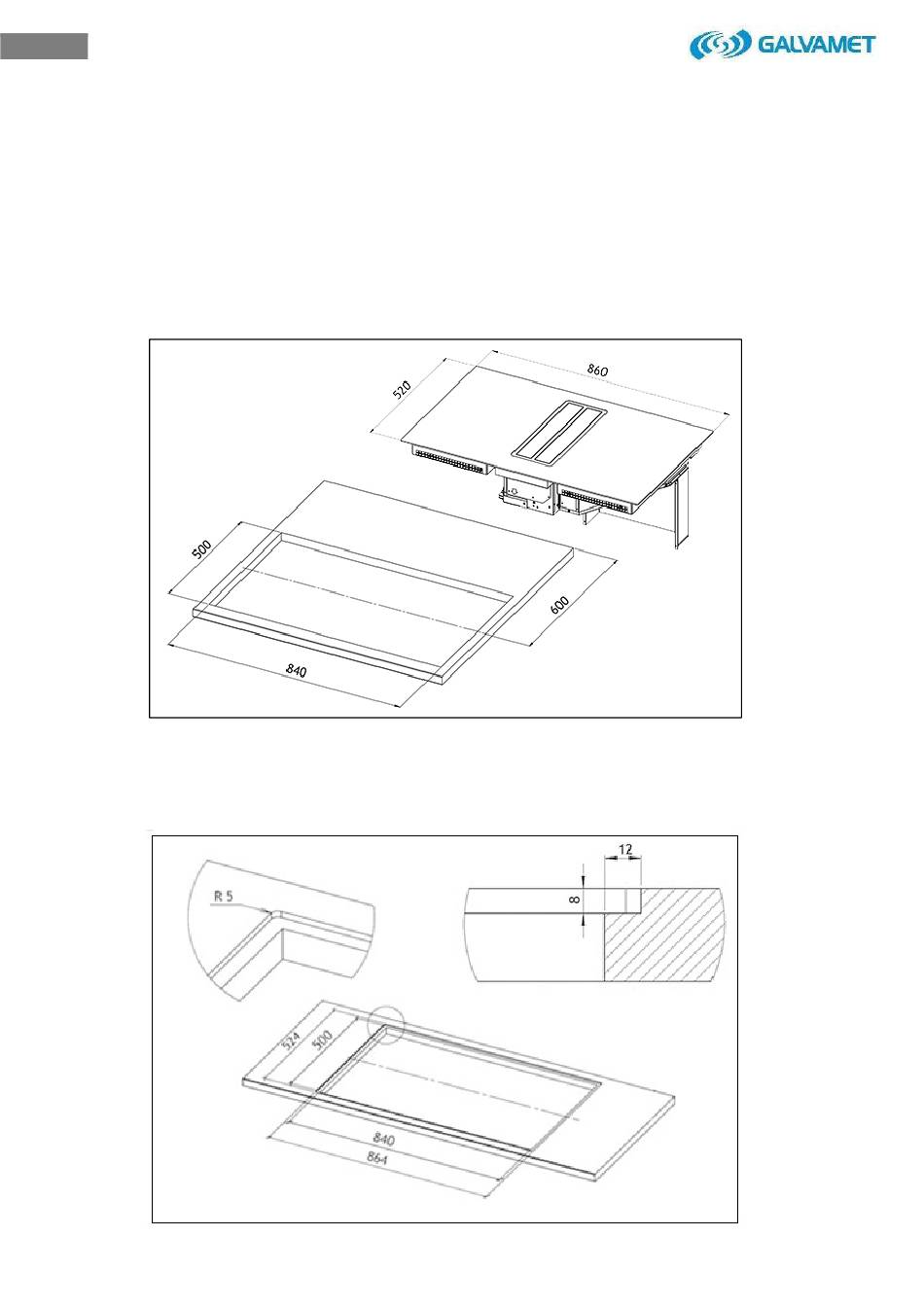

III.5.a INDUCTION HOB INSTALLATION
To leave the necessary space for the air pipe it is important to install the induction hob
with the center line at more than 600mm distance from a possible wall on the back.
Installation of the induction hob can be flush or non-flush.
For non-flush installation: drill the worktop as shown at Fig. 3.37
Fig. 3.36
For flush installation: drill the worktop and mill it all along the edge of the hole, following
sizes indicated Fig. 3.9.
Fig. 3.9
39
