III.4 INSTALLATION ON UP TO 900mm DEEP BASES
For installation on bases deep up to 840mm the the only options are described at previous
paragraphs III.2, III.3.
With a kitchen top deeper than 840mm further to the previous options it is possible to
rotate the aspiration box in order to have more space available inside the furniture.

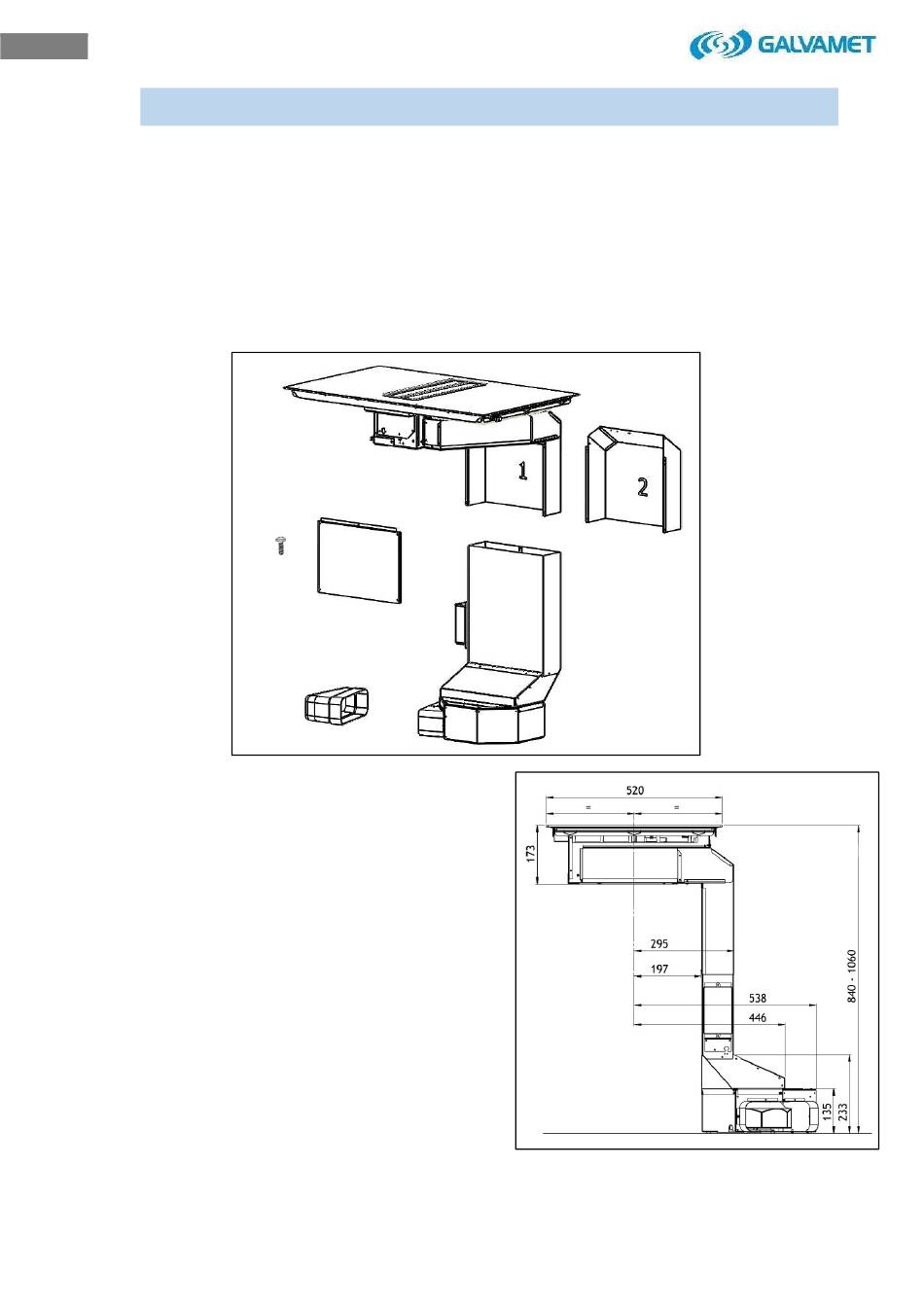

In the box the technician will find the elements shown on Fig. 3.6.
Elements must be mounted carefully following the procedure described in this guide.
The replacement fitting identified with "2" by a
marking on the back is not useful in this
installation.
The device dimensions after installation are
shown at Fig. 3.29
The dimensions refer to the axis of the induction
hob and involve a specific configuration of the
piece of furniture, of the drawers that may be
present and of their own dimensions.
5
Fig. 3.6
28
