EN
It is now possible to assemble the joint "2" by fixing the 4 screws previously
removed (Fig. 3.21 a-bn°1-3-4-5). Screws at Fig. 3.21 a-b n°2-6 must be fixed after
moving the inferior cover.

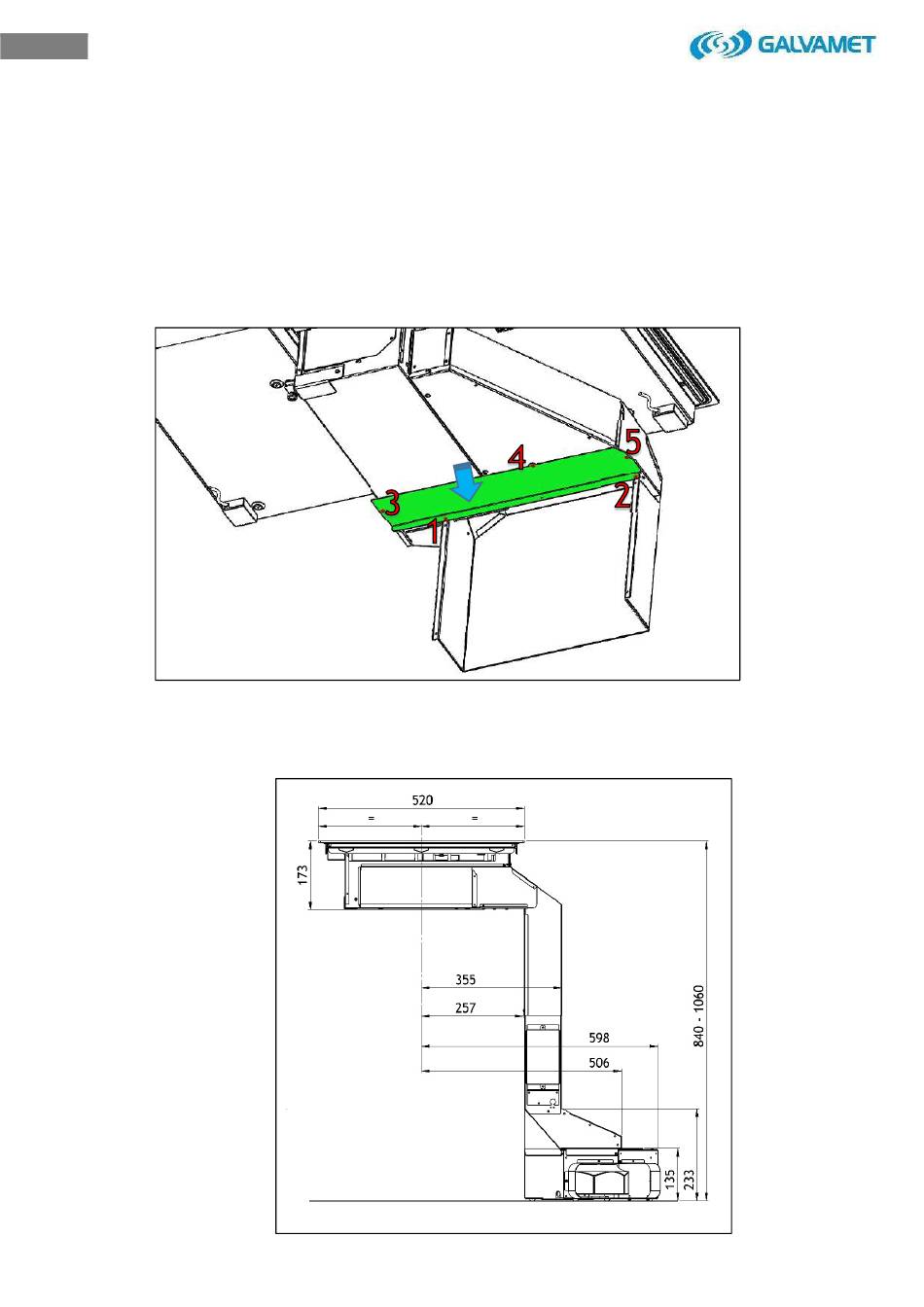

To move the inferior cover remove the 3 screws (Fig. 3.22 3-4-5). Move the cover
forward covering the empty space left by the new joint and fix the 3 screws at the
new position. Then fix the joint and the cover with the two remaining screws (Fig.
3.22 1-2)
Fig. 3.24
Once the new joint is mounted the dimensions after complete installation will be the
ones shown at Fig. 3.36
Fig. 3.36
38
