A2. Models with HD video output

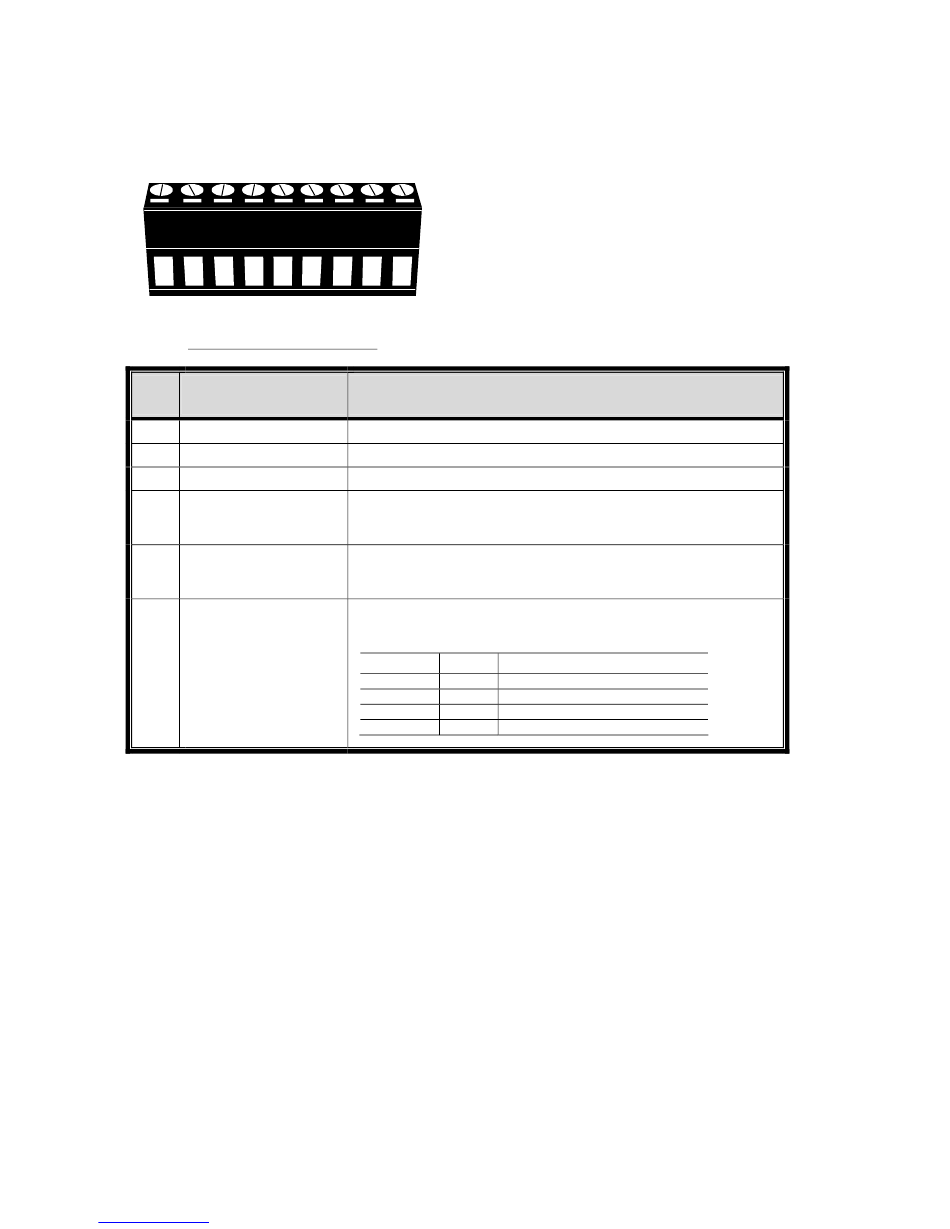

‧ With 9-pin external I/O block
9
PIN
1
2
3
4
5
6~9
Downloaded from www.Manualslib.com
8 7 6 5 4 3 2
External I/O Block
FUNCTION
GND
GROUND
RS485-A
RS485-B
Under the normal operation, COM disconnects with NO. But when any
EXTERNAL ALARM
alarm is triggered, COM connects with NO.
COM
Attention: The voltage restriction is under DC24V 1A.
Under the normal operation, COM disconnects with NO. But when any
EXTERNAL ALARM
alarm is triggered, COM connects with NO.
NO
Attention: The voltage restriction is under DC24V 1A.
Connect ALARM INPUT (PIN 6 -- 9) and GND (PIN 1) connector with
wires. Once an alarm is triggered, the DVR will start recording and the
buzzer will be on.
ALARM INPUT
*
manuals search engine
1
DESCRIPTION
PIN Alarm Corresponding video channel
PIN 6 1 CH1
PIN 7 2 CH2
PIN 8 3 CH3
PIN 9 4 CH4
76
APPENDIX 6 PIN CONFIGURATION
