Easidew Online Bedienungsanleitung
A.1
Abmessungen
46mm
(1.81")
ø25.4 x 2mm
(ø1 x 0.07")
5/8" 18 UNF
m
9")
5/8" Dichtung
Michell Instruments
10mm
(0.39")
1/8" NPT
96mm
(3.7")
VORDERANSICHT
94mm
(3.7")
Easidew Online
Hygrometer
OVERLAY
132mm
(5.19")
46mm
(1.81")
ø27mm
(1.06")
5/8" 18 UNF
10mm
(0.39")
Transmitter
1/8" NPT
55.2mm
5/8"-18 UNF
2.2"
Sensorblock
48mm
(1.9")
10.5mm
(0.41")
46mm
(1.8")
Monitor

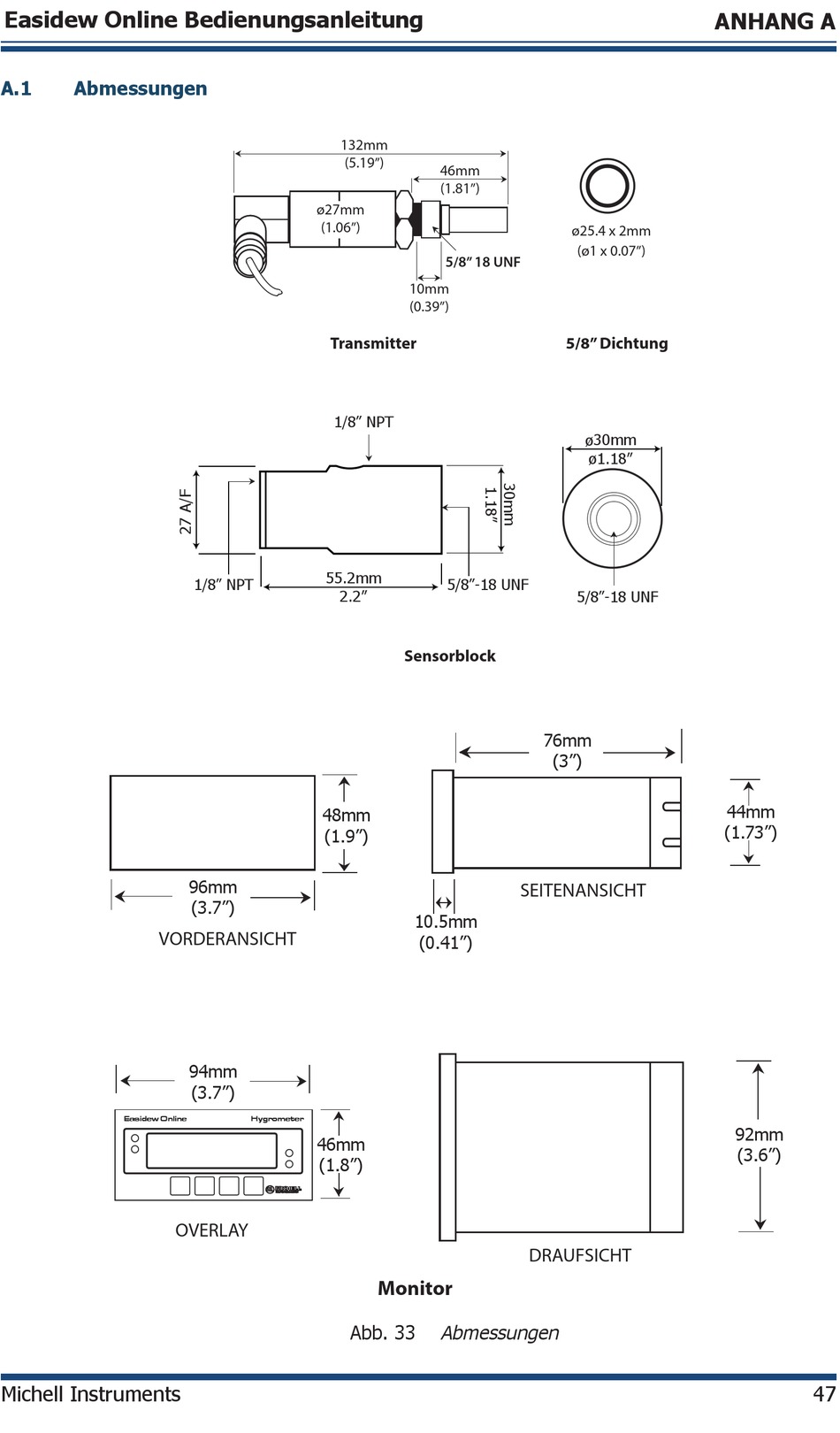

Abb. 33
Abmessungen
ø25.4 x 2mm
(ø1 x 0.07")
5/8" Dichtung
5/8"-18 UNF
76mm
(3")
SEITENANSICHT
DRAUFSICHT
ANHANG A
1/8" NPT
55.2mm
1/8" NPT
2.2"
44mm
(1.73")
92mm
(3.6")
