8. INSTRUCTIONS WITH THE HANDSET
8.1 Handset (optional)
1
Optional Kit - cod. B147AABX
w w w . s e m a t i c . c o m
Recommendation!

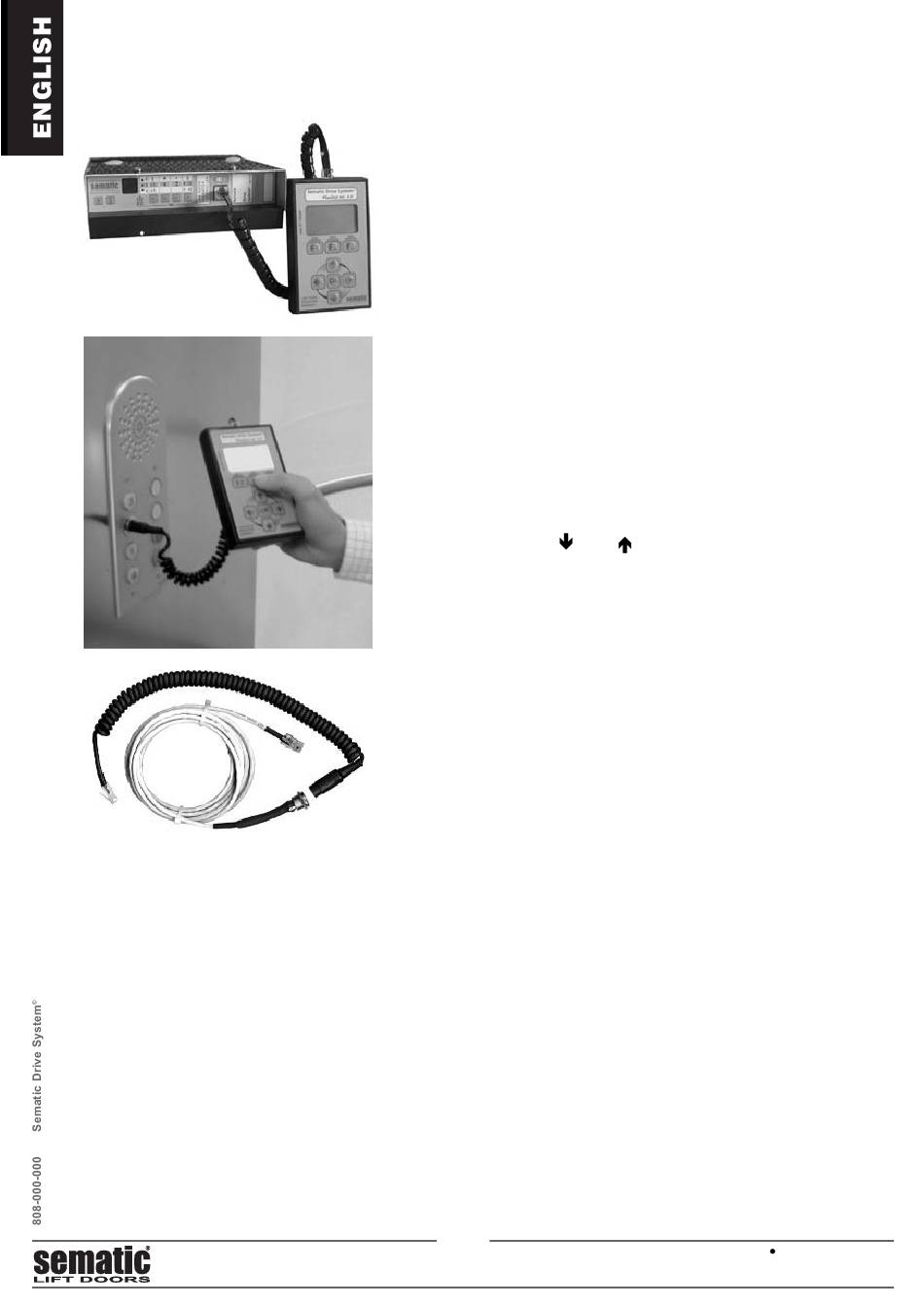

Although the handset (see picture 1) can be directly con-
nected by the installer/maintenance to the door control-
ler on the car's roof, the ideal situation is to have a con-
nection with the door controller inside the car (see pic-
ture 2).
In this way the installer/maintenance personnel can
work in absolutely safe conditions and can control the
movement of the coupled doors during their effective
operational mode.
To make this connection, ask Sematic for the
appropriate adapter cod. B147AABX (see picture
3) (a 16 mm. diameter hole is required in any
chosen position within the Car walls).
Note: when the handset is connected to the con-
troller the display shows the warrantly expiration
date (2 years from the manufacturer date) and
the activity hours left before warrantly expira-
tion. Subsequently choose the language by
means of the keys
ce through the "OK" key.
Important note: when the handset is connected, all the
2
signals from the main lift controller (but not the K2TB, if
used) and Kn are ignored; this in order not to interfere
with the commands sent through the handset. The out-
put LA and LC are both kept OPEN (not valid condition in
normal operation). If Monitor menu is selected also Kn is
monitored. When the MLC Monitor menu is selected,
though, the system performs as if the handset was not
connected at all, allowing the complete monitoring of
3
input/output signals by means of the handset.
26
and and confirm the choi-
