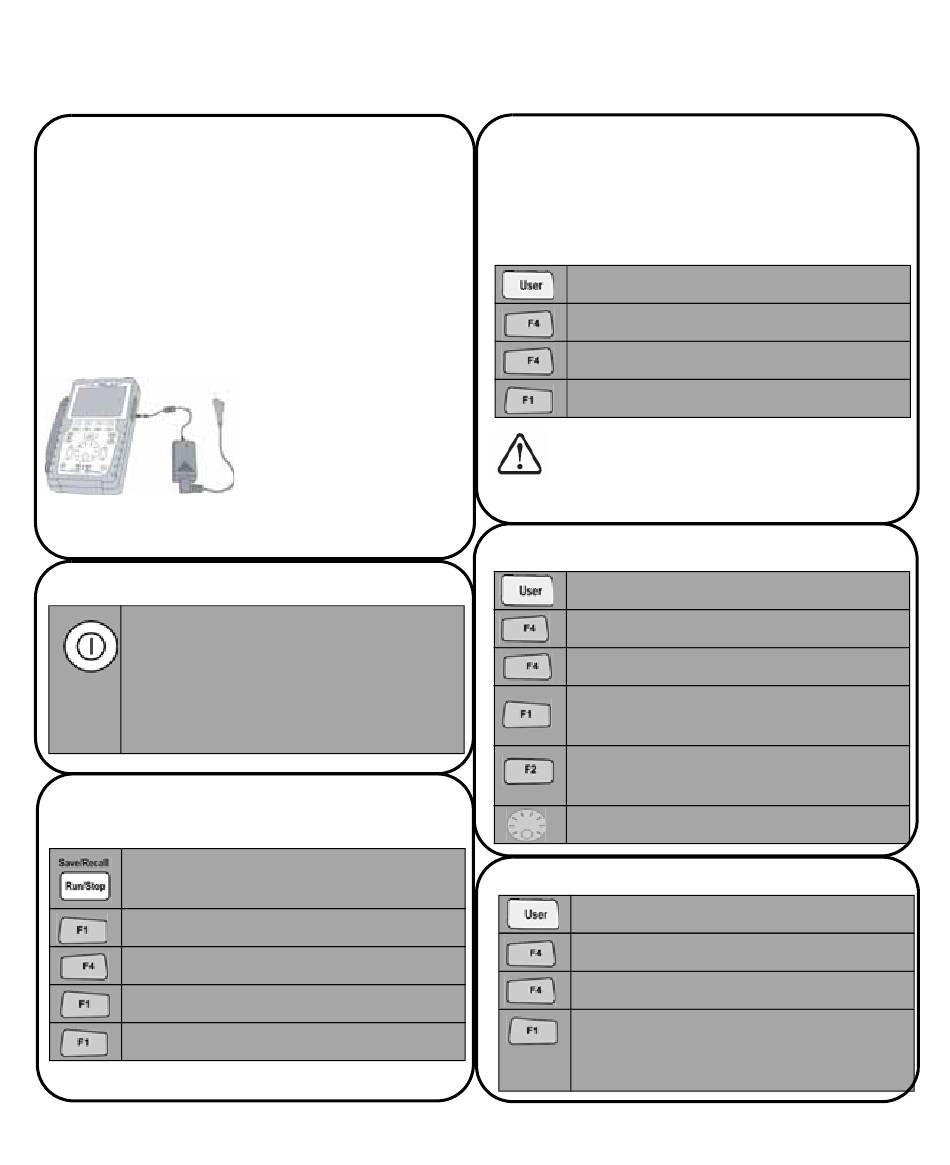

To Charge a Battery

Upon delivery of the unit, the rechargeable
battery is required to be fully charged for
approximately 5 hours with the designated
Agilent AC adapter. Ensure that you have the
correct line power cord. The AC adapter con-
verts input line voltages ranging from 100
VAC to 240 VAC to output voltage 12 VDC.

To Power On the Handheld Scope

To turn on or off the scope, press and hold the
power switch button for three seconds. A
basic self-test shall be executed
automatically upon power up. The scope will
be loaded with the last configuration setup of
the scope.

To Reset to Factory Default Setting

To recall the factor default settings:
Open Save/Recall menu by pressing and
holding the button
Open Save/Recall Setup menu
Select MORE 1/4 page menu
Restore factory default settings
Enter for "Restore OK?"
Input: 100 V – 240 VAC
Output: 12 VDC, 2 A, 50/
60 Hz

To Perform Self-Calibration

To ensure the scope is operating properly,
perform the self- calibration. Before proceed-
ing to the next step, ensure the scope passes
self- calibration.
Open User menu
Open Utility menu
Select MORE 3/4 page menu
Self-calibration start
Disconnect all probe and meter con-
nections to the input terminal
before starting self- calibration.

To Set Time and Date

User Open User menu
Open Utility menu
Select MORE 2/4 page menu
Select time format in MM/DD/YY or
YY/MM/DD
Select time set for Year, Month, Day, Hour,
Minute or Second
Turn rotary switch to set the time display

To Set Auto Power Off

User Open User menu
Open Utility menu
Select MORE 1/4 page menu
Select preference time (5 min/10 min/ 30
min/ 1 hr/ 2 hrs/ 4 hrs) or turn off the auto
power off function
6
