Introduction

This quick start guide provides the basic information, front panel functions and
general specifications of Agilent U1600A Series handheld digital oscilloscopes.
The U1600A Series can also function as a digital multimeter (DMM) and data
logger. With its 4.5- inch LCD color display, it is capable of clearly distinguishing
waveforms from two channels. The U1600A Series handheld digital oscilloscopes
are high performance troubleshooting tools in multi- industrial automation,
process control, facility maintenance and automotive- service industries. The
U1600A Series comprises two models: U1602A and U1604A, with 20 MHz and 40
MHz bandwidths, respectively. Both models are dual- channel scopes with real-
time sampling rate of up to 200 MSa/s. Users can use the Dual Waveform Math
(DWM) and Fast Fourier Transform (FFT) functions (in U1604A) to perform a
quick waveform analysis in both time and frequency domain. The U1600A Series
with built- in 6000- count resolution and true RMS comes with an auto range
function that allows users to perform quick and accurate DMM measurements.
Additionally, with data logger function, users can perform automatic data logging
for all DMM measurements.

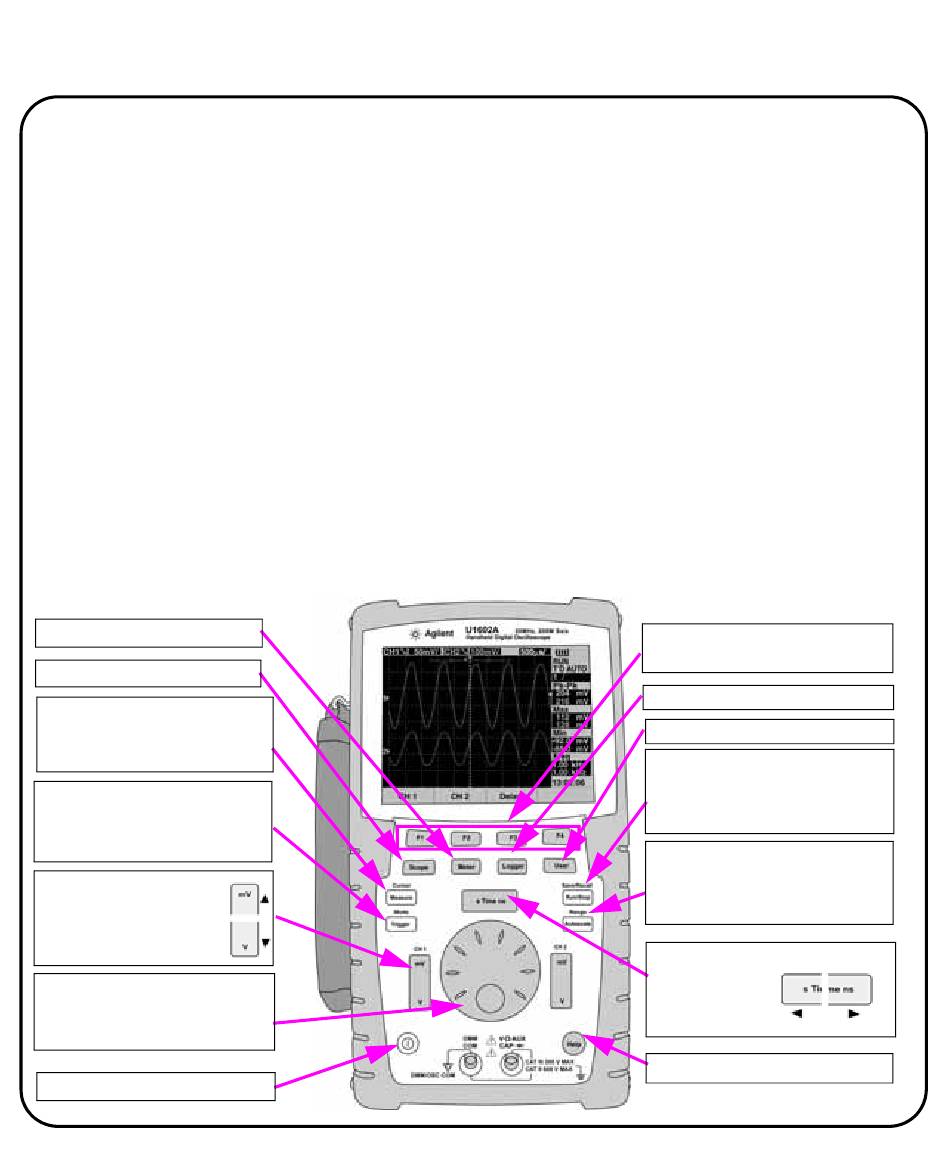

The Front Panel at a Glance

Meter mode button
Scope mode button
Auto measurement button
To access Cursor mode, press
and hold the button.
Trigger button
To access Trigger mode, press
and hold the button.
Vertical scale button to
increase and reduce
volt/div for respective
channel.
Turn clockwise or anti-clockwise
for value selection and press the
knob to set the value.
Power Switch button
Softkeys to select submenu of
each function mode.
Logger mode button
User mode button
Run/Stop button
To access Save/Recall mode,
press and hold the button
Autoscale button
For manual ranging setting, press
and hold the button.
4
Horizontal scale
button to
increase and
reduce time/div.
Quick Help button
