Meter Connection Configuration

The U1600A Series offers high precision, rugged auto ranging in true RMS
with analog bar graph display. Enter Meter mode to select Volt Meter, Ohm
Meter or Auxiliary Meter. Refer to Figure 4 for meter measurement connec-
tion.

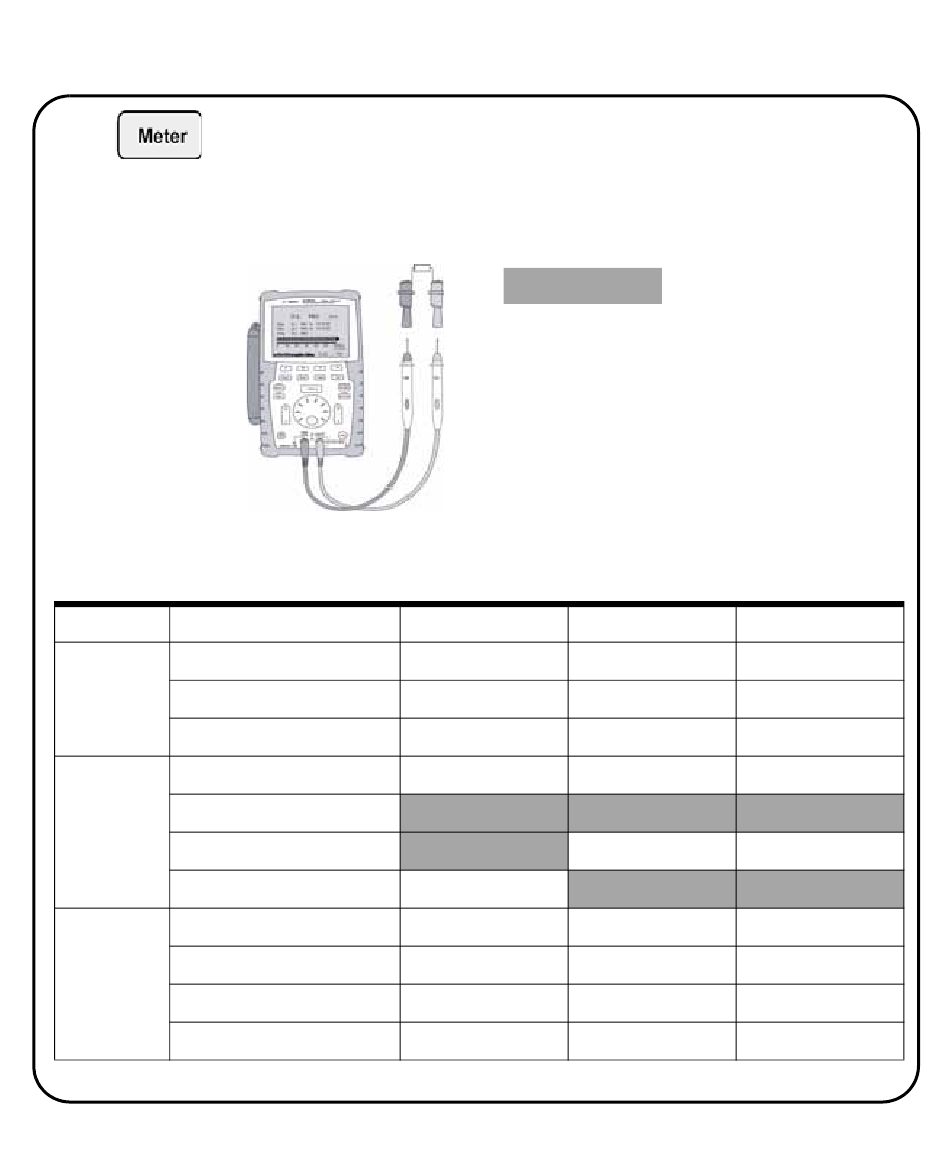

Figure 4 Connection for meter measurement
Table 3 Measurement functions of each meter
Meter Menu Sub Menu
Volt Meter DC
AC+DC
AC
Ohm Meter Resistance
Diode Test
Continuity
Capacitance
Aux Meter Temperature Meter (
Ampere Meter (AC/DC)
Humidity Meter (%RH)
Pressure Meter (psi/kPa)
Auto ranging is set as the default mode for
all voltage and resistance measurements. To
vary measurement range manually, press
Autoscale button to enable manual ranging
and select the preference range by pressing
the same button. To enable the auto range
function, press and hold the same button
until beeper emitted.
Relative
√
√
√
√
√
o o
√
C/ F)
√
√
√
10
NO TE
Min, Max, Average
√
√
√
√
√
√
√
√
√
Restart Test
√
√
√
√
√
√
√
√
√
