Step 3: Connect the Lead Wires to the Patient Cable.

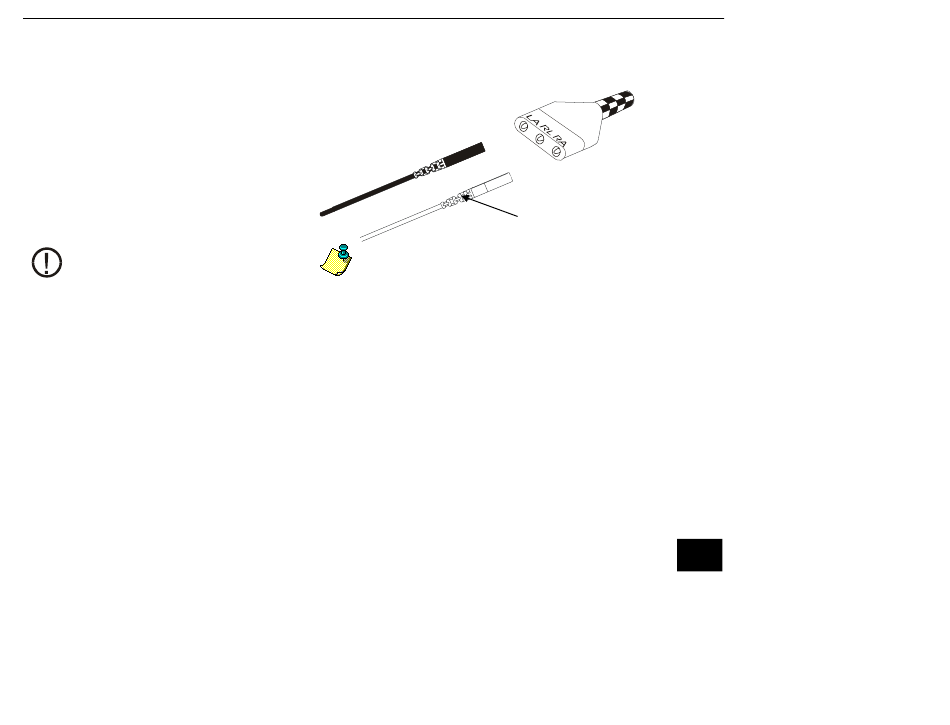

The larger end of the patient cable has three
openings, marked LA (black), RL (green), and
RA (white).
Take the white lead wire and insert it into the
opening marked RA.
Take the black lead wire and insert it into the
opening marked LA.
Firmly push each lead wire in until the socket
snaps into place.
When you need to remove a lead wire,
grasp and pull at the strain relief area
located near the connecting tip. Do not
grasp the wire.
Strain
Relief Area.
Use of the third (green - RL) electrode and lead
wire is normally not required, but may help
reduce excessive false low heart rate alarms.
