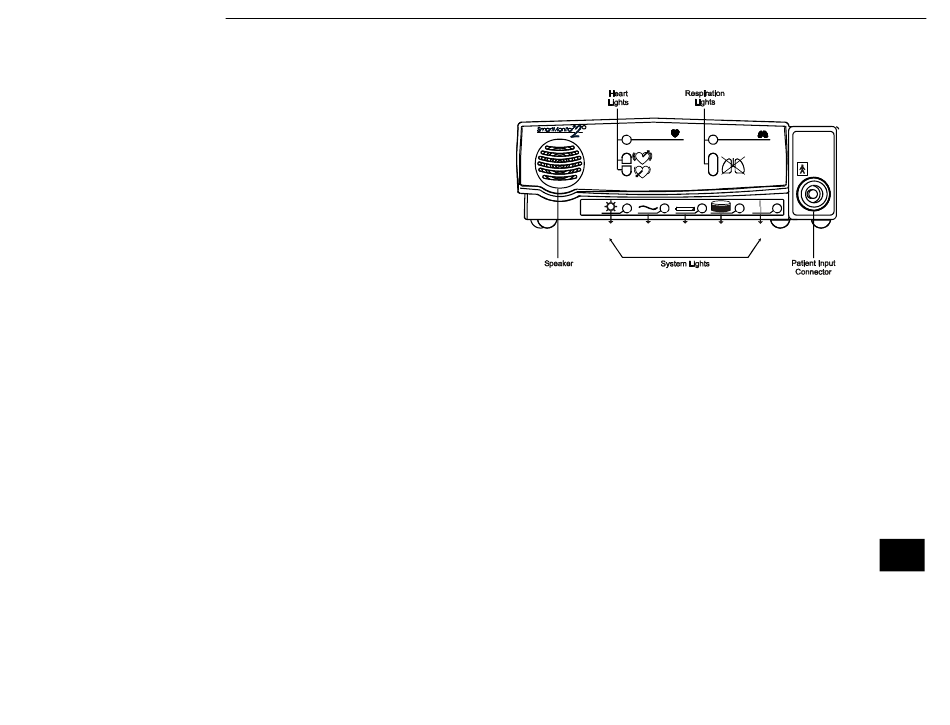

Front Panel Features

Patient Input Connector

The Patient Input connector is for the Patient
Cable.

Respiration Lights

The green respiration light blinks with each
breath the SmartMonitor 2 detects. The red
apnea light will come on if the SmartMonitor 2
detects a pause in breathing that is longer than
the limit set by your physician.

Heart Lights

The green heart light blinks with each heartbeat the SmartMonitor 2 detects. The red high light comes on when the
SmartMonitor 2 detects a heart rate higher than the limit set by your physician. The red low light comes on when
SmartMonitor 2 detects a heart rate lower than the limit set by your physician.
memory
power charger loose
low
full
battery lead
SmartMonitor 2 Features
15
