xclear 2 WAY AUTOMATIC VALVE Bedienungsanleitung Seite 6

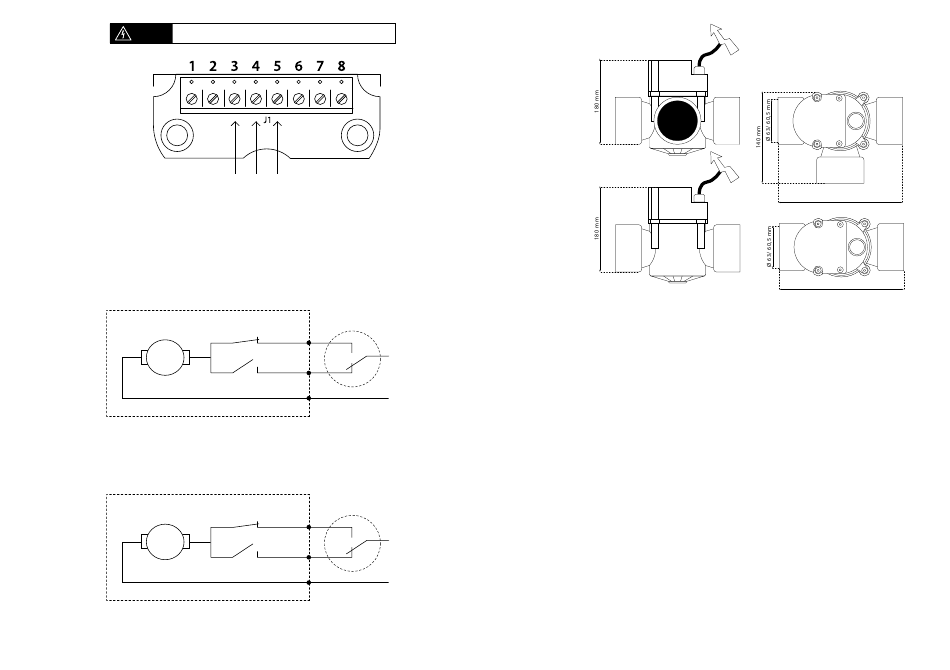

Drawing 4
WARNING Risk of Electric Shock. Disconnect power before servicing.
Wiring diagram
Screw terminal
Screw terminal pinning:
1: Motor cable blue
2: Motor cable brown
3: N mains voltage 240V AC
4: Open; L mains voltage 240 AC
Drawing 5
ELECTRICAL DIAGRAM 2-WAY VALVE
Internal wiring
Valve is open(the valve open end point switch is open)
5; close; L mains voltage 240 AC
4; open; L mains voltage 240 AC
3; N; mains voltage 240 AC
ELECTRICAL DIAGRAM 3-WAY VALVE
Internal wiring
Valve A=>B is open (the valve A=>B open end point switch is open)
5; A=>C open; L mains voltage 240 AC
4; A=>B open; L mains voltage 240 AC
3; N; mains voltage 240 AC
10
5: Close; L mains voltage 240 AC
6: Internal connection switch common
7: Internal connection switch open
8: Internal connection switch close
Double
Valve closed Screw terminal
throw switch
end point switch
5 close
L mains voltage
4
Valve open open
end point switch
3
N mains voltage
When the valve reaches the end point
switch (valve open or valve closed)
the motor will automatically stop
Screw terminal Double
Valve A=>C open
throw switch
end point switch
5
A=>C open
L mains voltage
4
A=>B open
Valve A=>B open
end point switch
3
N mains voltage
When the valve reaches the end point
switch (valve A=>B open or valve A=>C open)
the motor will automatically stop
Drawing 6
Dimensions
Xclear automatic 'stand alone' valve Series:
❏ 2-way cylinder valve 24 Volt actuator
❏ 2-way cylinder valve 240 Volt actuator
❏ 3-way cylinder valve 24 volt actuator
❏ 3-way cylinder valve 240 volt actuator
❏ 3-way cylinder valve 240 Volt actuator 'solar'
Please read carefully through these instructions for use before installing this device.
The Xclear automatic valves have been designed to meet the requirements of today's advanced water piping systems. The automatic
actuation of the valves in your piping system ensures the versatile automation, while maintaining a simple set-up at the same time. The
automatic valves operate with any switch controller, and are available in 240V and 24V.
The "solar" 3-way valve is ideally suited for solar panels, because the shut-off valve does not create a 100% seal. As a result, the required
gentle circulation in the pipes and in the solar panels is always maintained.
WARNING! FOR YOUR SAFETY
This product must be installed and serviced by authorized personnel. Improper installation and/or operation may result in unwanted
electrical hazards that could cause damage to property, serious bodily injury or even death. In the case of incorrect installation and/or
operation, the warranty will be invalid. This manual contains important information regarding the installation, the operation and the safe
use of this product. This information must be delivered to the owner or operator of this equipment.
Safety
• Always comply with the electricity company's regulations with regard to any permanent connection to the mains. If there is any doubt
regarding the connection, consult a recognised electrician or the electricity company. Always work with an earth leakage current circuit-
breaker (max. 30 mA).
• Always disconnect the electrical wiring before carrying out any maintenance or repair work on the unit. Never disconnect the electrical
wiring when you are standing in water or if your hands are wet.
• This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or a lack of experience
and know-how, unless they are under supervision or are instructed on the use of the device by a person responsible for their safety.
190 mm
190 mm
190 mm
190 mm
