Preparing the worktop for installation of the hob
 The worktop of the furniture must be of 30 to 40 mm in thickness and at least 600 mm
in depth. It must be horizontal and the side facing the wall must be isolated against
spilling liquids or humidity.
 The cut surfaces (cutout edges) must be sealed with special varnish, silicone rubber,
or cast raisin in order to prevent swelling caused by humidity.
 The hob must be framed by at least 5 cm of worktop.
 Clean the cutout area of the worktop.

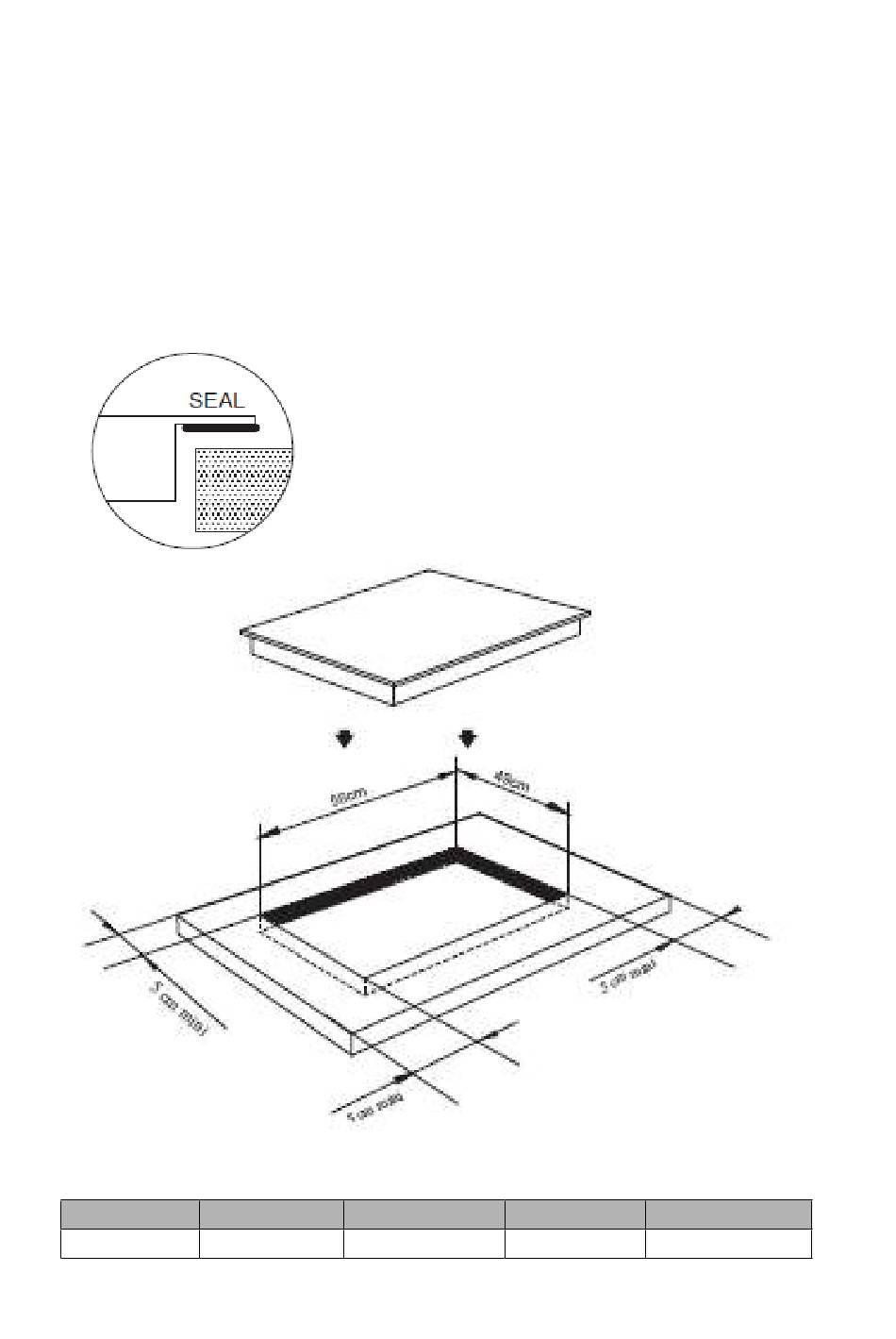

 Prepare the cutout of the worktop using the dimensional drawing.
 Attach the sealing to the bottom of the hob frame before installing the hob.
The distance between the hob and any other kitchen unit or appliance above it must

be no less than 700 mm.
A(mm) B(mm)
700 50 min.
C(mm) D
20 min. Air intake
9
E
Air exit 10 mm
