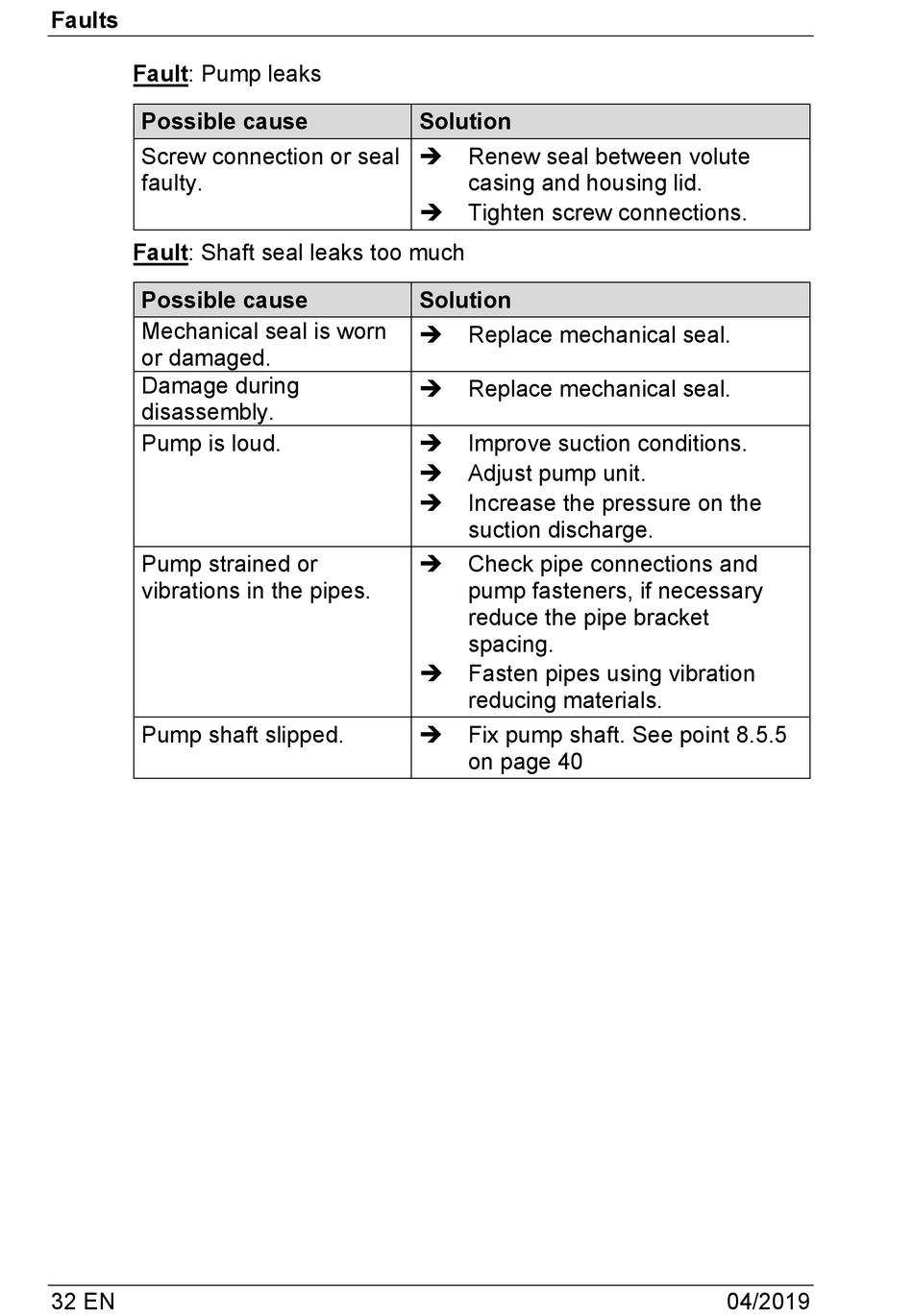

Faults
Fault: Pump leaks
Possible cause
Screw connection or seal
faulty.
Fault: Shaft seal leaks too much
Possible cause
Mechanical seal is worn
or damaged.
Damage during
disassembly.
Pump is loud.
Pump strained or
vibrations in the pipes.
Pump shaft slipped.
32 EN
Solution
 Renew seal between volute
casing and housing lid.
 Tighten screw connections.
Solution
Replace mechanical seal.

 Replace mechanical seal.
Improve suction conditions.

 Adjust pump unit.
 Increase the pressure on the
suction discharge.
Check pipe connections and

pump fasteners, if necessary
reduce the pipe bracket
spacing.
Fasten pipes using vibration

reducing materials.
 Fix pump shaft. See point 8.5.5
on page 40
