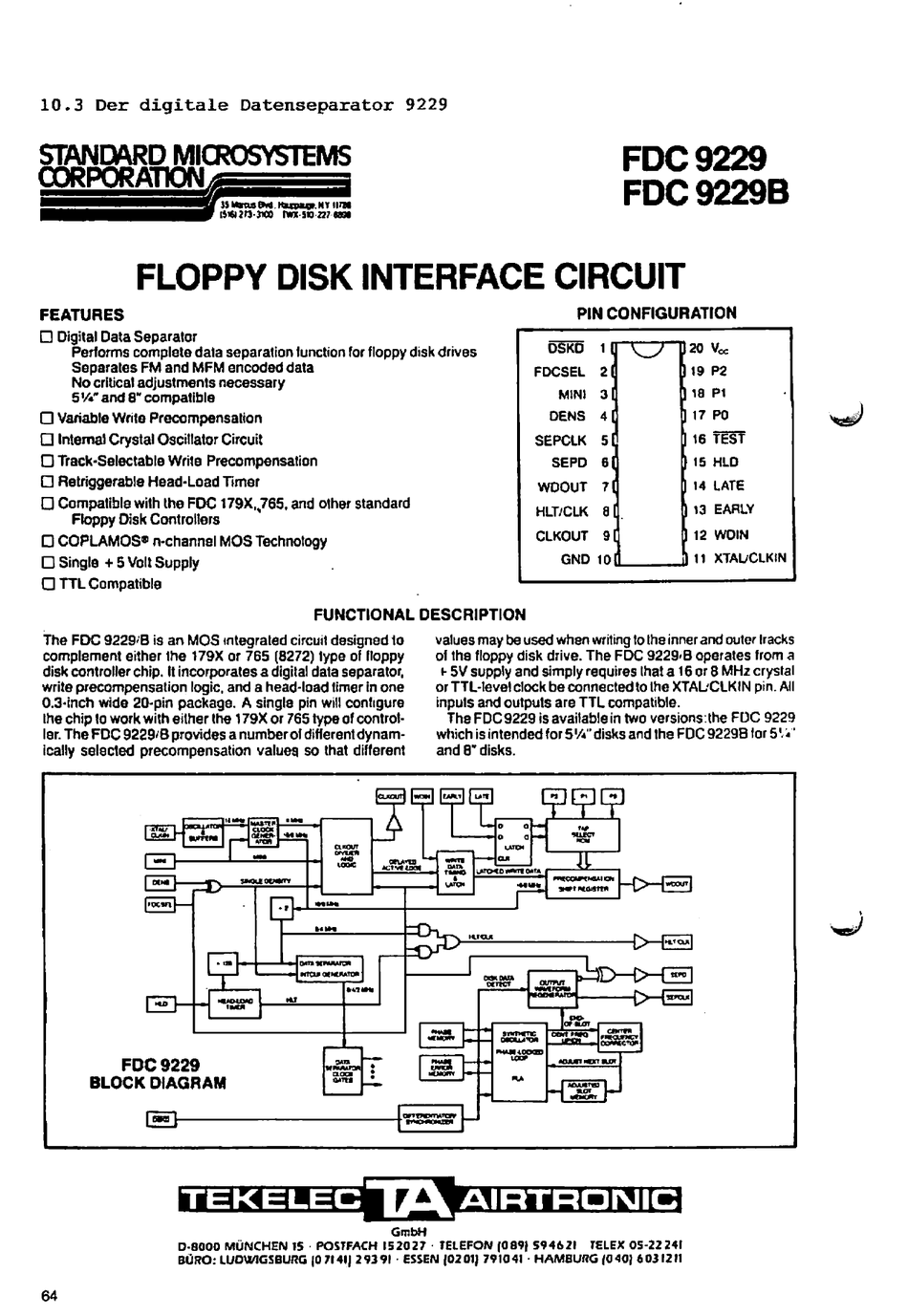

Der digitale Datenseparator 9229
STANDARD MICROSYSTEMS
CORPORATTON,
FDC 9229
FDC9229B
FLOPPY DISK INTERFACE CIRCUIT
FEATURES
D Digital Data Separator
Performs complete dala Separation (unction for floppy disk drives
Separates FM and MFM encoded data
No critical adjustments necessary
5 '/•" and 8" compaiible
D Variable Wrile Precompensation
D Intemal Crystal Oscitlator Circuit
D Track-Selectable Write Precompensation
D Retriggerable Head-Load Timer
D Compatible with the FDC 179X,,765, and other Standard
Floppy Disk Controllers
D COPLAMOS" n-channel MOS Technotogy
D Single + 5 Volt Supply
OTTL Compatible
FUNCTIONAL DESCRIPTION
PIN CONFIGURATION
dSkd
1 (
FDCSEL
2|
MINI
3 [
DENS
4(
SEPCLK
51
SEPD
6|
WDOUT
7|
HLT/CLK
81
CLKOUT
9[
GND 10
20 V«
19 P2
18 P1
| 17 PO
| 16 TEST
15 HLD
14 LATE
| 13 EARLY
12 WOIN
\ 11 XTAUCLKIN
The FDC 9229-B is an MOS integrated circuit dasigned 1o
complement either the 179X or 765 (8272) lype of floppy
disk Controller Chip. It incorporatesa digital data Separator,
write precompensation logic. and a head-load limer in one
0.3-inch wide 20-pin package. A Single pin will contigure
Ihe chip to work with either the 179X or 765 type of controt-
ler. The FDC 9229' B provides a number ot different dy nam-
ically selscted precompensation valueg so that different
values may be used when writing to the inner and outer Iracks
of tha floppy disk drive. The FDC 9229'B operates from a
t- 5V supply and simply requires lhat a 16 or 8 MHz crystal
or TTL-Ievel dock be connected to Ihe XTAL'CLKIN pin. All
inpuls and Outputs are TTL compatible.
TheFDC9229isavaitablein two versions.the FDC 9229
which is intended for 51/*'disks and the FDC 9229B lor 5U1
and 8* disks.
FDC 9229
BLOCK DIAGRAM
GmbH
D-8000 MÜNCHEN IS
POSTFACH 152027
TELEFON (089) S9462I
TELEX 05-22241
BÜRO: LLfOWlGSBURG |O7I4I| 29391
ESSEN (0201) 791041
HAMBURG (040) 6031211
