IBM 3740 FORMAT - 128 BYTES/SECTOR
Stiown below is the IBM single-density formal with 128
bytes/sector. In Order to format a diskette, the user must
Issu9 the Wrlte Track command, and load the data regisier
with 1ha followlng values. For every byle to be written, there
is one Data Request.
IBM SYSTEM 34 FORMAT- 2S6 BYTES/SECTOR
Shown below is the IBM dual-denslty format with 256
bytes/sector. In order to format a dlsketta the user must
issue the Wrlte Track command and load the data reglster
with the followlng valuas. Foreveiy byte to be written, there
is one data request.
NUMBER
OF BYTES
40
6
1
26
6
1
1
1
1
1
1
11
6
1
128
1
27
247"
HEX VALUE OF
BYTE WRITTEN
FF(orOO)1
00
FC (Index Mark)
FF(orOO)1
00
FE(IOAddressMark)
Track Number
SideNumber(00or01)
Sector Number (1thru1A)
OO(SectorLength)
F7 (2 CRC's written)
FF(orOO>'
00
FB (Data Address Mark)
Data(IBMusesE5)
F7 (2 CRC's written)
FF(orOO)'
FF(orOO)"
• Write bracketed fleld 26 tlmes
' "Continue writing untll FD179X Interrupts out.
Approx. 247 bytes.
1-Optlona! W on 1795/7 only.
NUMBER
OF BYTES
80
12
3
1
• 50
12
3
1
1
1
1
1
1
22
12
3
1
256
1
54
598"
HEX VALUE OF
BYTE WRITTEN
4E
00
F6(Wri!esC2)
FC (Index Mark)
4E
00
F5(Wri1esA1>
FE(ID Address Mark)
Track Number (0thru4C>
Slde Number (0or1)
Sector Numbar (1 thru 1A)
01 (Sector Length)
F7 (2 CRCs written)
4E
00
F5(WritesA1)
FB (Data Address Mark)
DATA
F7 (2 CRCs written)
4E
4E
'Write bracketed fleld 26 tlmes
' 'Continue writlng until FD179X Interrupts out.
Approx. 598 bytes.

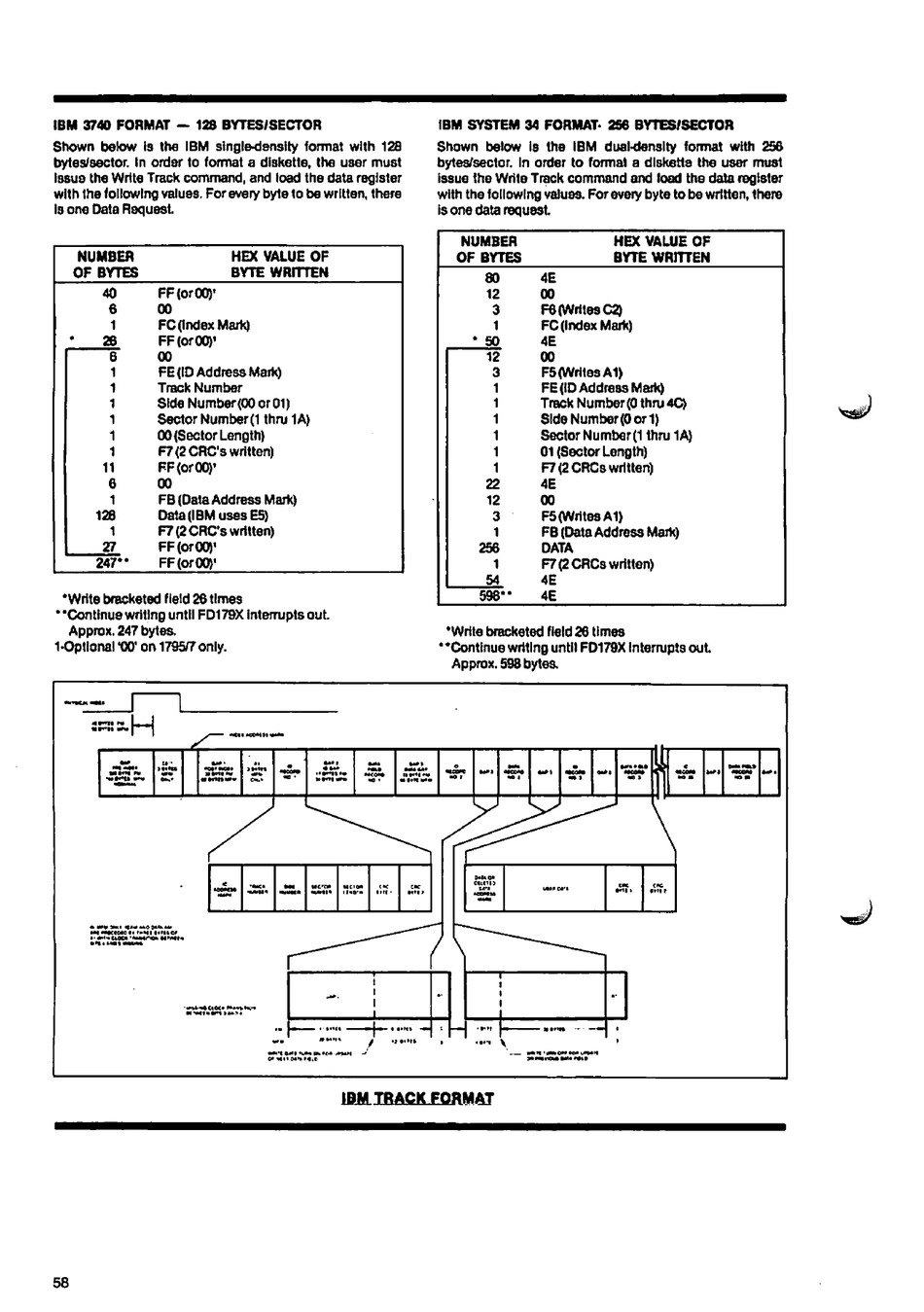

IBM TRACK FORMAT
