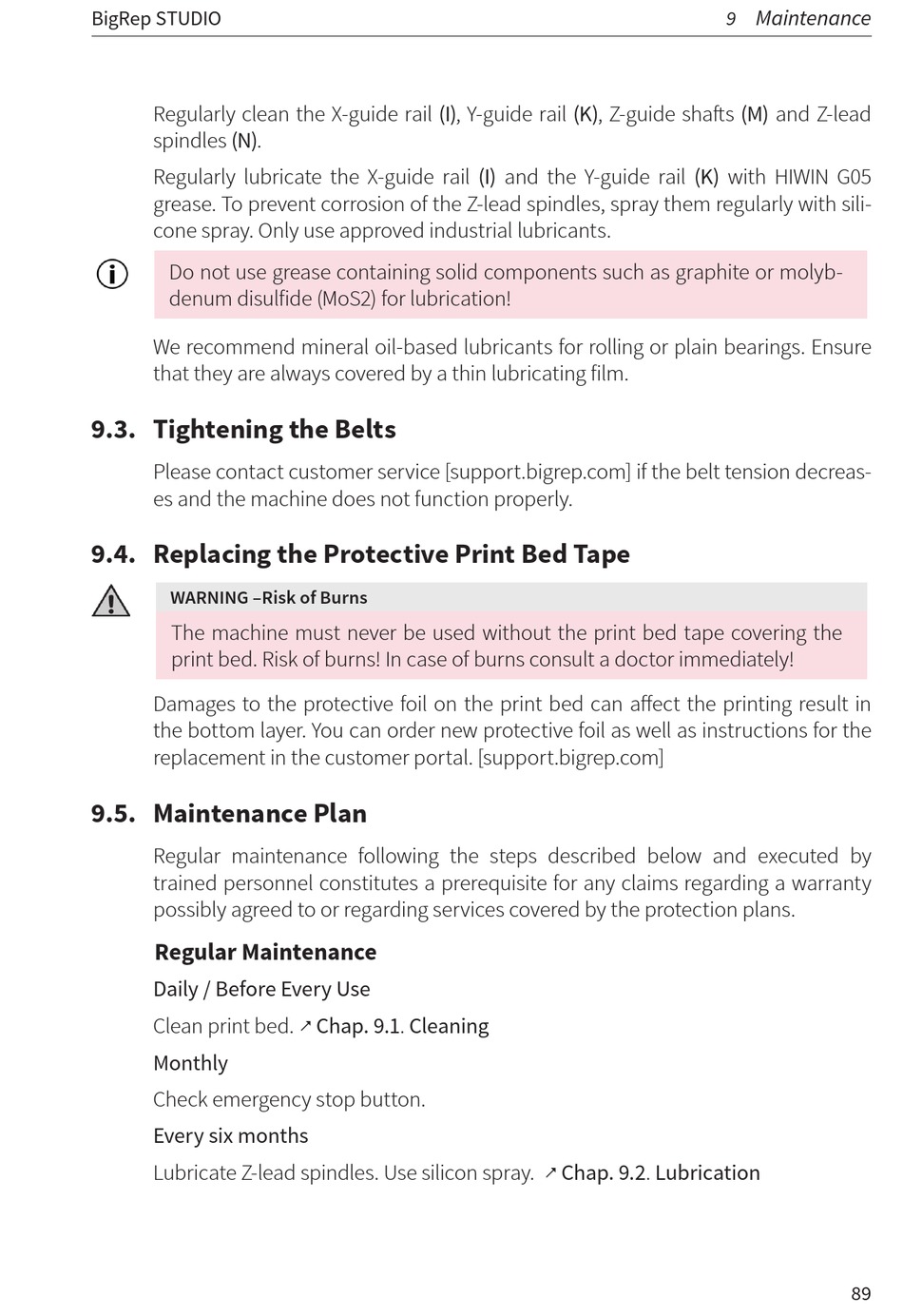

Regularly clean the X-guide rail (I), Y-guide rail (K), Z-guide shaft s (M) and Z-lead
spindles (N).
Regularly lubricate the X-guide rail (I) and the Y-guide rail (K) with HIWIN G05
grease. To prevent corrosion of the Z-lead spindles, spray them regularly with sili-
cone spray. Only use approved industrial lubricants.
Do not use grease containing solid components such as graphite or molyb-
denum disulfide (MoS2) for lubrication!
We recommend mineral oil-based lubricants for rolling or plain bearings. Ensure
that they are always covered by a thin lubricating film.

9.3. Tightening the Belts

Please contact customer service [support.bigrep.com] if the belt tension decreas-
es and the machine does not function properly.

9.4. Replacing the Protective Print Bed Tape

WARNING –Risk of Burns
The machine must never be used without the print bed tape covering the
print bed. Risk of burns! In case of burns consult a doctor immediately!
Damages to the protective foil on the print bed can aff ect the printing result in
the bottom layer. You can order new protective foil as well as instructions for the
replacement in the customer portal. [support.bigrep.com]

9.5. Maintenance Plan

Regular maintenance following the steps described below and executed by
trained personnel constitutes a prerequisite for any claims regarding a warranty
possibly agreed to or regarding services covered by the protection plans.

Regular Maintenance

Daily / Before Every Use
Clean print bed.
Monthly
Check emergency stop button.
Every six months
Lubricate Z-lead spindles. Use silicon spray.
Chap. 9.1. Cleaning

Chap. 9.2. Lubrication

