Interface
6

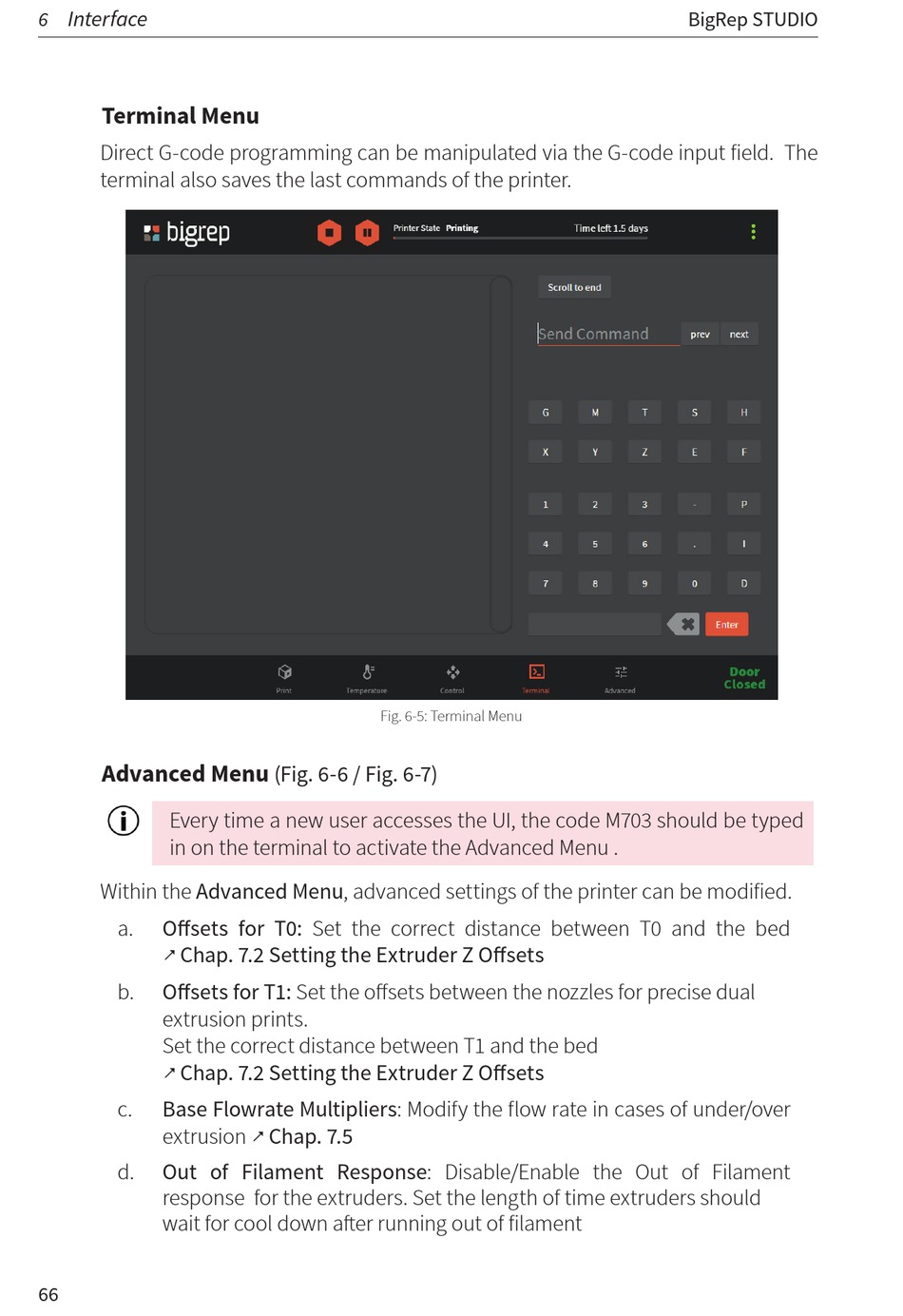

Terminal Menu
Direct G-code programming can be manipulated via the G-code input field. The
terminal also saves the last commands of the printer.
Advanced Menu
Every time a new user accesses the UI, the code M703 should be typed
in on the terminal to activate the Advanced Menu .
Within the Advanced Menu, advanced settings of the printer can be modified.
a. O sets for T0: Set the correct distance between T0 and the bed
Chap. 7.2 Setting the Extruder Z O sets

b. O sets for T1: Set the off sets between the nozzles for precise dual
extrusion prints.
Set the correct distance between T1 and the bed
Chap. 7.2 Setting the Extruder Z O sets

Base Flowrate Multipliers: Modify the flow rate in cases of under/over
c.
extrusion
d. Out of Filament Response: Disable/Enable the Out of Filament
response for the extruders. Set the length of time extruders should
wait for cool down aft er running out of filament
66
Fig. 6-5: Terminal Menu
(Fig. 6-6 / Fig. 6-7)
Chap. 7.5

