BigRep STUDIO
Extruder Overview
a
a Lever filament drive T1
b Filament guide (2 pcs)
c Extruder attachment screw
d Idler wheel T1
Replacing the Extruder
Safety Instructions
CAUTION – Danger of Burns
Aft er printing the nozzle is hot. Danger of burns! Always let the nozzle cool
down before removing the extruder!
Never loosen the electrical connectors (k) while the machine is powered.
Also never turn on power if the electrical connectors are not connected to
the extruder.
The electrical connectors (k) must be connected to the extruder whenever
the main switch (S) is set to ON!
Preparation
Move the extruder to a position that allows for easy removal, if necessary use the
interface.
Remove any filament remains from the extruder.
Let the extruder cool down.
b
c
d
e
f
e Nozzle T1
f Nozzle T0
g Idler wheel T0
h Lever filament drive T0

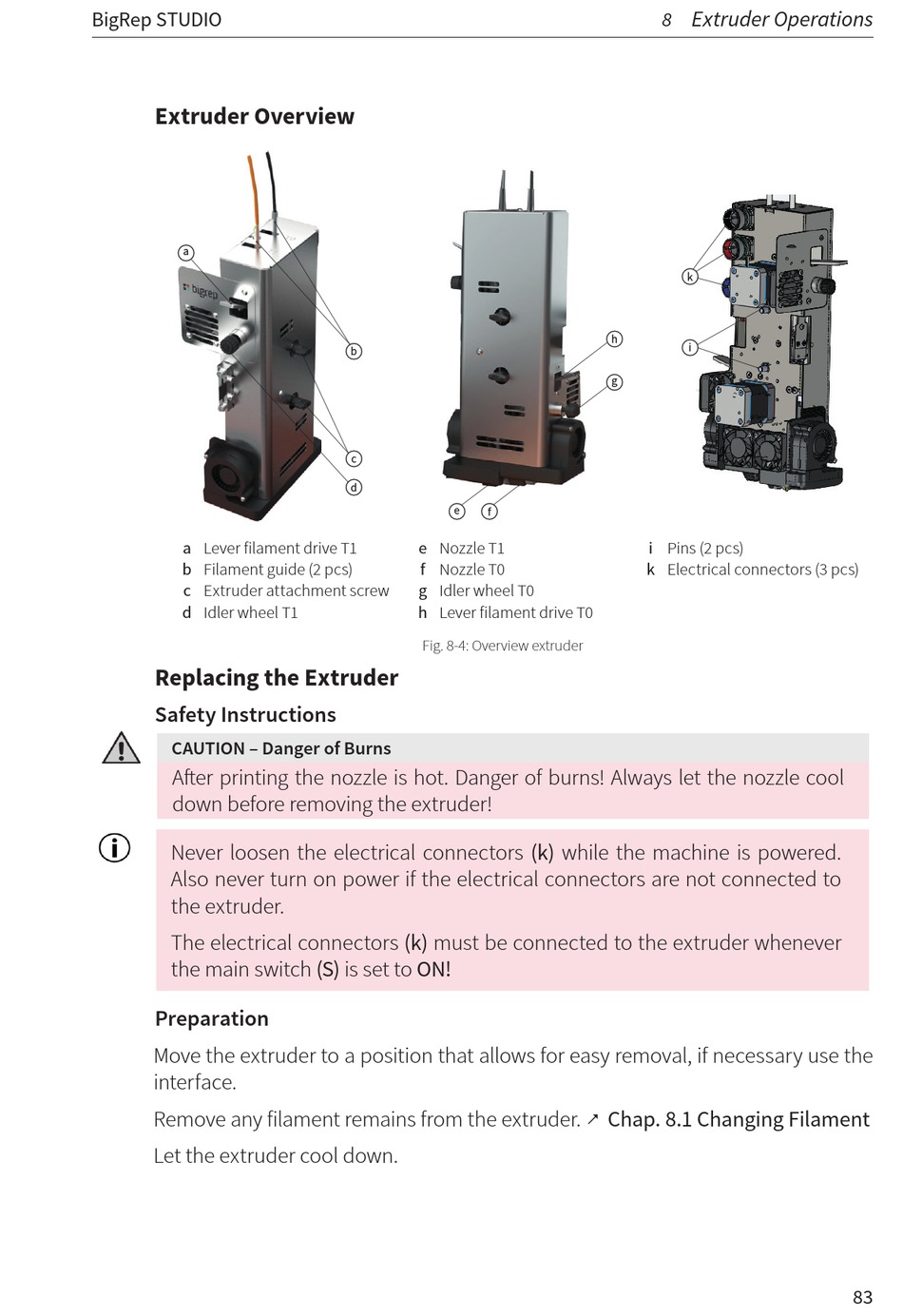

Fig. 8-4: Overview extruder
Extruder Operations
8
k
h
i
g
i Pins (2 pcs)
k Electrical connectors (3 pcs)
Chap. 8.1 Changing Filament
&
83
