Cascading DAS Connection

To setup a cascading DAS connection:
1. Connect the SAS HBA card in the Host PC to the SAS IN port (with the circle
icon) on the first VTrak.
See Figure 12. Use a SFF-8088 4X to 4X external SAS cable (supplied with
the VTrak).
2. Connect the SAS OUT port (with the diamond icon) on the same I/O module
of the first VTrak to the SAS IN port (with the circle icon) on the second
VTrak.
Be sure to connect circle icon to diamond icon or vice versa.
You can cascade up to four VTrak units in this manner.
You can mix J830s and J630s units as well as J610s and J310s units in the
same cascade. Note that Jx10s are 3Gb units and might reduce data
throughput.

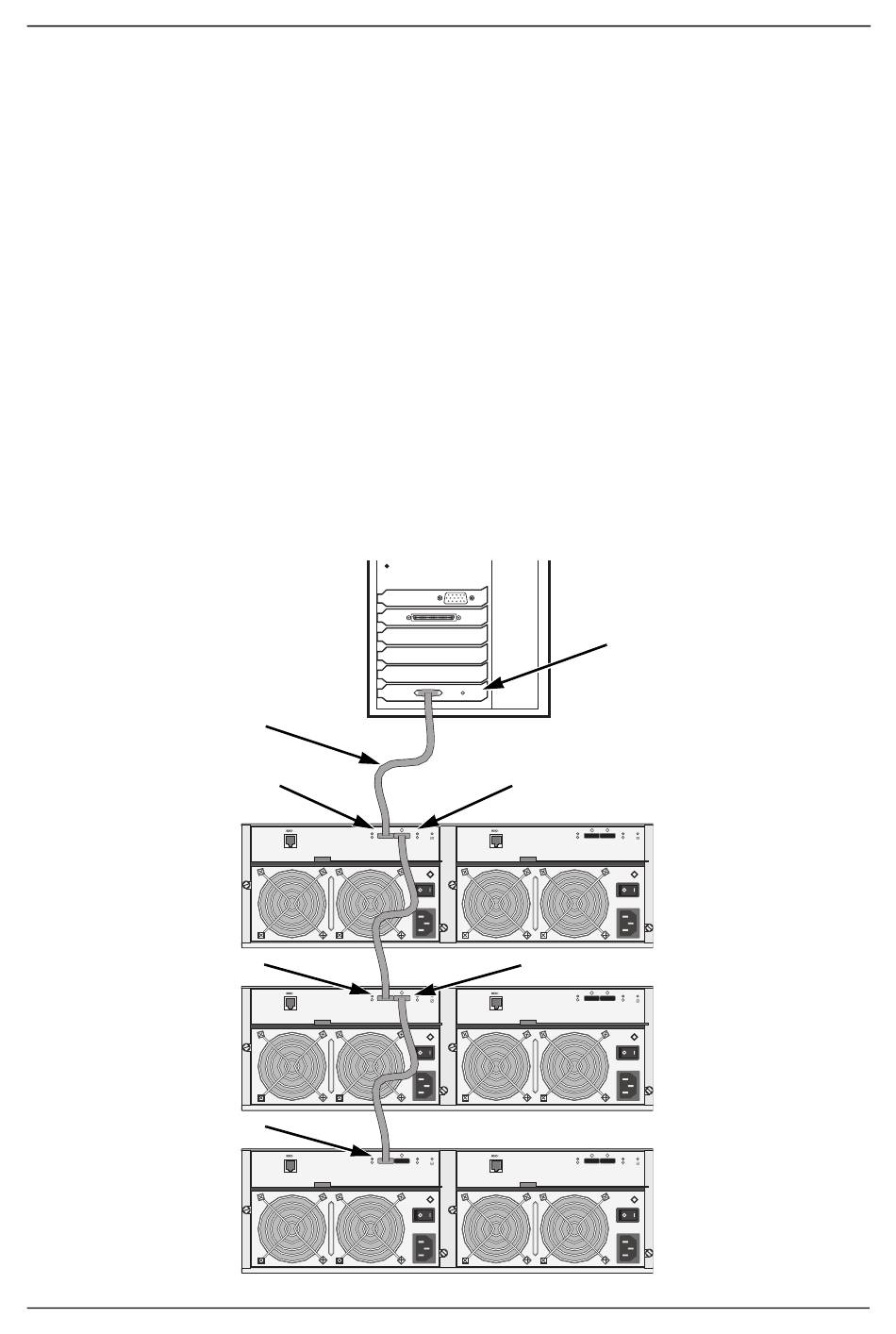

Figure 12. A cascaded DAS connection
SFF-8088 external
4X to 4X SAS cable
SAS IN circle port
SAS IN circle port
SAS IN circle port
115200 8 N 1
115200 8 N 1
115200 8 N 1
14
Task 4: Making Data Connections
SAS HBA Card
Host PC or Server
SAS OUT diamond port
115200 8 N 1
SAS OUT diamond port
115200 8 N 1
115200 8 N 1
VTrak J630s
VTrak J630s
VTrak J630s
