• Install two screws per drive, two screws per bracket, and two screws per
adapter.
• Snug each screw. Be careful not to over tighten.
5. Reinstall the drive carrier into the VTrak enclosure.
6. Repeat steps 2 through 5 until all of your disk drives are installed.

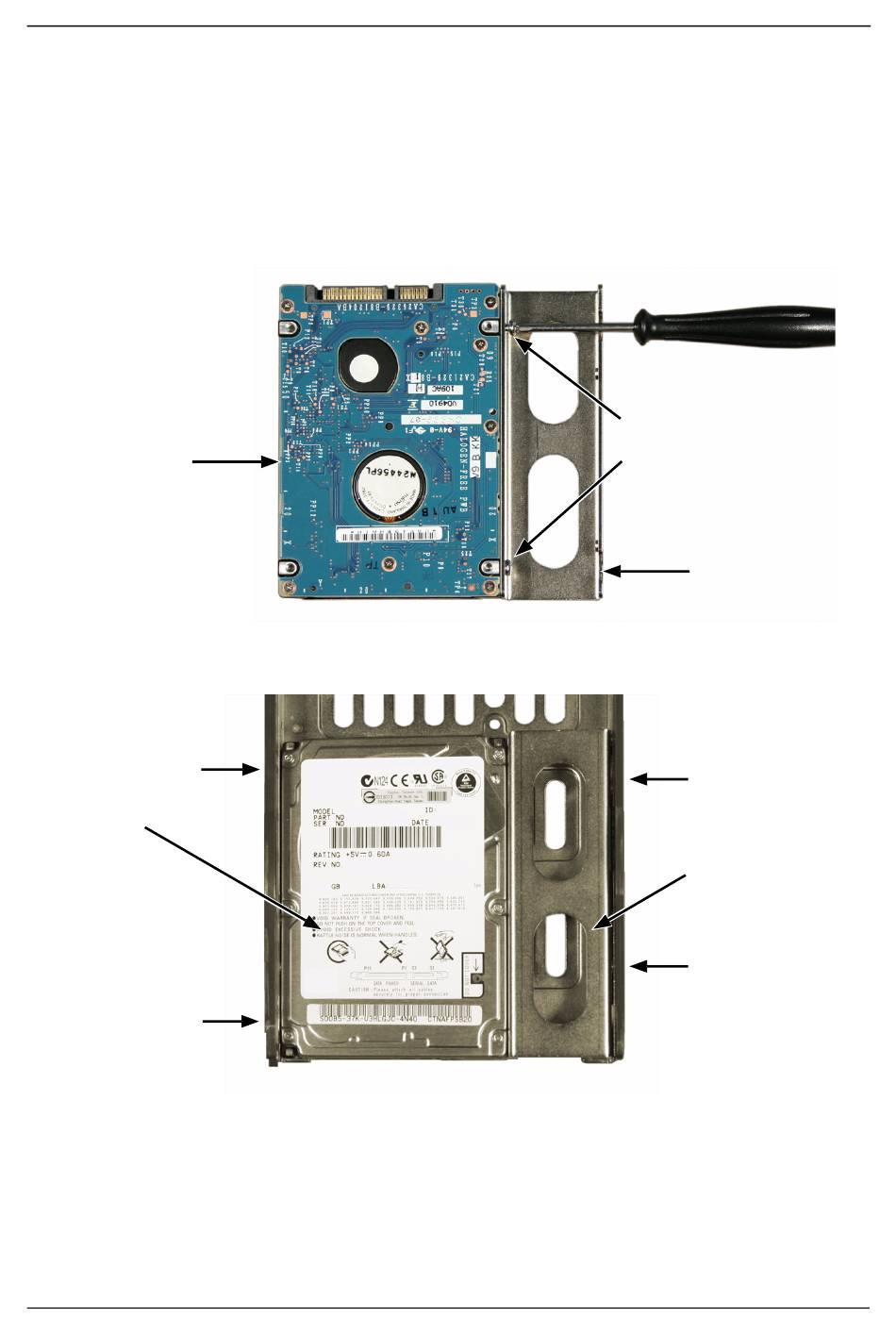

Figure 9. 2.5-inch disk drive and mounting bracket
Disk drive
Figure 10.Drive carrier mounting screw locations
Disk drive
mounting screw
Disk drive
Disk drive
mounting screw
Note: The bracket screws are larger than disk drive screws.
12
Task 3: Installing Disk Drives
Disk drive
mounting screws
Mounting
bracket
Bracket
mounting screw
Mounting
bracket
Bracket
mounting screw
