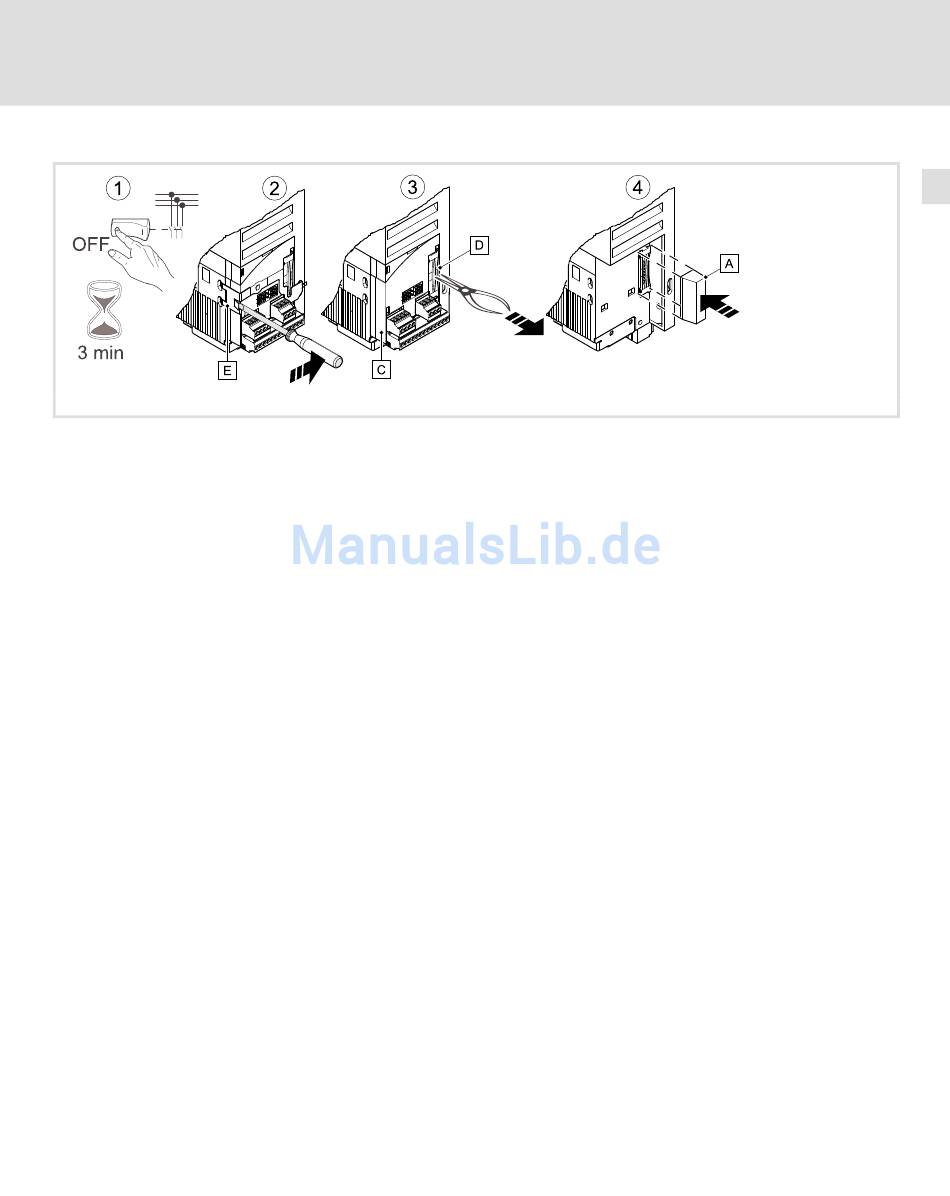

Dismounting
1. Disconnect the drive controller from mains and wait at least 3 minutes!
2. To unlatch the circlip 4, position the screwdriver between the circlip and the function module
and press it to the right. Then remove the circlip 4.
3. Grasp the bar of the plug connector 3 using tongs and unplug the plug connector together
with the function module 2.
4. Fit the FIF cover 0 onto the FIF interface.
EDK82EV222 DE/EN/FR 13.0
Extensions for automation
Mounting and dismounting function modules
