Connection of Pneumatic Power Supply

The pneumatic power supply for the printhead mechanics has to be made available a minimum continuous pressure of 4 - 6
bars in front of the pressure regulator. The maximum pressure in front of the pressure regulator is 7 bars and 4 bars after the
pressure regulator.
NOTICE!
A pneumatic power supply of 4 bars is recommended.
Please observe the following notes:
•
The compressed-air has to be dry and oil free.
•
The supplied pressure regulator with manometer is to connect with a plastic tube Ø 8 mm via a plugging bolting to the
pneumatic power supply. It is necessary to make a connection between the pressure regulator and the print mechanics via
a plastic tube Ø 8 mm.
•
Position pressure regulator as near as possible to the print mechanics.
•
The pressure regulator is only to operate in the direction that is indicated on its underside. The direction shows the way of
the streaming air.
•
It is not allowed to bend the plastic tubes.
•
Shortening of the plastic tubes has to be made with a clean right-angled cut without squashing the tube. If necessary use
special tools (available in pneumatic requirements).
•
Please observe a possible short length of the 8 mm plastic tubes.

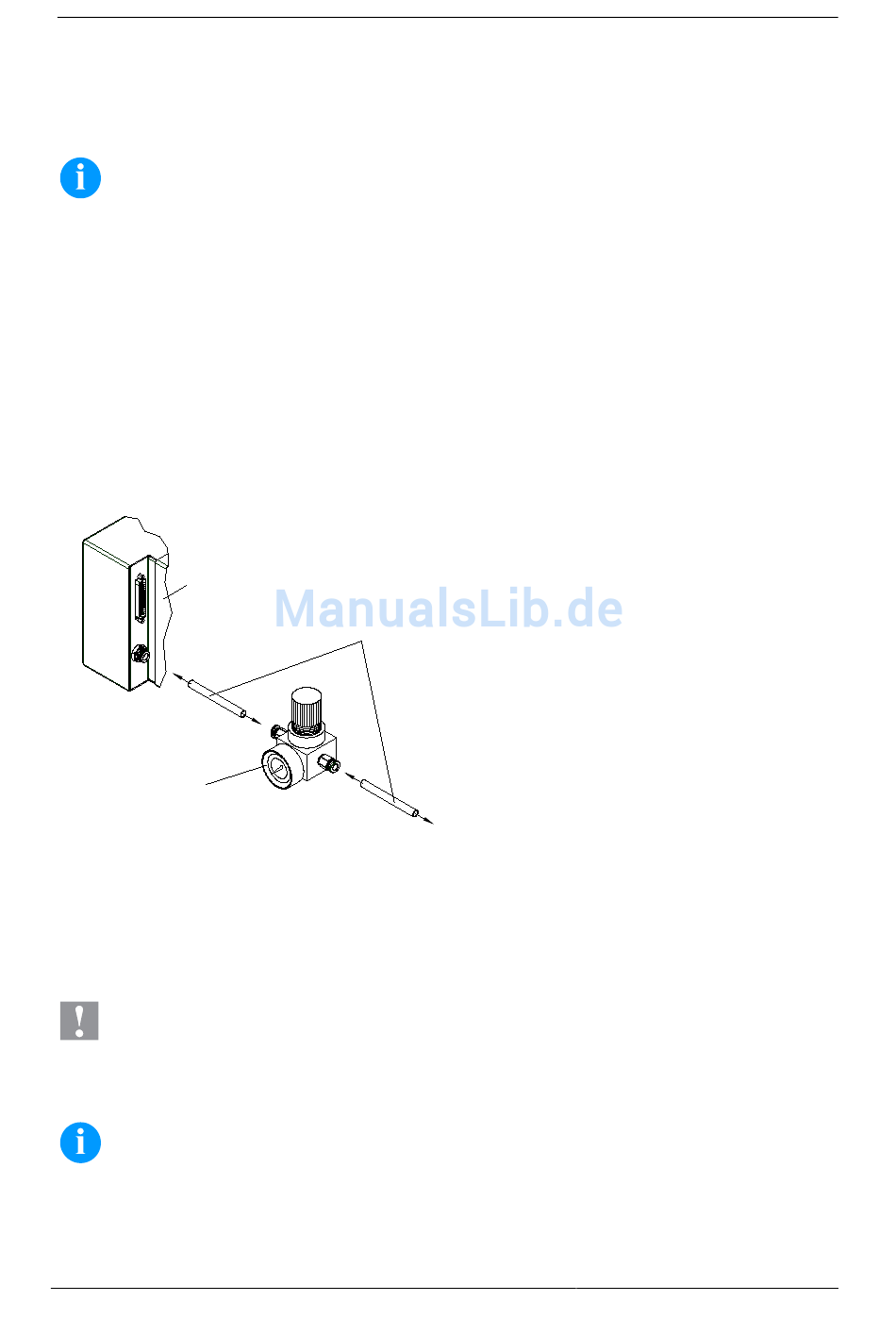

Druckmechanik
Print mechanics
Druckregler mit Manometer
Pressure regulator with manometer

Connecting the Direct Print Module

The direct print module is prepared according to standard for a mains voltage of 230 V / 50-60 Hz. Optionally a mains voltage
can be used by 115 V / 50-60 Hz. The set mains voltage is mentionned on the type plate.
CAUTION!
The direct print module can be damaged by undefined switch-on currents.
⇒
Set de power switch to '0' before plugging in the direct print module.
⇒
Insert power cable into power connection socket.
⇒
Insert plug of power cable into a grounded electrical outlet.
NOTICE!
Insufficient or missing grounding can cause faults during operation.
Ensure that all computers and connection cables connected to the direct print module are grounded.
⇒
Connect direct print module to computer or network with a suitable cable.
110
Pneumatikschlauch
Pneumatic tube 8x1
Druckluftversorgung
Pneumatic power supply
min. 4 bar, max. 7 bar
