Unpack the Direct Print Module

⇒
Lift the direct print module out of the box.
⇒
Check the direct print module for transport damages.
⇒
Remove foam transportation safeguards near the printhead.
⇒
Check delivery for completeness.

Scope of Delivery

•
Print mechanics.
•
Control unit.
•
Power cable.
•
Connection cable.
•
Mini controller.
NOTICE!
Retain original packaging for subsequent transport.
Installation of Print Mechanics at Machines (Installation with Mounting Frame)
At the bottom of the print mechanics are two M8 threads that can be used to fasten the print mechanics.
Please observe the following conditions:
•
The maximum thread engagement of the M8 threads is 10 mm.
•

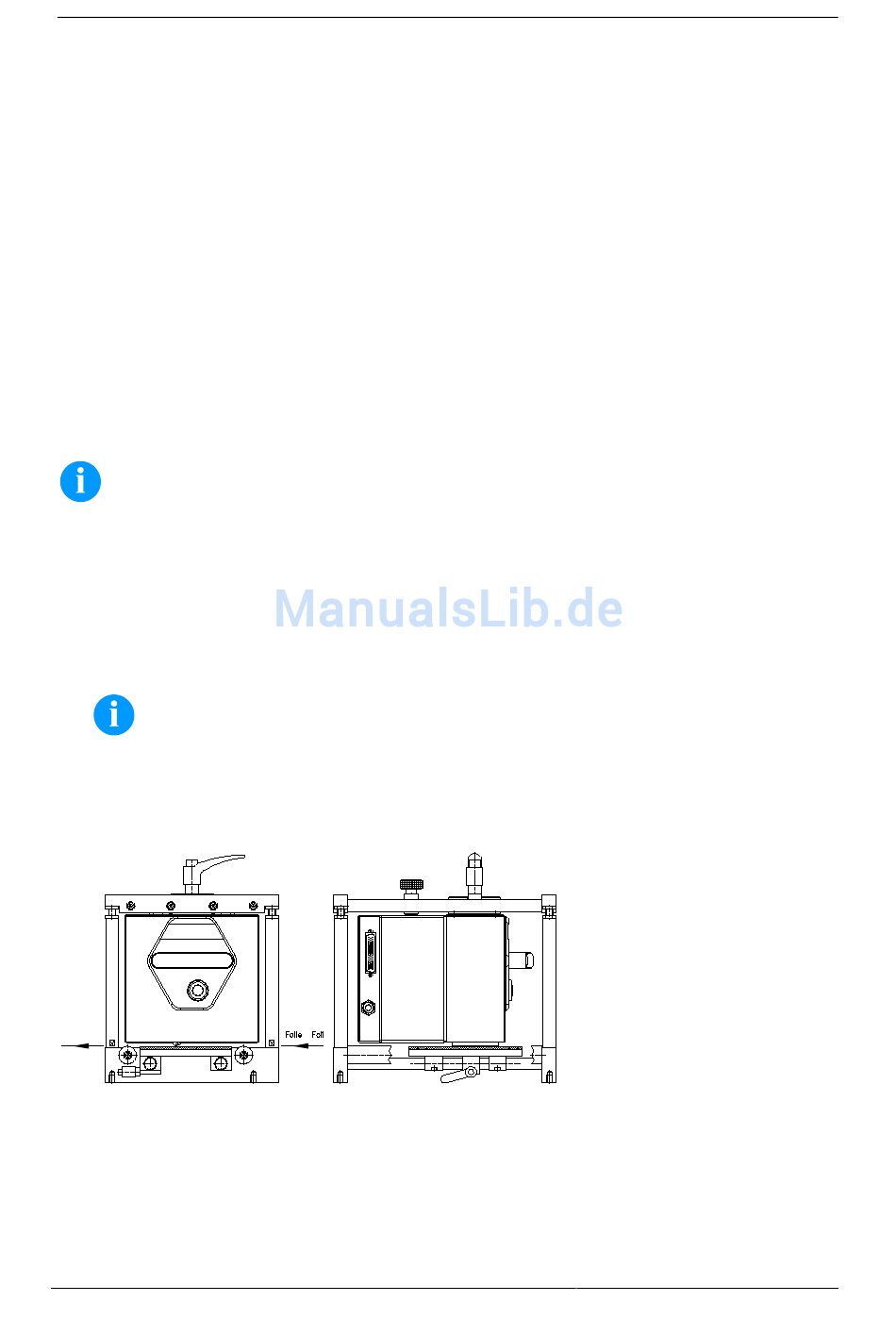

The print mechanics has to be installed with a distance from printhead to brake stator of 1...2.5 mm (see illustration).
NOTICE!
A distance of 2 mm is recommended.
•
The best print results can be received if the silicon of printing roll consists of a hardness of approx. 60 ± 5 Shore A
(average value of roughness Ra ≥ 3,2 mm).
•
The print surface has to be installed parallel to the linear movement of print unit and the focal line of printhead.
Discrepancies to the focal line and cavities in the print surface can lead to an inferior print quality at these positions.
Installation of Print Mechanics at Machines (Installation without Mounting Frame)
In case the machine is used without mounting frame, then it is possible to fix the print module from the top with four M6 screws.
The maximum thread engagement of the M6 threads is 6 mm.
•
Manometer.
•
Pneumatic tube.
•
Push-on connector.
•
I/O accessories (female connectors for
I/O, I/O 24 cable)
•
1 transfer ribbon roll.
•
Empty core, mounted on transfer ribbon
rewinder.
•
Cleaning foil for printhead.
•
Documentation.
•
CD with printer drivers.
