Quick Guide for VLT Micro FC 51
For further details on mounting of the decoupling plate, please see instruction MI.02.BX.YY.
Step 1: First, mount the earth wires to earth terminal.
Step 2: Mount mains supply to terminals L1/L, L2 and L3/N (3-phase) or
L1/L and L3/N (single-phase) and tighten.
Step 3: Connect motor to terminals U, V and W.

1.1.15. Control Terminals

All control cable terminals are located underneath the terminal cover in
front of the frequency converter. Remove the terminal cover using a
screwdriver.
The illustration below shows all control terminals of the frequency converter. Applying Start (term. 18) and an analog reference (term. 53 or 60) make
the frequency converter run.

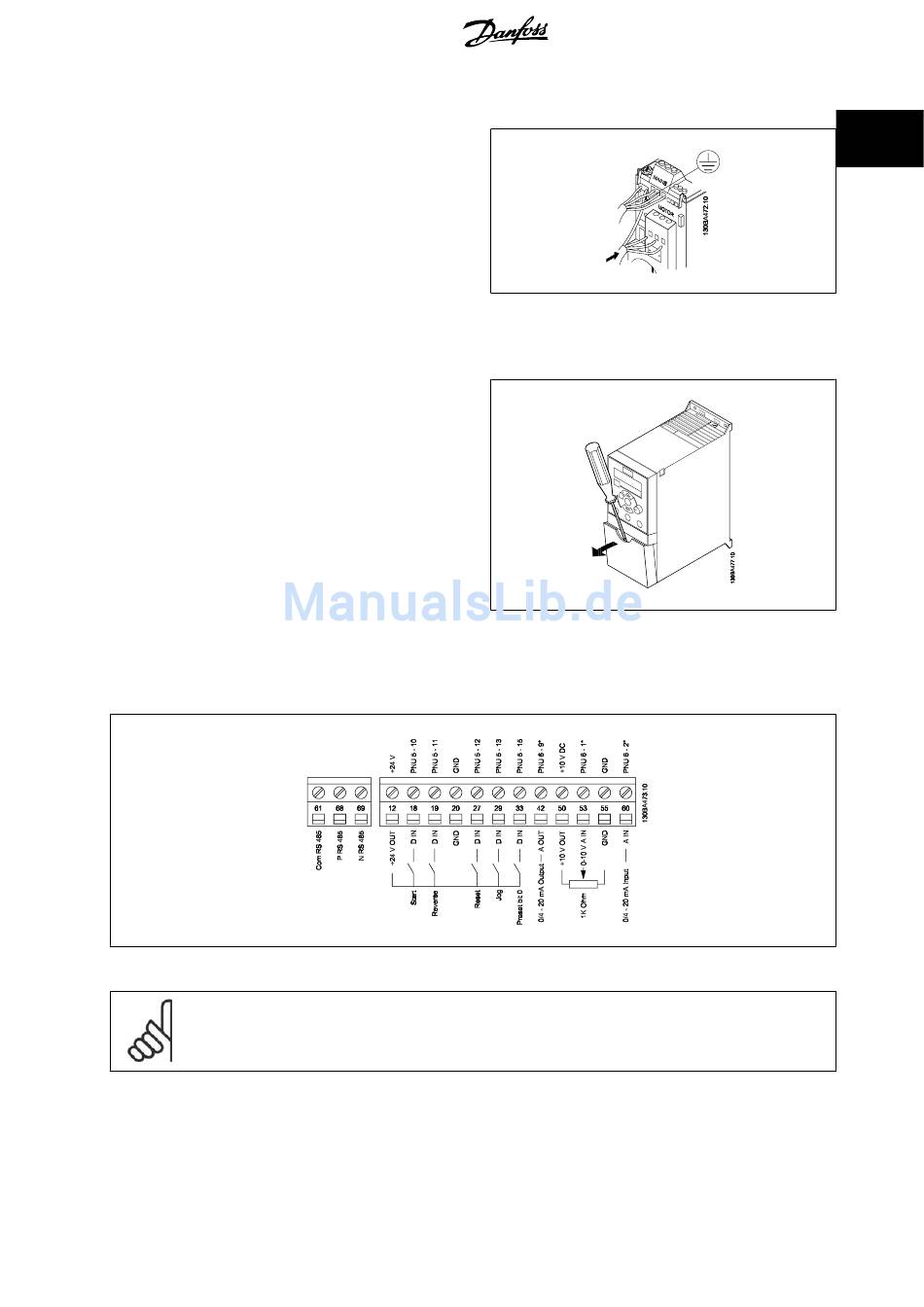

Illustration 1.4: Overview of control terminals in PNP-configuration and factory setting.
NB!
Do not operate switches with power on the frequency converter.
Parameter 6-19 must be set according to Switch 4 position.
Illustration 1.2: Mounting of earth cable, mains and motor wires.
Illustration 1.3: Removing terminal cover.
®
MG.02.B4.83 - VLT is a registered Danfoss trademark
1. Quick Guide
