1.1.17. Load sharing/Brake
Use 6.3 mm insulated Faston Plugs designed for high voltage for DC (Load Sharing and brake).
Contact Danfoss or see instruction no. MI.50.Nx.02 for load sharing and instruction no. MI.90.Fx.02 for brake.
Load sharing: Connect terminals UDC- and UDC/BR+.
Brake: Connect terminals BR- and UDC/BR+.
Note that voltage levels of up to 850 V DC may occur between terminals
UDC+/BR+ and UDC-. Not short circuit protected.
1.1.18. Programming with LCP

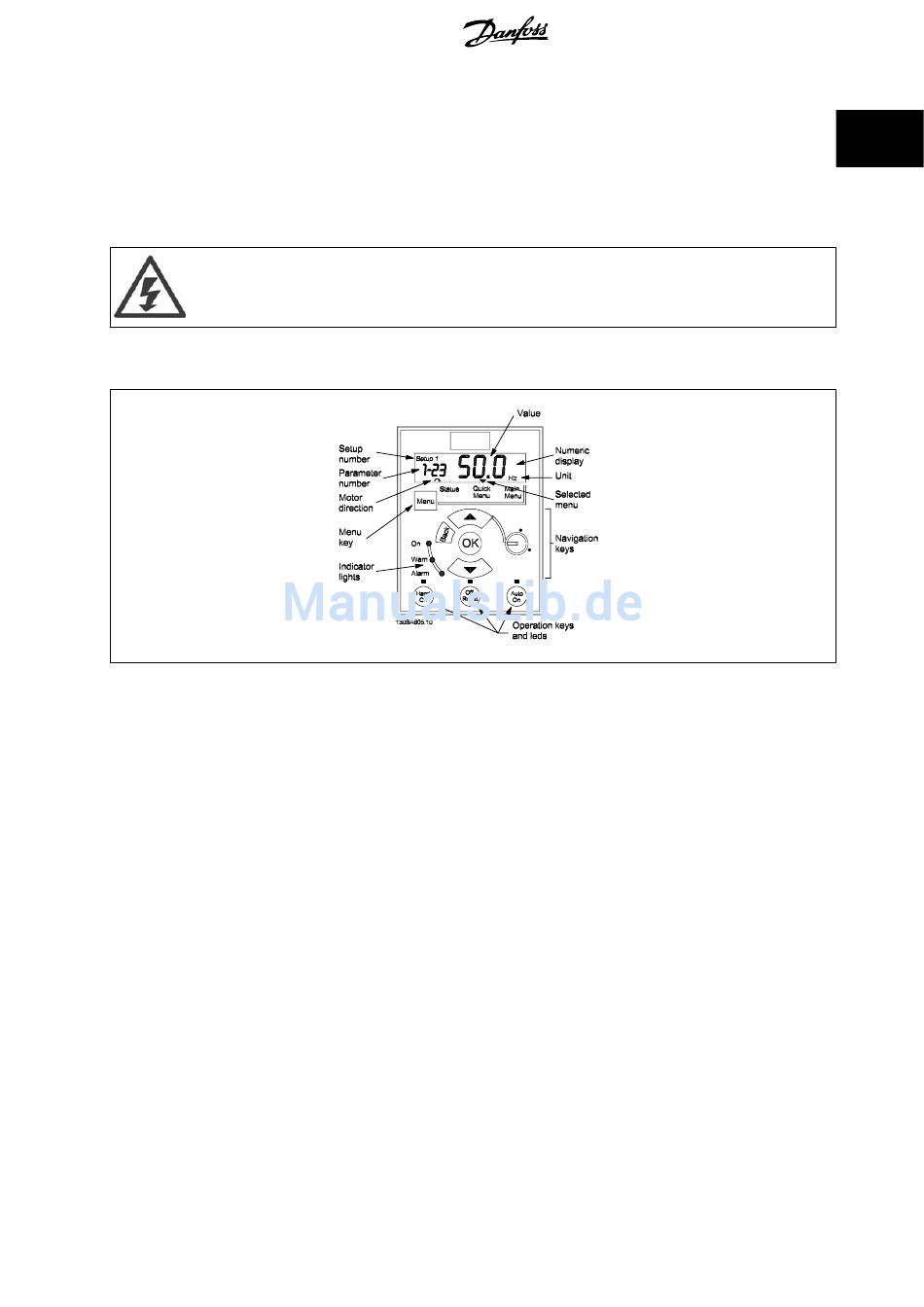

Illustration 1.7: Description of LCP buttons and display
Use the [MENU] key to select one of the following menus:
Status Menu:
For readouts only.
Quick Menu:
For access to Quick Menus 1 and 2, respectively.
Main Menu:
For access to all parameters.
For detailed information on programming, please see
Guide
, MG02CXYY.
Navigation Keys:
[Back]: For moving to the previous step or layer in the navigation structure.
▲ ▼
Arrows [ ] [ ]: For manoeuvring between parameter groups, parameters and within parameters.
[OK]: For selecting a parameter and for accepting changes to parameter settings.
Operation Keys:
A yellow light above the operation keys indicates the active key.
[Hand on]: Starts the motor and enables control of the frequency converter via the LCP.
[Off/Reset]: The motor stops except in alarm mode. In that case the motor will be reset.
Programming
®
