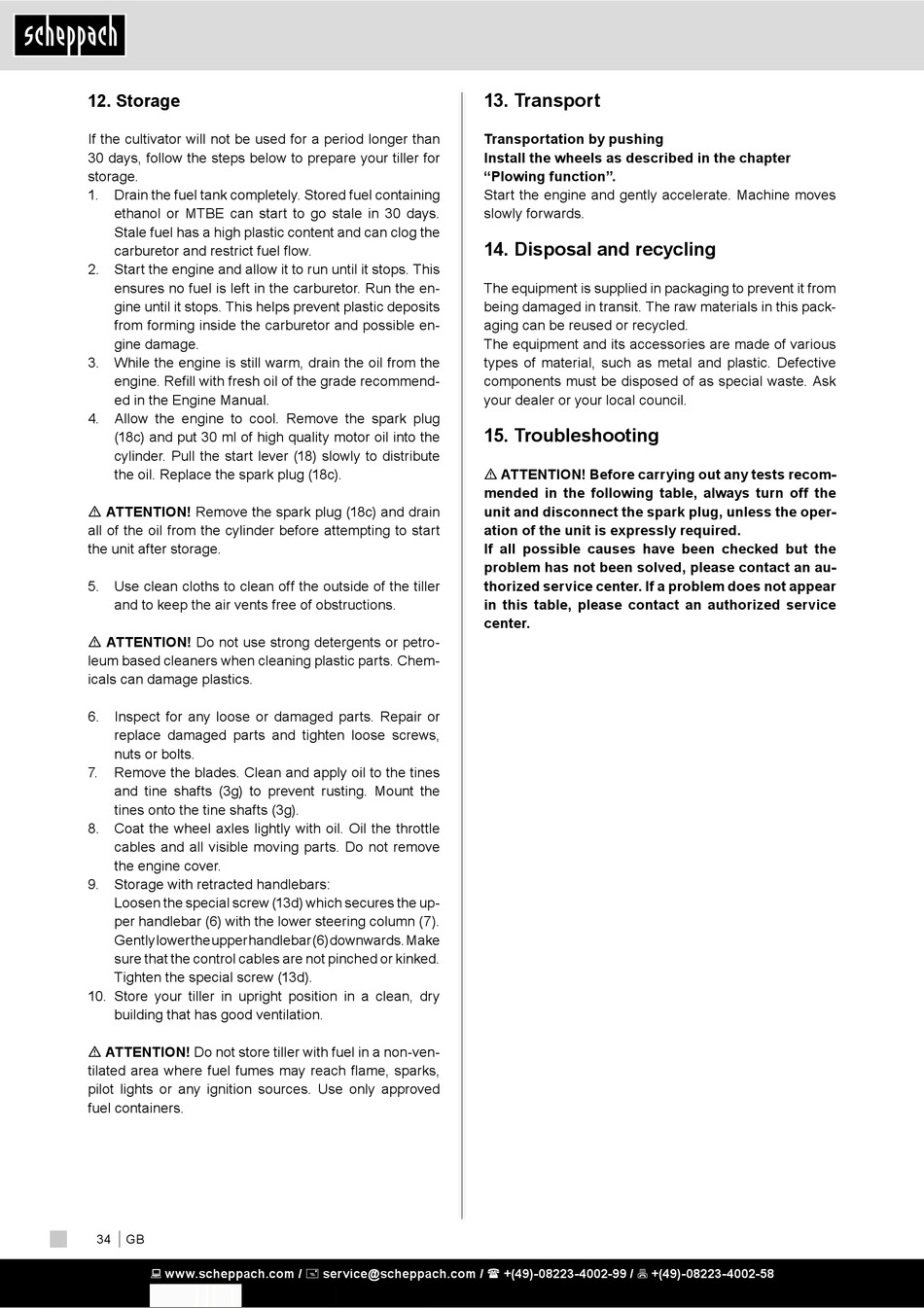

12. Storage
If the cultivator will not be used for a period longer than
30 days, follow the steps below to prepare your tiller for
storage.
1. Drain the fuel tank completely. Stored fuel containing
ethanol or MTBE can start to go stale in 30 days.
Stale fuel has a high plastic content and can clog the
carburetor and restrict fuel flow.
2. Start the engine and allow it to run until it stops. This
ensures no fuel is left in the carburetor. Run the en-
gine until it stops. This helps prevent plastic deposits
from forming inside the carburetor and possible en-
gine damage.
3. While the engine is still warm, drain the oil from the
engine. Refill with fresh oil of the grade recommend-
ed in the Engine Manual.
4. Allow the engine to cool. Remove the spark plug
(18c) and put 30 ml of high quality motor oil into the
cylinder. Pull the start lever (18) slowly to distribute
the oil. Replace the spark plug (18c).
m ATTENTION! Remove the spark plug (18c) and drain
all of the oil from the cylinder before attempting to start
the unit after storage.
5. Use clean cloths to clean off the outside of the tiller
and to keep the air vents free of obstructions.
m ATTENTION! Do not use strong detergents or petro-
leum based cleaners when cleaning plastic parts. Chem-
icals can damage plastics.
6. Inspect for any loose or damaged parts. Repair or
replace damaged parts and tighten loose screws,
nuts or bolts.
7. Remove the blades. Clean and apply oil to the tines
and tine shafts (3g) to prevent rusting. Mount the
tines onto the tine shafts (3g).
8. Coat the wheel axles lightly with oil. Oil the throttle
cables and all visible moving parts. Do not remove
the engine cover.
9. Storage with retracted handlebars:
Loosen the special screw (13d) which secures the up-
per handlebar (6) with the lower steering column (7).
Gently lower the upper handlebar (6) downwards. Make
sure that the control cables are not pinched or kinked.
Tighten the special screw (13d).
10. Store your tiller in upright position in a clean, dry
building that has good ventilation.
m ATTENTION! Do not store tiller with fuel in a non-ven-
tilated area where fuel fumes may reach flame, sparks,
pilot lights or any ignition sources. Use only approved
fuel containers.
34 GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
13. Transport
Transportation by pushing
Install the wheels as described in the chapter
"Plowing function".
Start the engine and gently accelerate. Machine moves
slowly forwards.

14. Disposal and recycling

The equipment is supplied in packaging to prevent it from
being damaged in transit. The raw materials in this pack-
aging can be reused or recycled.
The equipment and its accessories are made of various
types of material, such as metal and plastic. Defective
components must be disposed of as special waste. Ask
your dealer or your local council.

15. Troubleshooting

m ATTENTION! Before carrying out any tests recom-
mended in the following table, always turn off the
unit and disconnect the spark plug, unless the oper-
ation of the unit is expressly required.
If all possible causes have been checked but the
problem has not been solved, please contact an au-
thorized service center. If a problem does not appear
in this table, please contact an authorized service
center.
