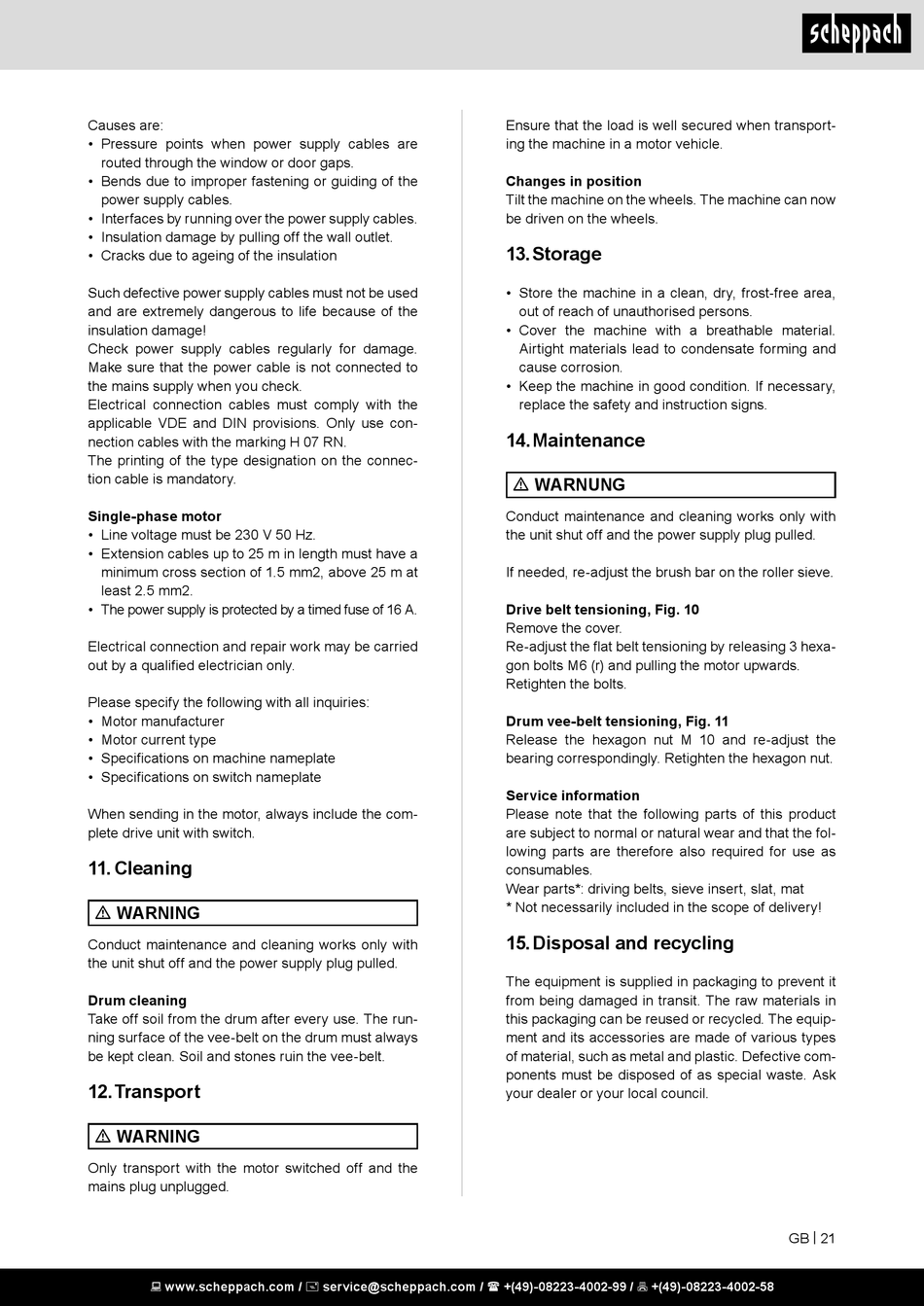

Causes are:
• Pressure points when power supply cables are
routed through the window or door gaps.
• Bends due to improper fastening or guiding of the
power supply cables.
• Interfaces by running over the power supply cables.
• Insulation damage by pulling off the wall outlet.
• Cracks due to ageing of the insulation
Such defective power supply cables must not be used
and are extremely dangerous to life because of the
insulation damage!
Check power supply cables regularly for damage.
Make sure that the power cable is not connected to
the mains supply when you check.
Electrical connection cables must comply with the
applicable VDE and DIN provisions. Only use con-
nection cables with the marking H 07 RN.
The printing of the type designation on the connec-
tion cable is mandatory.
Single-phase motor
• Line voltage must be 230 V 50 Hz.
• Extension cables up to 25 m in length must have a
minimum cross section of 1.5 mm2, above 25 m at
least 2.5 mm2.
• The power supply is protected by a timed fuse of 16 A.
Electrical connection and repair work may be carried
out by a qualified electrician only.
Please specify the following with all inquiries:
• Motor manufacturer
• Motor current type
• Specifications on machine nameplate
• Specifications on switch nameplate
When sending in the motor, always include the com-
plete drive unit with switch.

11. Cleaning

m WARNING
Conduct maintenance and cleaning works only with
the unit shut off and the power supply plug pulled.
Drum cleaning
Take off soil from the drum after every use. The run-
ning surface of the vee-belt on the drum must always
be kept clean. Soil and stones ruin the vee-belt.

12. Transport

m WARNING
Only transport with the motor switched off and the
mains plug unplugged.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Ensure that the load is well secured when transport-
ing the machine in a motor vehicle.
Changes in position
Tilt the machine on the wheels. The machine can now
be driven on the wheels.

13. Storage

• Store the machine in a clean, dry, frost-free area,
out of reach of unauthorised persons.
• Cover the machine with a breathable material.
Airtight materials lead to condensate forming and
cause corrosion.
• Keep the machine in good condition. If necessary,
replace the safety and instruction signs.

14. Maintenance

m WARNUNG
Conduct maintenance and cleaning works only with
the unit shut off and the power supply plug pulled.
If needed, re-adjust the brush bar on the roller sieve.
Drive belt tensioning, Fig. 10
Remove the cover.
Re-adjust the flat belt tensioning by releasing 3 hexa-
gon bolts M6 (r) and pulling the motor upwards.
Retighten the bolts.
Drum vee-belt tensioning, Fig. 11
Release the hexagon nut M 10 and re-adjust the
bearing correspondingly. Retighten the hexagon nut.
Service information
Please note that the following parts of this product
are subject to normal or natural wear and that the fol-
lowing parts are therefore also required for use as
consumables.
Wear parts*: driving belts, sieve insert, slat, mat
* Not necessarily included in the scope of delivery!

15. Disposal and recycling

The equipment is supplied in packaging to prevent it
from being damaged in transit. The raw materials in
this packaging can be reused or recycled. The equip-
ment and its accessories are made of various types
of material, such as metal and plastic. Defective com-
ponents must be disposed of as special waste. Ask
your dealer or your local council.
