Configuration of the hydraulic diagram of the Hydro Insert
BY A SPECIALIZED TECHNICIAN
Before starting the Hydro Insert, it is necessary to configure the hydraulic scheme on which we want to
work. The Hydro Insert is set up to receive the clean contact of an external thermostat (open / closed,
the thermostat must not give tension to the back. If the thermostat carries voltage to the board causing
faults, the warranty is void), two temperature probes and a motorized valve . All these components can
be connected via the terminal board on the back of the Hydro Insert.

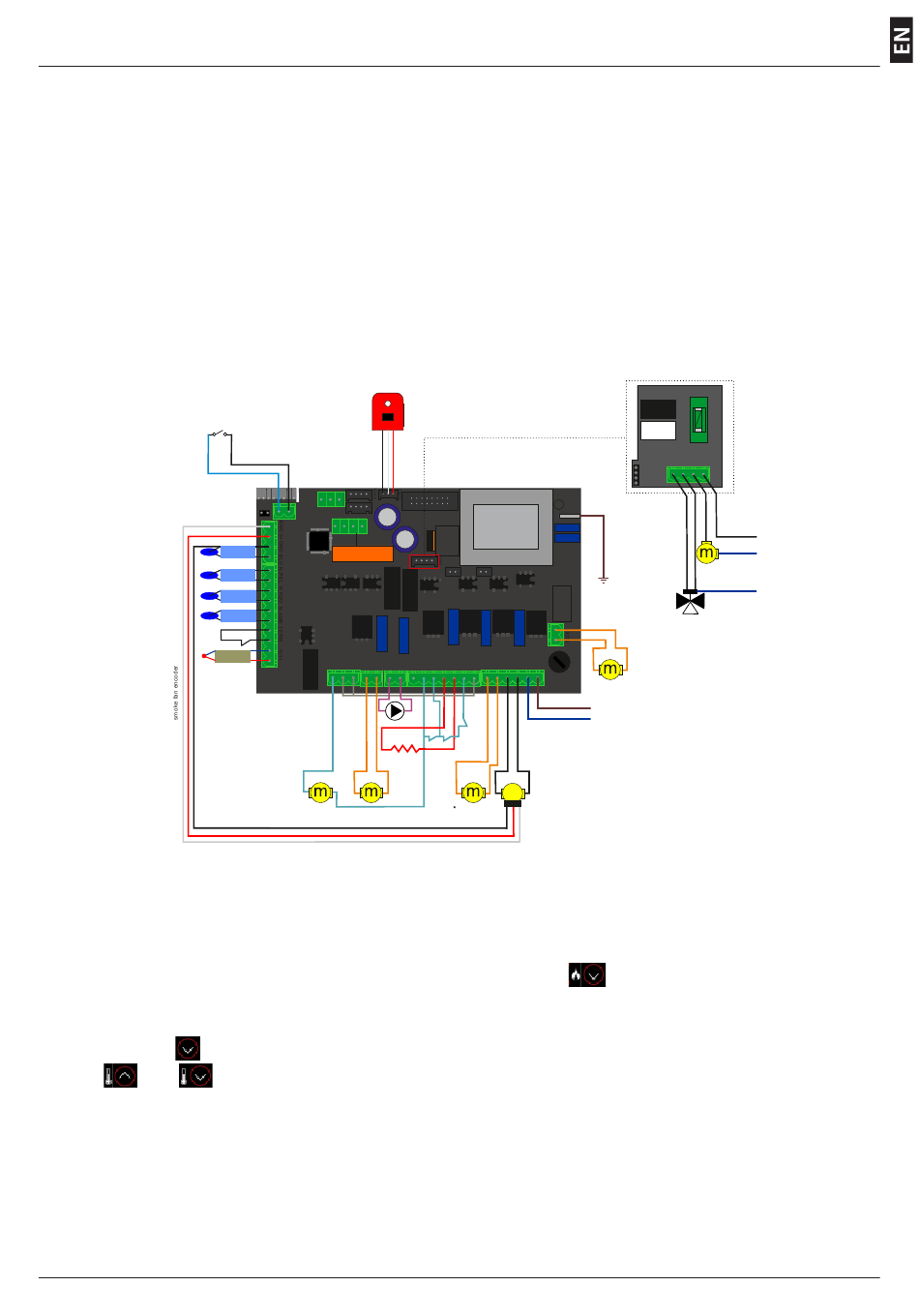

Electrical diagram of the control unit
1.0
By a specialized technician:
To configure the hydraulic diagram, press the SET key and then
menu with the power key. PPress the SET key again to enter the menu and enter the access key in
possession of only the technician authorized by the manufacturer. Confirm the password using the set
key and the key of the power go to menu 3 "hydraulic scheme". Confirm with the SET key and
use the and
For end user:
It is possible to change the Hydro Insert operating principle according to the season by choosing between
summer and winter. To select the season press SET, the season selection will appear on the display. Then
press the set key again and select the season with keys 1 and 2. Once selected, press the ON / OFF key
to exit.
The choice of season changes the Hydro Insert operation, see next chapter.
GENERAL ELECTRICAL
CONNECTION DIAGRAM IDRO BOILERS
PRESSURE
TRANSDUCER
SANITARY
CONNECTION
+12V H GND
Cn11
JTAG
SERIALE
AUX IN
Cn24
Cn15
Cn17
Cn9
Cn21
upper puffer
CONSOLLE AND
EXTRA ACCESSORIES
NTC S2 probe
CONVEYED WAVES
lower puffer
NTC S1 probe
boiler
NTC probe
room
NTC probe
ext.
thermostat
-
smoke
TCJ probe Cn6
Cn19
+
AUX2 AL3 V2/PO P.B.C N
Cn7
P.B.C.
RESISTANCE
COCHLEA
CLEANER
smoke fan encoder
keys to select the required hydraulic scheme number.
ELECTRIC
BOARD L023
PE
DISPLAY
FUSE
Cn2
Cn16 Cn4 Cn8
N AL1 AL2 ACC COC SCA FUMI N F
SYSTEM 230Vac
ALM
ALC ALF
m
*
ROOM FAN SMOKE FAN
ELECTRIC
BOARD Q055
P2 P3 P4 F
BAFFLE
(OPTIONAL)
GROUND
HEAT SANIT.
SIDE SIDE
3 - WAY
1
COMPACTOR
ALF=general safety thermostat
ALC=pressure switch
ALM=micro switch
* Room fan not provided
scroll to the "Technical settings"
