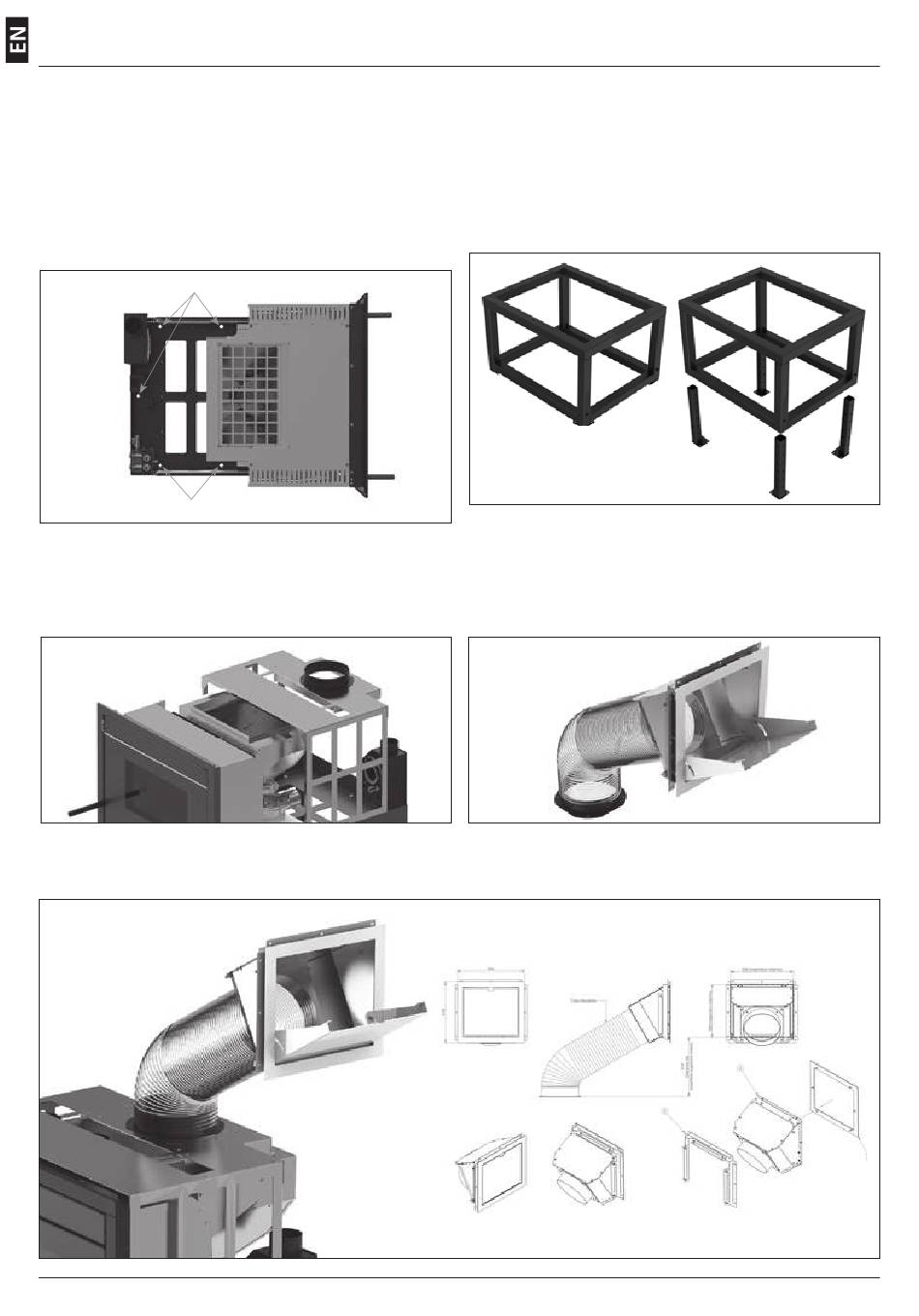

Hydro insert assembly
Hydro Insert fixing
If you have purchased the fireplace insert pedestal,
first you have to fix it to the floor and choose the
height of the legs. Fix the fireplace insert to the
base or to the pedestal using the fixing screws (not
supplied). If the fireplace is already existing,
the side openings for access must be provided.
Fixing screws
Fixing screws
Side loading system (Optional)
The assembly of the side loading system must
be done before the construction of the fireplace
insert coating.
Now fit the side loading tank in the coating and
connect the hose.
10
Pedestal fixing (Optional)
If you have bought the fireplace insert pedestal,
first you have to fix it to the floor and choose the
height of the legs. If you install the lateral load, it
is advisable to keep the minimum size so as not to
have the loading entrance too high.
Connect the flexible hose to the loading tank
present on the tank calculating the useful length
of the pipe with a minimum inclination of 50°.
