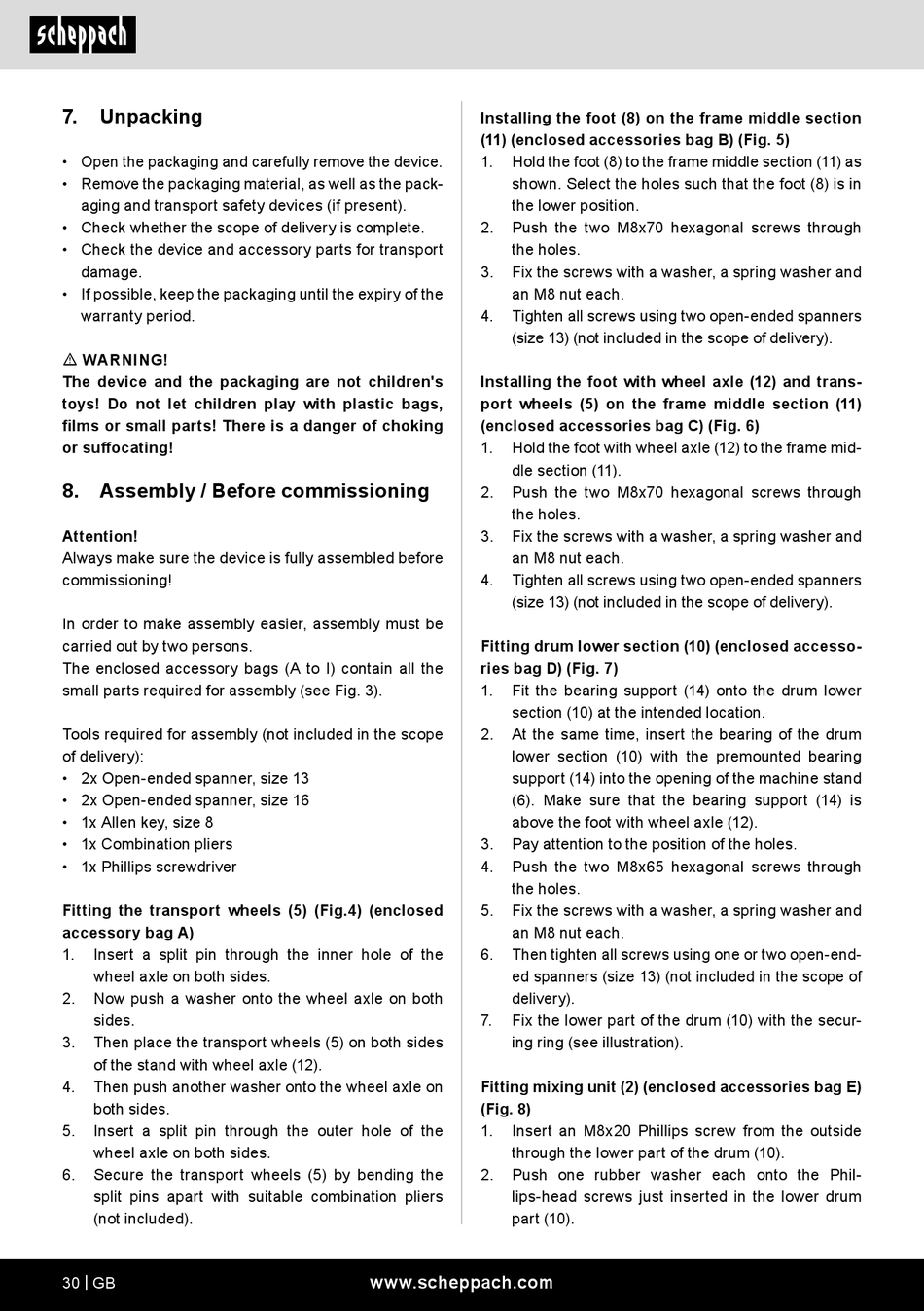

7. Unpacking
• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage.
• If possible, keep the packaging until the expiry of the
warranty period.
m WARNING!
The device and the packaging are not children's
toys! Do not let children play with plastic bags,
films or small parts! There is a danger of choking
or suffocating!
8. Assembly / Before commissioning
Attention!
Always make sure the device is fully assembled before
commissioning!
In order to make assembly easier, assembly must be
carried out by two persons.
The enclosed accessory bags (A to I) contain all the
small parts required for assembly (see Fig. 3).
Tools required for assembly (not included in the scope
of delivery):
• 2x Open-ended spanner, size 13
• 2x Open-ended spanner, size 16
• 1x Allen key, size 8
• 1x Combination pliers
• 1x Phillips screwdriver
Fitting the transport wheels (5) (Fig.4) (enclosed
accessory bag A)
1. Insert a split pin through the inner hole of the
wheel axle on both sides.
2. Now push a washer onto the wheel axle on both
sides.
3. Then place the transport wheels (5) on both sides
of the stand with wheel axle (12).
4. Then push another washer onto the wheel axle on
both sides.
5. Insert a split pin through the outer hole of the
wheel axle on both sides.
6. Secure the transport wheels (5) by bending the
split pins apart with suitable combination pliers
(not included).
30 | GB
Installing the foot (8) on the frame middle section
(11) (enclosed accessories bag B) (Fig. 5)
1. Hold the foot (8) to the frame middle section (11) as
shown. Select the holes such that the foot (8) is in
the lower position.
2. Push the two M8x70 hexagonal screws through
the holes.
3. Fix the screws with a washer, a spring washer and
an M8 nut each.
4. Tighten all screws using two open-ended spanners
(size 13) (not included in the scope of delivery).
Installing the foot with wheel axle (12) and trans-
port wheels (5) on the frame middle section (11)
(enclosed accessories bag C) (Fig. 6)
1. Hold the foot with wheel axle (12) to the frame mid-
dle section (11).
2. Push the two M8x70 hexagonal screws through
the holes.
3. Fix the screws with a washer, a spring washer and
an M8 nut each.
4. Tighten all screws using two open-ended spanners
(size 13) (not included in the scope of delivery).
Fitting drum lower section (10) (enclosed accesso-
ries bag D) (Fig. 7)
1. Fit the bearing support (14) onto the drum lower
section (10) at the intended location.
2. At the same time, insert the bearing of the drum
lower section (10) with the premounted bearing
support (14) into the opening of the machine stand
(6). Make sure that the bearing support (14) is
above the foot with wheel axle (12).
3. Pay attention to the position of the holes.
4. Push the two M8x65 hexagonal screws through
the holes.
5. Fix the screws with a washer, a spring washer and
an M8 nut each.
6. Then tighten all screws using one or two open-end-
ed spanners (size 13) (not included in the scope of
delivery).
7. Fix the lower part of the drum (10) with the secur-
ing ring (see illustration).
Fitting mixing unit (2) (enclosed accessories bag E)
(Fig. 8)
1. Insert an M8x20 Phillips screw from the outside
through the lower part of the drum (10).
2. Push one rubber washer each onto the Phil-
lips-head screws just inserted in the lower drum
part (10).
