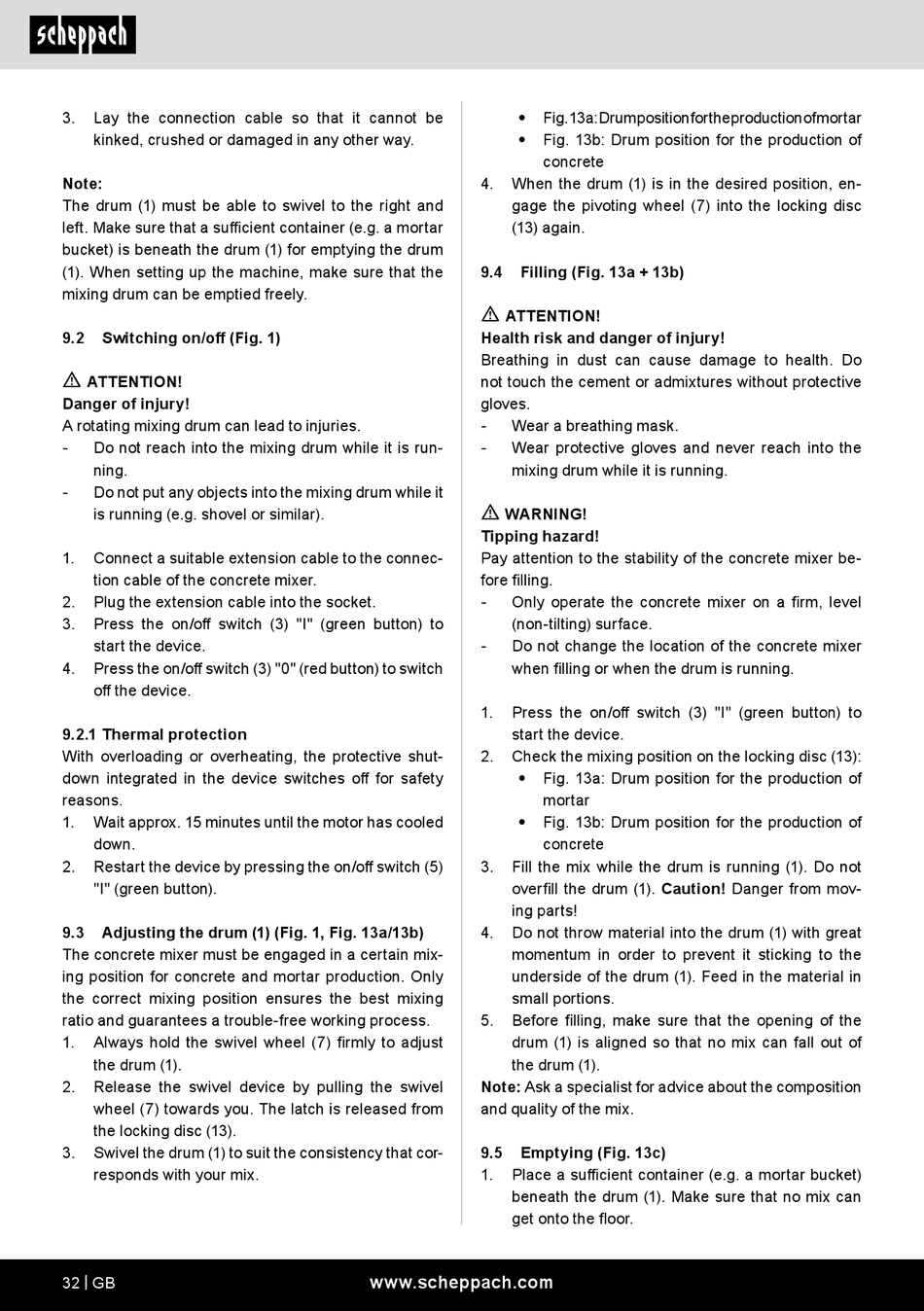

3. Lay the connection cable so that it cannot be
kinked, crushed or damaged in any other way.
Note:
The drum (1) must be able to swivel to the right and
left. Make sure that a sufficient container (e.g. a mortar
bucket) is beneath the drum (1) for emptying the drum
(1). When setting up the machine, make sure that the
mixing drum can be emptied freely.
9.2 Switching on/off (Fig. 1)
m
ATTENTION!
Danger of injury!
A rotating mixing drum can lead to injuries.
-
Do not reach into the mixing drum while it is run-
ning.
-
Do not put any objects into the mixing drum while it
is running (e.g. shovel or similar).
1. Connect a suitable extension cable to the connec-
tion cable of the concrete mixer.
2. Plug the extension cable into the socket.
3. Press the on/off switch (3) "I" (green button) to
start the device.
4. Press the on/off switch (3) "0" (red button) to switch
off the device.
9.2.1 Thermal protection
With overloading or overheating, the protective shut-
down integrated in the device switches off for safety
reasons.
1. Wait approx. 15 minutes until the motor has cooled
down.
2. Restart the device by pressing the on/off switch (5)
"I" (green button).
9.3 Adjusting the drum (1) (Fig. 1, Fig. 13a/13b)
The concrete mixer must be engaged in a certain mix-
ing position for concrete and mortar production. Only
the correct mixing position ensures the best mixing
ratio and guarantees a trouble-free working process.
1. Always hold the swivel wheel (7) firmly to adjust
the drum (1).
2. Release the swivel device by pulling the swivel
wheel (7) towards you. The latch is released from
the locking disc (13).
3. Swivel the drum (1) to suit the consistency that cor-
responds with your mix.
32 | GB
•
Fig. 13a: Drum position for the production of mortar
•
Fig. 13b: Drum position for the production of
concrete
4. When the drum (1) is in the desired position, en-
gage the pivoting wheel (7) into the locking disc
(13) again.
9.4 Filling (Fig. 13a + 13b)
m
ATTENTION!
Health risk and danger of injury!
Breathing in dust can cause damage to health. Do
not touch the cement or admixtures without protective
gloves.
-
Wear a breathing mask.
-
Wear protective gloves and never reach into the
mixing drum while it is running.
m
WARNING!
Tipping hazard!
Pay attention to the stability of the concrete mixer be-
fore filling.
-
Only operate the concrete mixer on a firm, level
(non-tilting) surface.
-
Do not change the location of the concrete mixer
when filling or when the drum is running.
1. Press the on/off switch (3) "I" (green button) to
start the device.
2. Check the mixing position on the locking disc (13):
•
Fig. 13a: Drum position for the production of
mortar
•
Fig. 13b: Drum position for the production of
concrete
3. Fill the mix while the drum is running (1). Do not
overfill the drum (1). Caution! Danger from mov-
ing parts!
4. Do not throw material into the drum (1) with great
momentum in order to prevent it sticking to the
underside of the drum (1). Feed in the material in
small portions.
5. Before filling, make sure that the opening of the
drum (1) is aligned so that no mix can fall out of
the drum (1).
Note: Ask a specialist for advice about the composition
and quality of the mix.
9.5 Emptying (Fig. 13c)
1. Place a sufficient container (e.g. a mortar bucket)
beneath the drum (1). Make sure that no mix can
get onto the floor.
