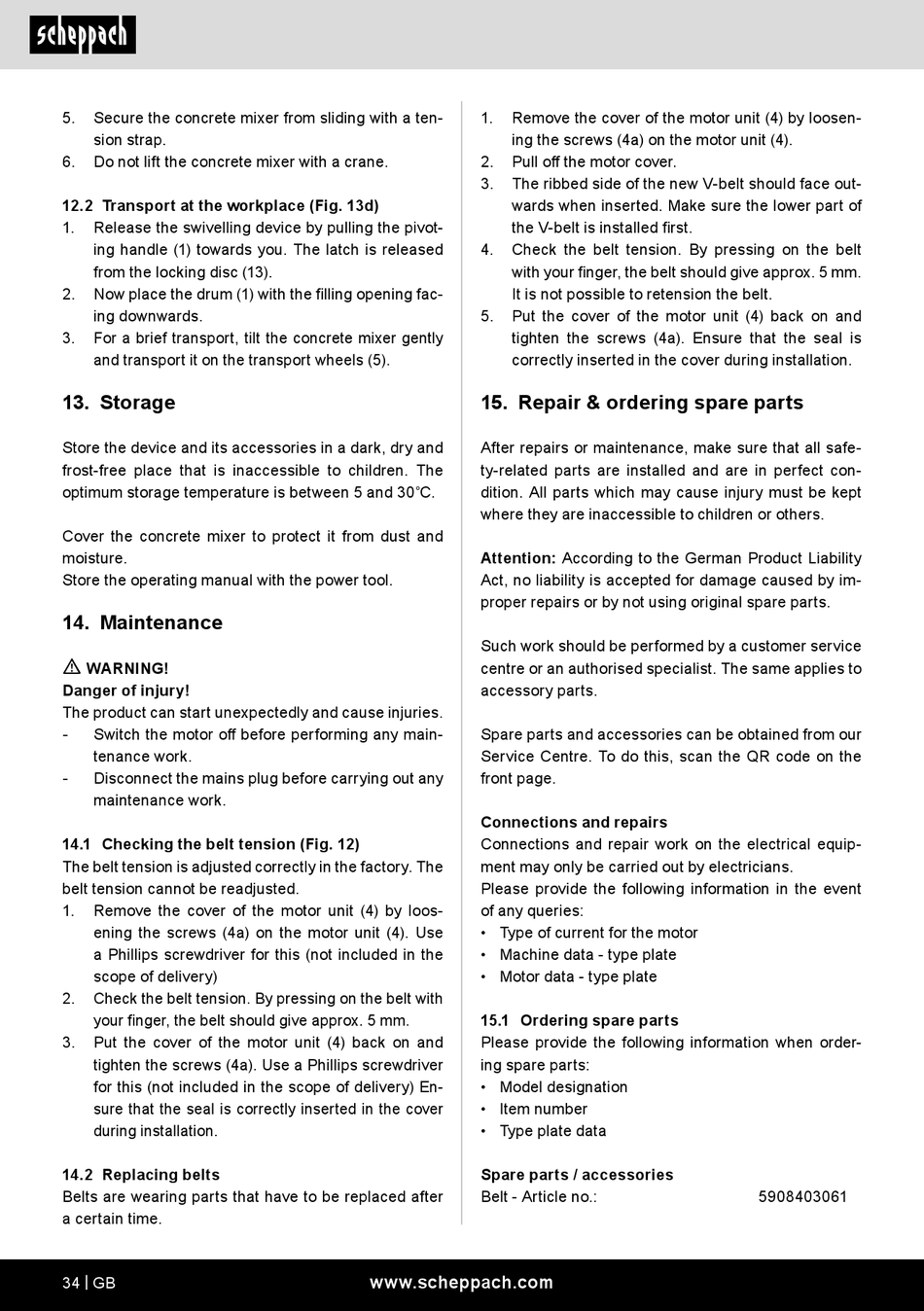

5. Secure the concrete mixer from sliding with a ten-
sion strap.
6. Do not lift the concrete mixer with a crane.
12.2 Transport at the workplace (Fig. 13d)
1. Release the swivelling device by pulling the pivot-
ing handle (1) towards you. The latch is released
from the locking disc (13).
2. Now place the drum (1) with the filling opening fac-
ing downwards.
3. For a brief transport, tilt the concrete mixer gently
and transport it on the transport wheels (5).
13. Storage
Store the device and its accessories in a dark, dry and
frost-free place that is inaccessible to children. The
optimum storage temperature is between 5 and 30˚C.
Cover the concrete mixer to protect it from dust and
moisture.
Store the operating manual with the power tool.
14. Maintenance
m
WARNING!
Danger of injury!
The product can start unexpectedly and cause injuries.
-
Switch the motor off before performing any main-
tenance work.
-
Disconnect the mains plug before carrying out any
maintenance work.
14.1 Checking the belt tension (Fig. 12)
The belt tension is adjusted correctly in the factory. The
belt tension cannot be readjusted.
1. Remove the cover of the motor unit (4) by loos-
ening the screws (4a) on the motor unit (4). Use
a Phillips screwdriver for this (not included in the
scope of delivery)
2. Check the belt tension. By pressing on the belt with
your finger, the belt should give approx. 5 mm.
3. Put the cover of the motor unit (4) back on and
tighten the screws (4a). Use a Phillips screwdriver
for this (not included in the scope of delivery) En-
sure that the seal is correctly inserted in the cover
during installation.
14.2 Replacing belts
Belts are wearing parts that have to be replaced after
a certain time.
34 | GB
1. Remove the cover of the motor unit (4) by loosen-
ing the screws (4a) on the motor unit (4).
2. Pull off the motor cover.
3. The ribbed side of the new V-belt should face out-
wards when inserted. Make sure the lower part of
the V-belt is installed first.
4. Check the belt tension. By pressing on the belt
with your finger, the belt should give approx. 5 mm.
It is not possible to retension the belt.
5. Put the cover of the motor unit (4) back on and
tighten the screws (4a). Ensure that the seal is
correctly inserted in the cover during installation.
15. Repair & ordering spare parts
After repairs or maintenance, make sure that all safe-
ty-related parts are installed and are in perfect con-
dition. All parts which may cause injury must be kept
where they are inaccessible to children or others.
Attention: According to the German Product Liability
Act, no liability is accepted for damage caused by im-
proper repairs or by not using original spare parts.
Such work should be performed by a customer service
centre or an authorised specialist. The same applies to
accessory parts.
Spare parts and accessories can be obtained from our
Service Centre. To do this, scan the QR code on the
front page.
Connections and repairs
Connections and repair work on the electrical equip-
ment may only be carried out by electricians.
Please provide the following information in the event
of any queries:
• Type of current for the motor
• Machine data - type plate
• Motor data - type plate
15.1 Ordering spare parts
Please provide the following information when order-
ing spare parts:
• Model designation
• Item number
• Type plate data
Spare parts / accessories
Belt - Article no.:
www.scheppach.com
5908403061
