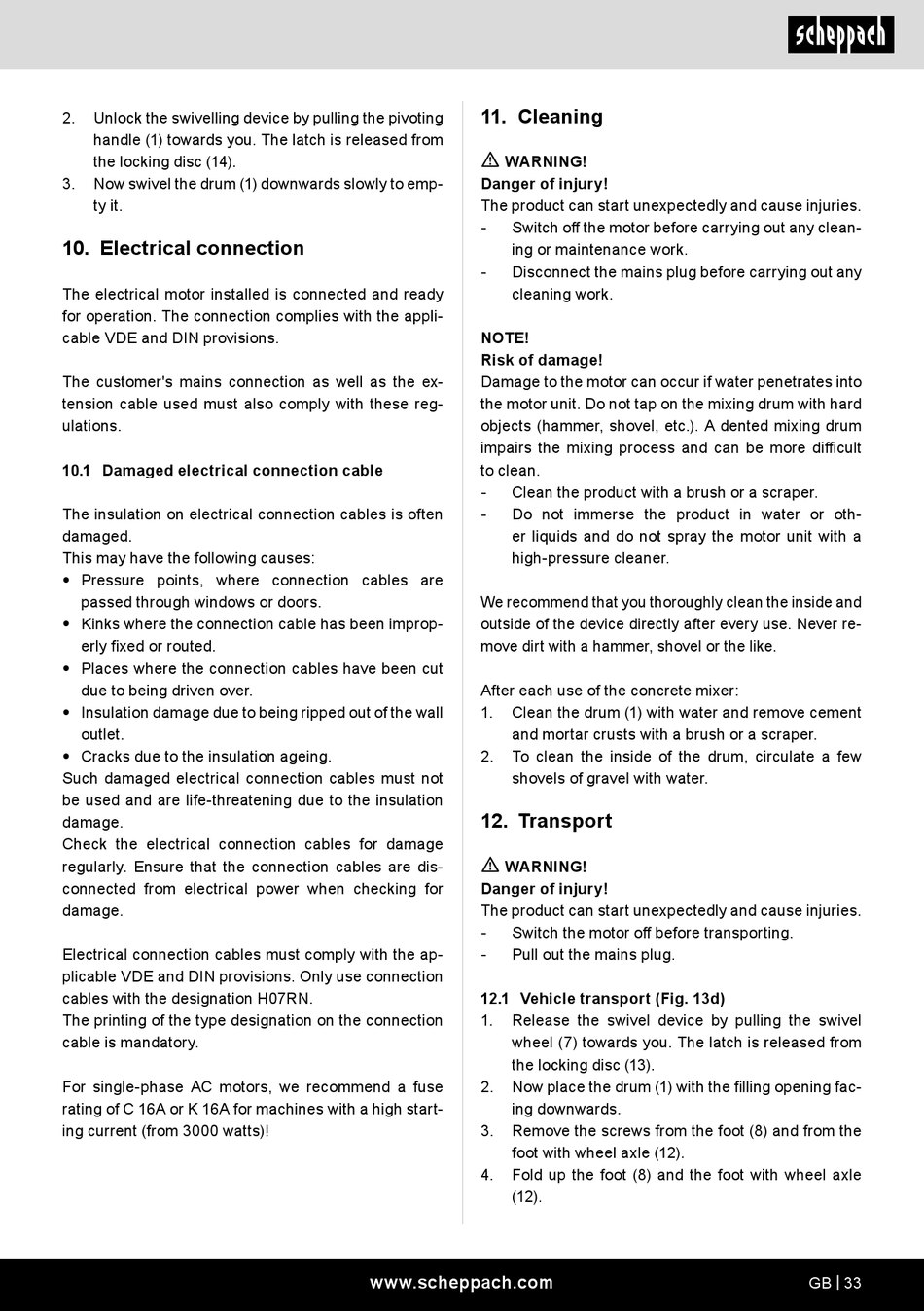

Scheppach MIX125 Originalbetriebsanleitung Seite 33

2. Unlock the swivelling device by pulling the pivoting
handle (1) towards you. The latch is released from
the locking disc (14).
3. Now swivel the drum (1) downwards slowly to emp-
ty it.
10. Electrical connection
The electrical motor installed is connected and ready
for operation. The connection complies with the appli-
cable VDE and DIN provisions.
The customer's mains connection as well as the ex-
tension cable used must also comply with these reg-
ulations.
10.1 Damaged electrical connection cable
The insulation on electrical connection cables is often
damaged.
This may have the following causes:
• Pressure points, where connection cables are
passed through windows or doors.
• Kinks where the connection cable has been improp-
erly fixed or routed.
• Places where the connection cables have been cut
due to being driven over.
• Insulation damage due to being ripped out of the wall
outlet.
• Cracks due to the insulation ageing.
Such damaged electrical connection cables must not
be used and are life-threatening due to the insulation
damage.
Check the electrical connection cables for damage
regularly. Ensure that the connection cables are dis-
connected from electrical power when checking for
damage.
Electrical connection cables must comply with the ap-
plicable VDE and DIN provisions. Only use connection
cables with the designation H07RN.
The printing of the type designation on the connection
cable is mandatory.
For single-phase AC motors, we recommend a fuse
rating of C 16A or K 16A for machines with a high start-
ing current (from 3000 watts)!
11. Cleaning
m
WARNING!
Danger of injury!
The product can start unexpectedly and cause injuries.
-
Switch off the motor before carrying out any clean-
ing or maintenance work.
-
Disconnect the mains plug before carrying out any
cleaning work.
NOTE!
Risk of damage!
Damage to the motor can occur if water penetrates into
the motor unit. Do not tap on the mixing drum with hard
objects (hammer, shovel, etc.). A dented mixing drum
impairs the mixing process and can be more difficult
to clean.
-
Clean the product with a brush or a scraper.
-
Do not immerse the product in water or oth-
er liquids and do not spray the motor unit with a
high-pressure cleaner.
We recommend that you thoroughly clean the inside and
outside of the device directly after every use. Never re-
move dirt with a hammer, shovel or the like.
After each use of the concrete mixer:
1. Clean the drum (1) with water and remove cement
and mortar crusts with a brush or a scraper.
2. To clean the inside of the drum, circulate a few
shovels of gravel with water.
12. Transport
m
WARNING!
Danger of injury!
The product can start unexpectedly and cause injuries.
-
Switch the motor off before transporting.
-
Pull out the mains plug.
12.1 Vehicle transport (Fig. 13d)
1. Release the swivel device by pulling the swivel
wheel (7) towards you. The latch is released from
the locking disc (13).
2. Now place the drum (1) with the filling opening fac-
ing downwards.
3. Remove the screws from the foot (8) and from the
foot with wheel axle (12).
4. Fold up the foot (8) and the foot with wheel axle
(12).
