‧ 8CH

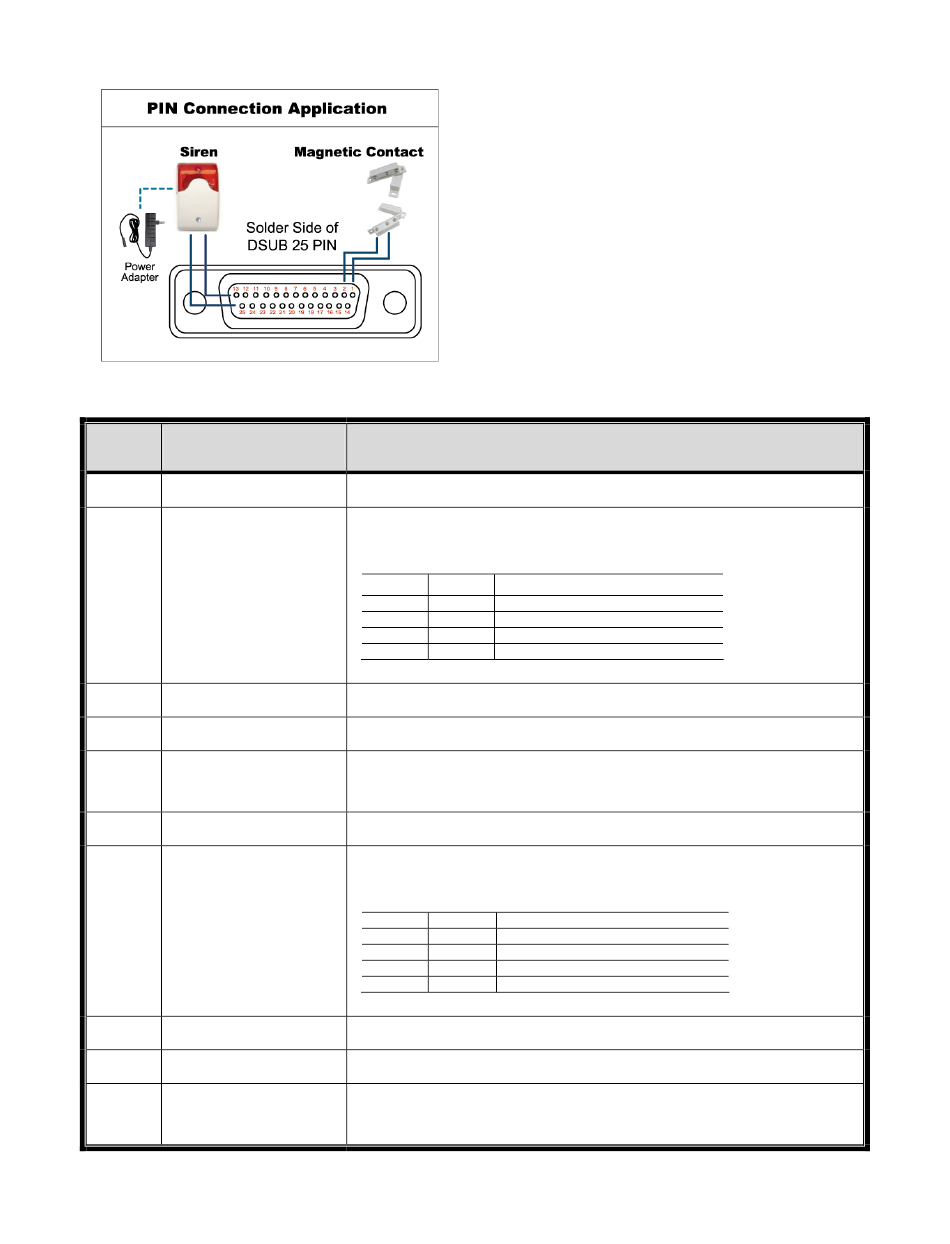

* The D-Sub connector shown above is optional.
PIN
FUNCTION
1
GND
2~5
ALARM INPUT
6 ~ 11
PIN OFF
12
RS485-A
13
EXTERNAL ALARM NO.
14
PIN OFF
15~18
ALARM INPUT
19~23
PIN OFF
24
RS485-B
EXTERNAL ALARM
25
COM
All manuals and user guides at all-guides.com
Siren:
When the DVR is triggered by alarm or motion, the
COM connects with NO and the siren with strobe
starts wailing and flashing.
Magnetic Contact:
When the magnetic contact is opened, the alarm
will be triggered and the recording is on.
GROUND
Connect ALARM INPUT (PIN 2 – 5) and GND (PIN 1) connector with
wires. Once an alarm is triggered, the DVR will start recording and the
buzzer will be on.
PIN
Alarm
PIN 2
1
PIN 3
3
PIN 4
5
PIN 5
7
*
NA
Under the normal operation, COM disconnects with NO. But when any
alarm is triggered, COM connects with NO.
Attention: The voltage restriction is under DC24V 1A.
NA
Connect ALARM INPUT (PIN 15 – 18) and GND (PIN 1) connector with
wires. Once an alarm is triggered, the DVR will start recording and the
buzzer will be on.
PIN
Alarm
PIN 15
2
PIN 16
4
PIN 17
6
PIN 18
8
*
NA
Under the normal operation, COM disconnects with NO. But when any
alarm is triggered, COM connects with NO.
Attention: The voltage restriction is under DC24V 1A.
74
APPENDIX 6 PIN CONFIGURATION
DESCRIPTION
Corresponding video channel
CH1
CH3
CH5
CH7
Corresponding video channel
CH2
CH4
CH6
CH8
