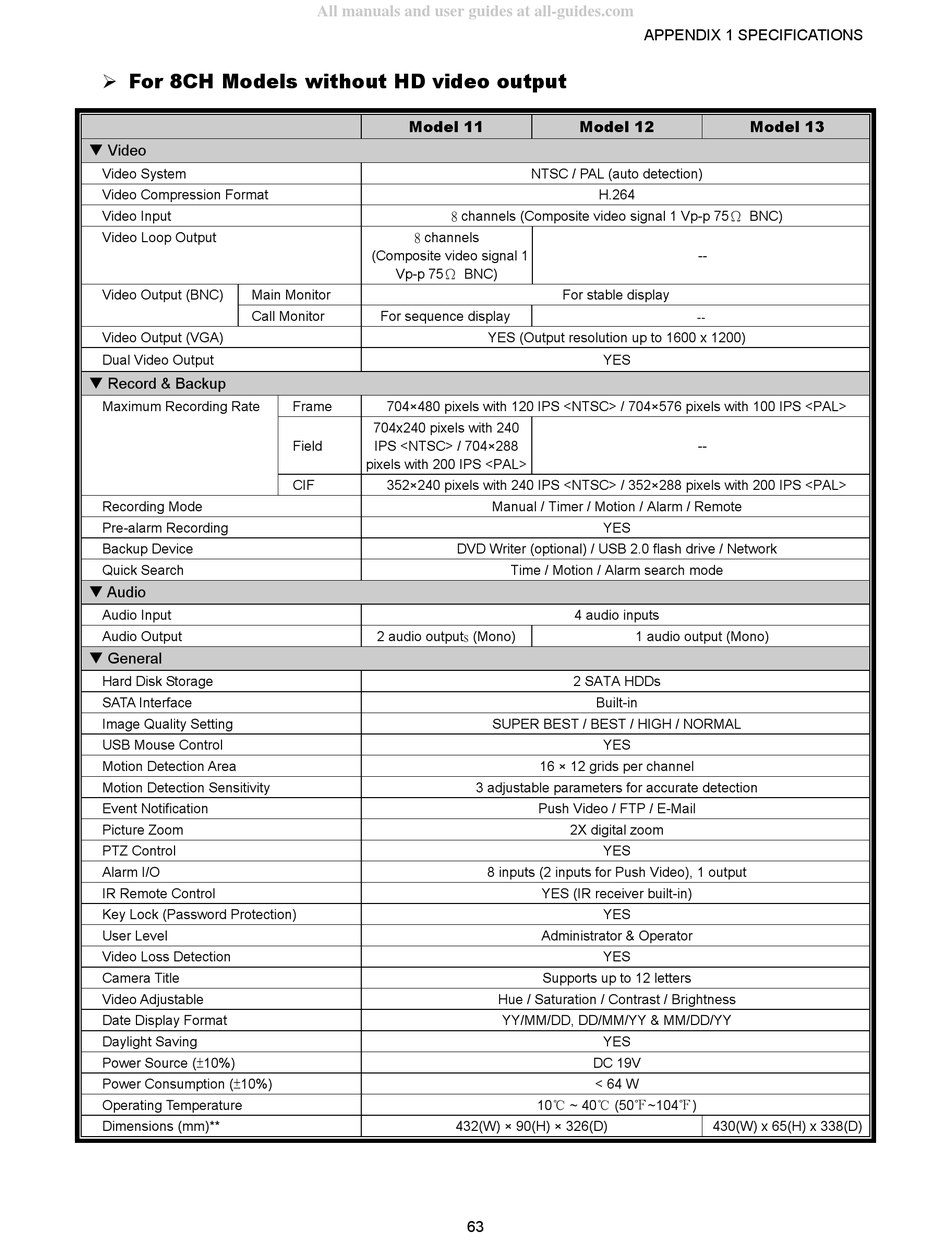

 For 8CH Models without HD video output
 Video
Video System
Video Compression Format
Video Input
Video Loop Output
Video Output (BNC) Main Monitor
Call Monitor
Video Output (VGA)
Dual Video Output
 Record & Backup
Maximum Recording Rate
Recording Mode
Pre-alarm Recording
Backup Device
Quick Search
 Audio
Audio Input
Audio Output
 General
Hard Disk Storage
SATA Interface
Image Quality Setting
USB Mouse Control
Motion Detection Area
Motion Detection Sensitivity
Event Notification
Picture Zoom
PTZ Control
Alarm I/O
IR Remote Control
Key Lock (Password Protection)
User Level
Video Loss Detection
Camera Title
Video Adjustable
Date Display Format
Daylight Saving
Power Source (±10%)
Power Consumption (±10%)
Operating Temperature
Dimensions (mm)**
All manuals and user guides at all-guides.com
Model 11
8 channels (Composite video signal 1 Vp-p 75Ω BNC)
8 channels
(Composite video signal 1
Vp-p 75Ω BNC)
For sequence display
Frame 704×480 pixels with 120 IPS <NTSC> / 704×576 pixels with 100 IPS <PAL>
704x240 pixels with 240
Field IPS <NTSC> / 704×288
pixels with 200 IPS <PAL>
CIF 352×240 pixels with 240 IPS <NTSC> / 352×288 pixels with 200 IPS <PAL>
DVD Writer (optional) / USB 2.0 flash drive / Network
2 audio outputs (Mono)
432(W) × 90(H) × 326(D)
63
APPENDIX 1 SPECIFICATIONS
Model 12
NTSC / PAL (auto detection)
H.264
For stable display
YES (Output resolution up to 1600 x 1200)
YES
Manual / Timer / Motion / Alarm / Remote
YES
Time / Motion / Alarm search mode
4 audio inputs
1 audio output (Mono)
2 SATA HDDs
Built-in
SUPER BEST / BEST / HIGH / NORMAL
YES
16 × 12 grids per channel
3 adjustable parameters for accurate detection
Push Video / FTP / E-Mail
2X digital zoom
YES
8 inputs (2 inputs for Push Video), 1 output
YES (IR receiver built-in)
YES
Administrator & Operator
YES
Supports up to 12 letters
Hue / Saturation / Contrast / Brightness
YY/MM/DD, DD/MM/YY & MM/DD/YY
YES
DC 19V
< 64 W
10℃ ~ 40℃ (50℉~104℉)
Model 13
--
--
--
430(W) x 65(H) x 338(D)
